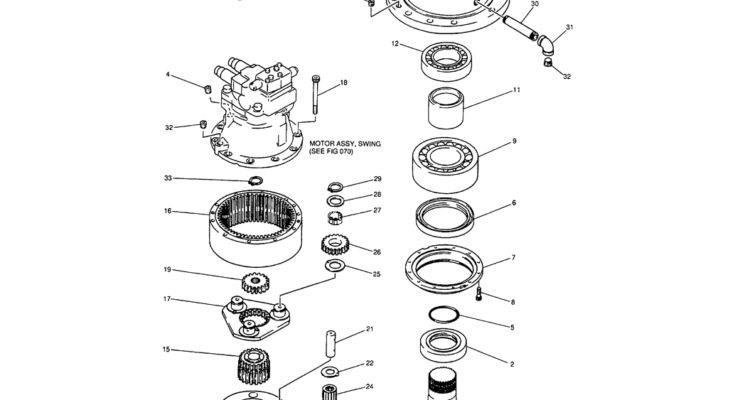

01-018 SWING REDUCTION ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 34 2 ZS83C20020 SCREW Set -- M20x2.50x20mm 33 1 2418R2D22 RING RING, SNAP 32 2 ZE82T12000 PLUG 3/4" PT 31 1 ZG31U12000 ELBOW ELBOW, 90…

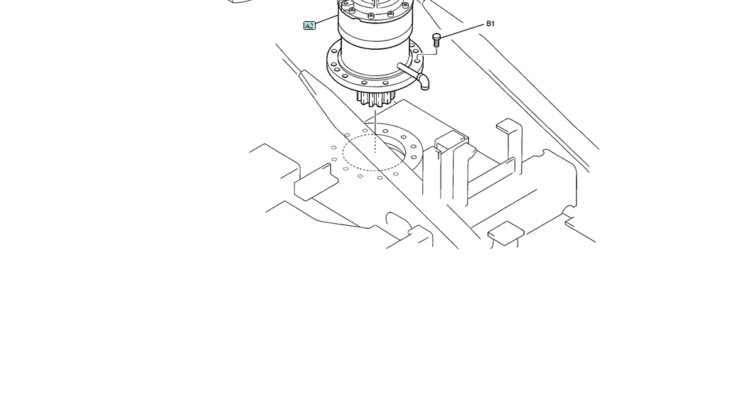

01-017 SWING MOTOR INSTALLATION-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B2 2 PV02B01073D3 CAP 10.7mm Plastic YN32W00006F1 MOTOR INSTAL, SWING A5 1 YN15V00025F3 MOTOR MOTOR ASSY, SWING, Remarks: See CPM YN32W00004F1C MOTO-REDUCTION GEAR Return Number,…

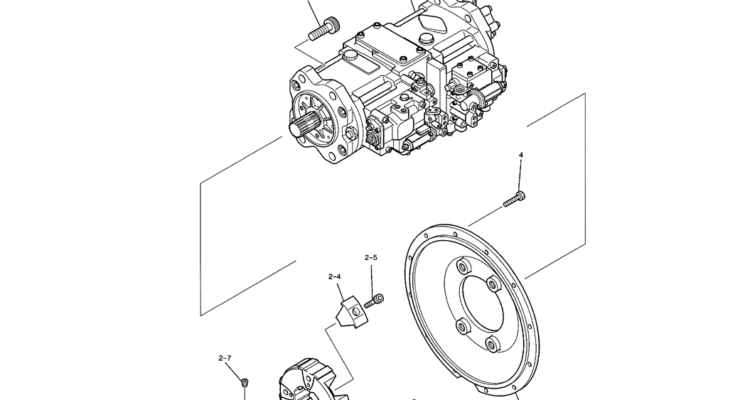

01-016 POWER TAKE-OFF ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 11 ZS18C10030 SCREW M10x1.50x30mm 3 4 ZS23C20055 SCREW M20x2.5x55mm 2-7 2 YN30P01009S007 SCREW SETSCREW, Remarks: (M16X18mm) 2-6 4 ZP26D05010 PIN Roll -- OD 05…

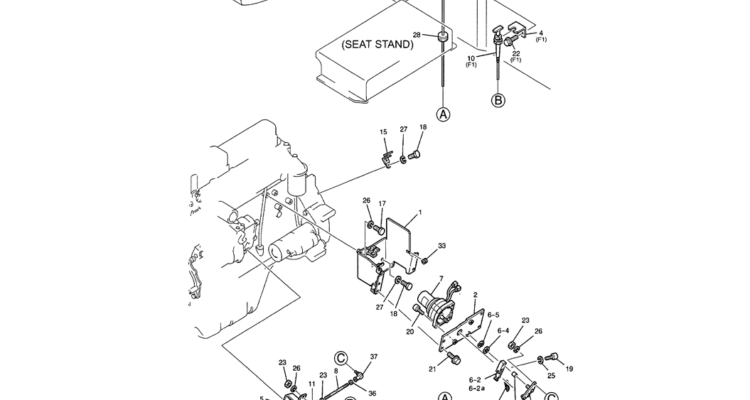

01-015 ENGINE CONTROL ASSEMBLY (YN11M00018F1 & YN11M00018F2)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 37 1 YN11M01013D1 BALL JOINT M08x1.25x36mm Long 36 1 2420T7359 NUT M08x1.25mm -- Left Hand Threads 33 1 YN03M01159P1 GROMMET GROMMET 29…

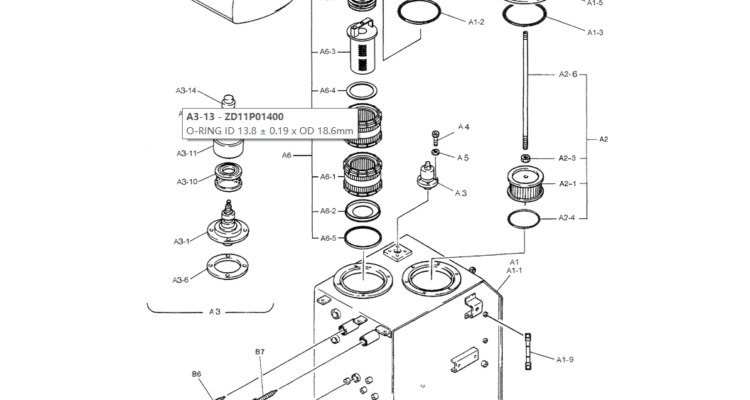

01-014(02) HYDRAULIC TANK ASSEMBLY, (AFTER S/N YQ08U1397)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B5 1 YN33H01052P1 SEAL B4 1 YN52S00023P1 SENSOR Level B3 3 LE33H01017D1 SHIM (1.0) B2 4 ZW13H16000 WASHER ID 17 x OD…

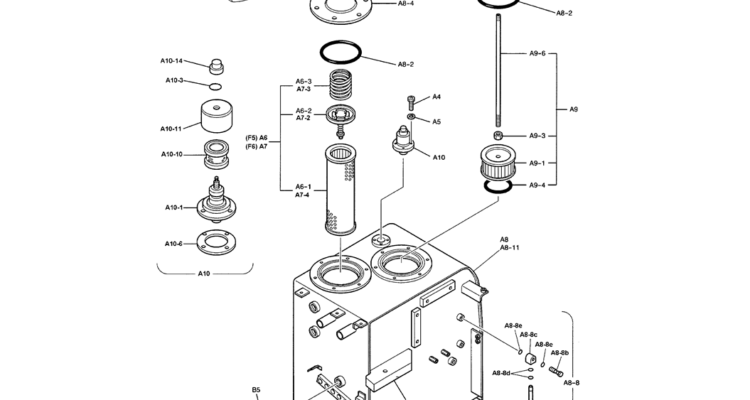

01-014(01) HYDRAULIC TANK ASSEMBLY, (BEFORE S/N YQ08U1397)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B5 1 YN33H01052P1 SEAL B4 1 YN52S00023P1 SENSOR Level B3 3 LE33H01017D1 SHIM (1.0) B2 4 ZW13H16000 WASHER ID 17 x OD…

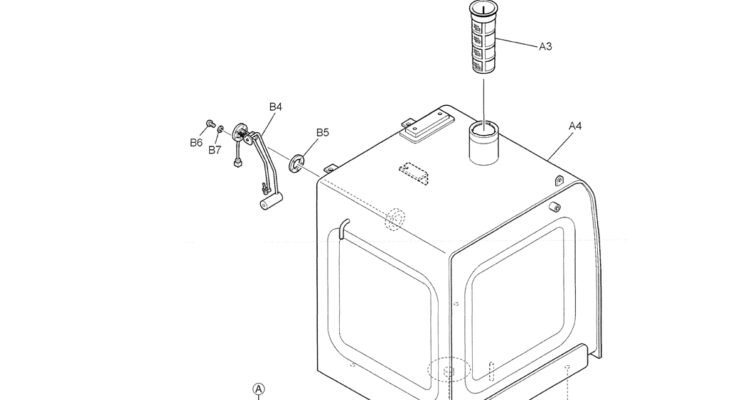

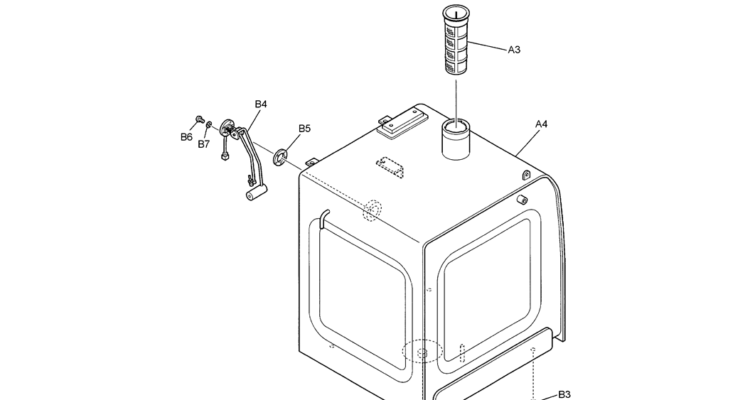

01-013(02) FUEL TANK ASSEMBLY (YN20P00057F2 & YN20P00058F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B8 1 YN20P01117P1 COCK, DRAIN COCK, DRAIN B6 5 ZS31C05012 BOLT M05x0.8x12mm B5 1 2418T9962 PACKING ID 41 x OD 68 x…
01-013(01) FUEL TANK ASSEMBLY (YN20P00057F2 & YN20P00058F2)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B11 1 YN20P01147P1 PACKING PACKING B10 1 YN20P01135P1 HYD CONNECTOR B9 1 LC25V00001P1 COCK VALVE, STOP,(M5) B7 5 ZW26X05000 WASHER Lock --…

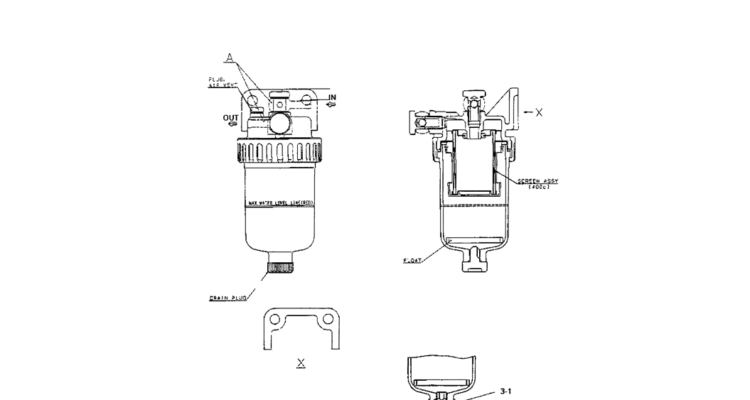

01-012 FILTER ASSEMBLY (YN02P01045F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 3-4 1 VAME037894 DRAIN PLUG PLUG, DRAIN, Remarks: (ME037894) 3-2 1 VAME037895 CAP CUP, DRAIN, Remarks: (ME037895) 3-1 1 VAMF520085 O-RING O-RING, Remarks: (MF520085) 2…

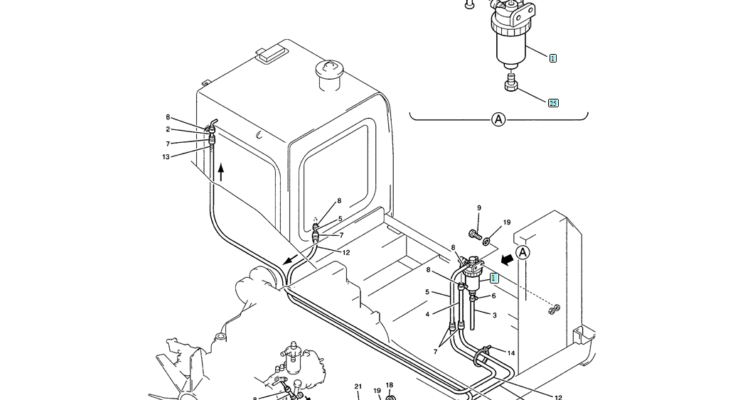

01-011 FUEL LINES (YN21P00010F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 25 1 NSS NOT SERVICED SEPARATELY COCK, DRAIN, Remarks: See P. 053-01-1 24 4 NSS NOT SERVICED SEPARATELY SEAL, Remarks: See P. 053-01-1 23 2…
