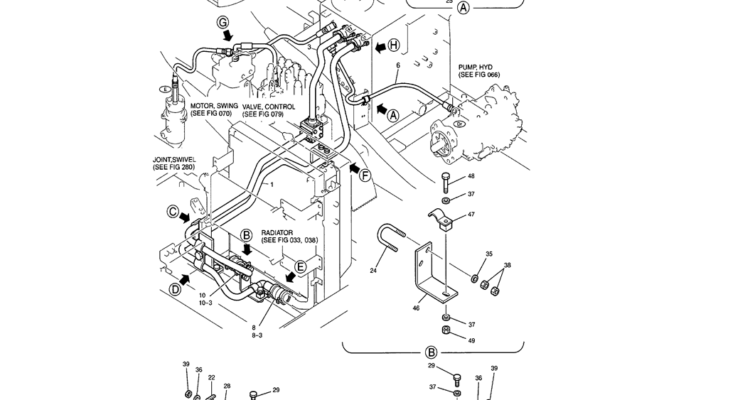

01-024(01) UPPER HYDRAULIC LINES (RETURN)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 51-1 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm, QTY-F1: -, QTY-F2: -, QTY-F3: 1, QTY-F4: 1 51 ZH32X08000 HYD CONNECTOR Elbow, 90°…

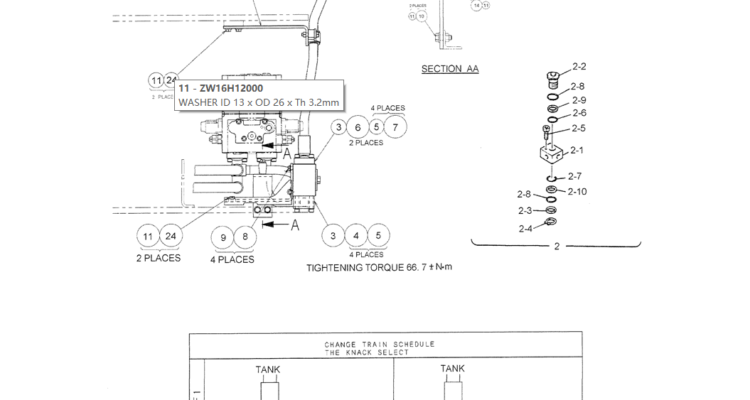

01-023(02) UPPER HYDRAULIC LINES (NIBBLER AND BREAKER)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 32 1 YN03H01671P1 BRACKET BRACKET 31 1 YN03H01456D5 HOSE (1 7/16-12UN)(L=1250mm) 30 1 YN03H01480P1 SUPPORT SUPPORT 29 1 HH35X16016G1 ELBOW 90° --…

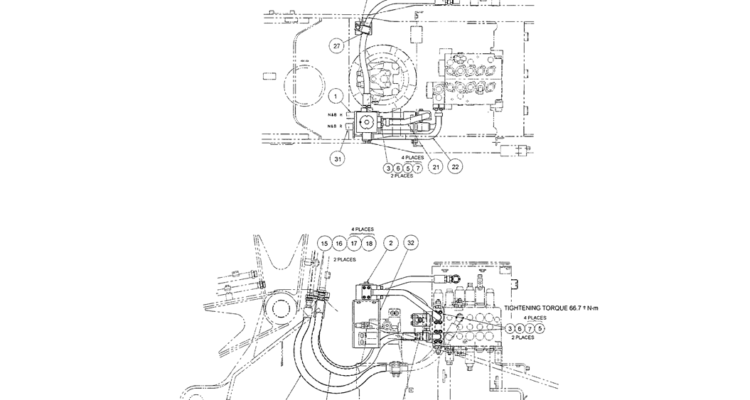

01-023(01) UPPER HYDRAULIC LINES (NIBBLER AND BREAKER)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 32 1 YN03H01671P1 BRACKET BRACKET 31 1 YN03H01456D5 HOSE (1 7/16-12UN)(L=1250mm) 30 1 YN03H01480P1 SUPPORT SUPPORT 29 1 HH35X16016G1 ELBOW 90° --…

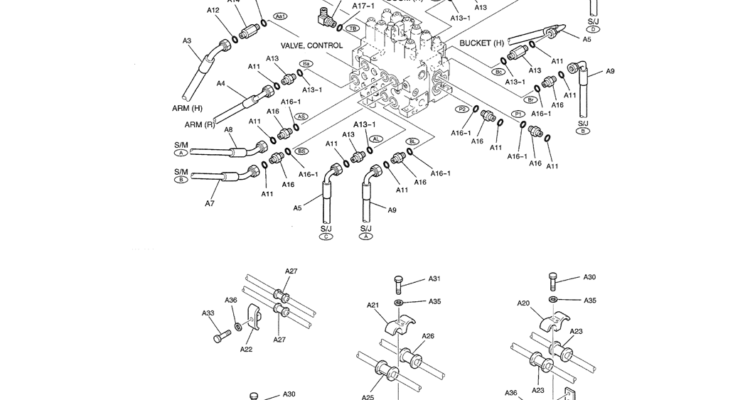

01-022(02) UPPER HYDRAULIC LINES (MAIN)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B4 4 ZD12A01800 O-RING ID 18.77 ± 0.12 x OD 22.33mm B3-1 1 ZD12P02900 O-RING ID 28.70 ± 0.29 x OD 35mm B3 2…

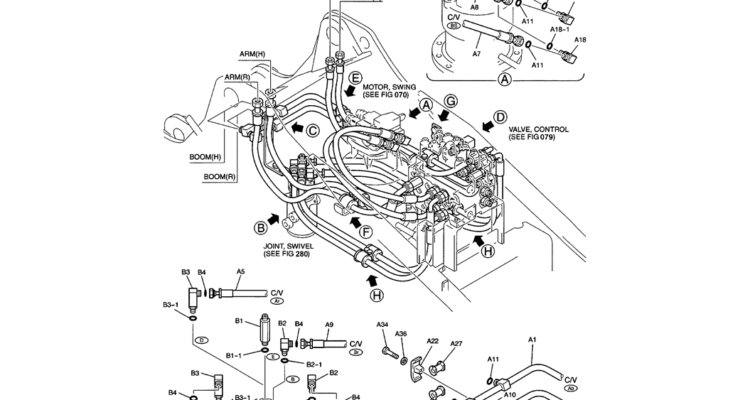

01-022(01) UPPER HYDRAULIC LINES (MAIN)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B4 4 ZD12A01800 O-RING ID 18.77 ± 0.12 x OD 22.33mm B3-1 1 ZD12P02900 O-RING ID 28.70 ± 0.29 x OD 35mm B3 2…

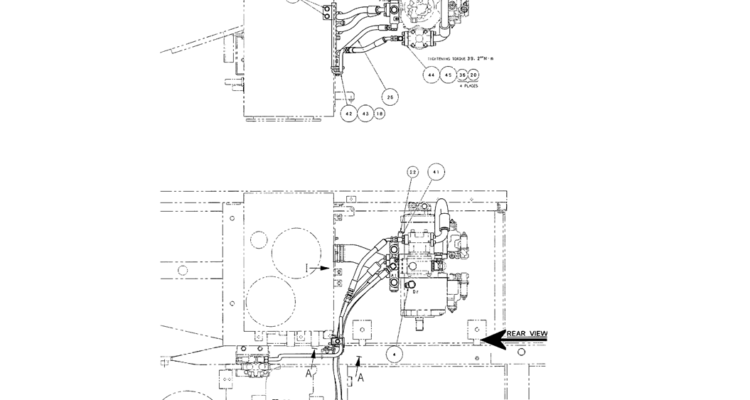

01-021(02) UPPER HYDRAULIC LINES (SUCTION / DELIVERY-ROTATION)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 45 1 ZD12P03400 O-RING ID 33.70 ± 0.33 x OD 40mm 44 1 YN03H01474P1 FLANGE FLANGE 43 1 ZS18C10045 SCREW M10x1.50x45mm 42…

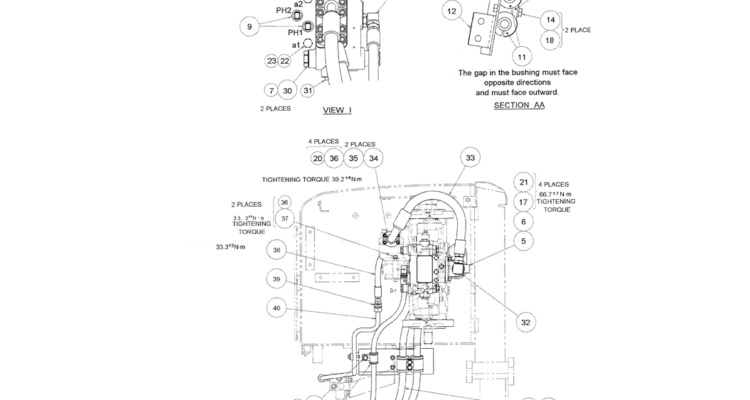

01-021(01) UPPER HYDRAULIC LINES (SUCTION / DELIVERY-ROTATION)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 45 1 ZD12P03400 O-RING ID 33.70 ± 0.33 x OD 40mm 44 1 YN03H01474P1 FLANGE FLANGE 43 1 ZS18C10045 SCREW M10x1.50x45mm 42…

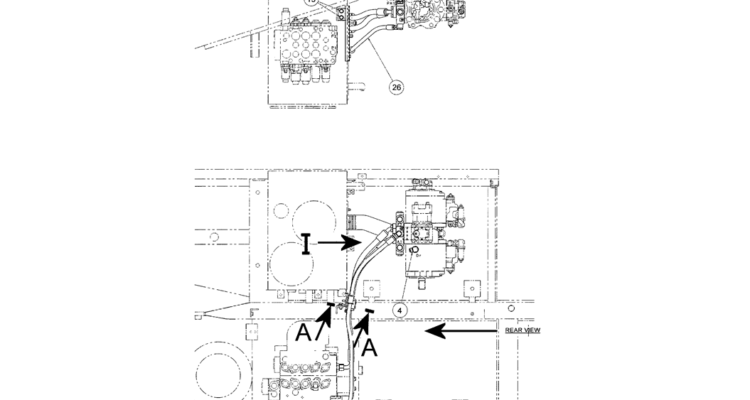

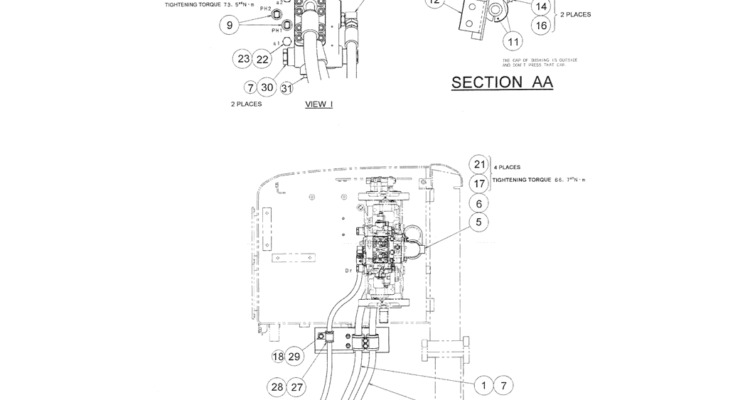

01-020(02) UPPER HYDRAULIC LINES (SUCTION DELIVERY)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 31-1 1 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm 31 2 ZE72X08000 PLUG 1/2" PF, (Incls. O-Ring ZD12P01800) 30 1 YN30V00082F2…
01-020(01) UPPER HYDRAULIC LINES (SUCTION DELIVERY)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 31-1 1 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm 31 2 ZE72X08000 PLUG 1/2" PF, (Incls. O-Ring ZD12P01800) 30 1 YN30V00082F2…

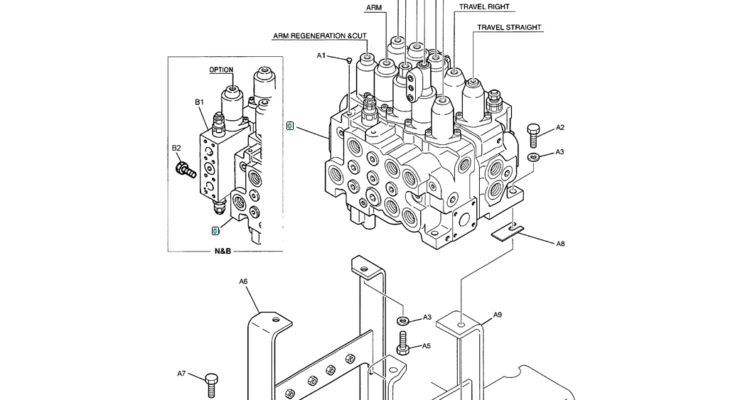

01-019 VALVE INSTALLATION-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B2 4 ZS23C12100 SCREW M12x1.75x100mm B1 1 YN30V00084F1 CONTROL VALVE VALVE, CONTROL, Remarks: See CPM 1 YN64H00143F1 VALVE VALVE SECTION, CONTROL (N&B) A9 1 YN52F01375P1 BRACKET…
