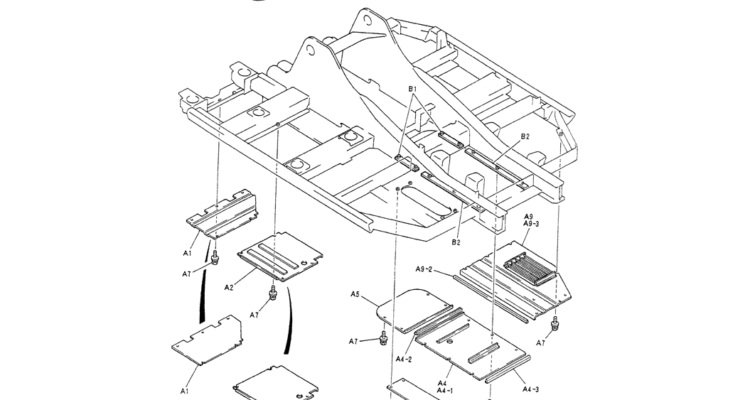

01-035COVER ASSY, UNDER-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals B2 2 YN52F01113P1 BLOCK,TAPPED B1 2 YN52F01038P1 BLOCK, TAPPED A11 1 YN24C01099P1 COVER A10 1 YN24C01086P1 COVER A10 1 YN24C01082P1 COVER A9-3 1 YN24C01081P1 COVER A9-2 1…

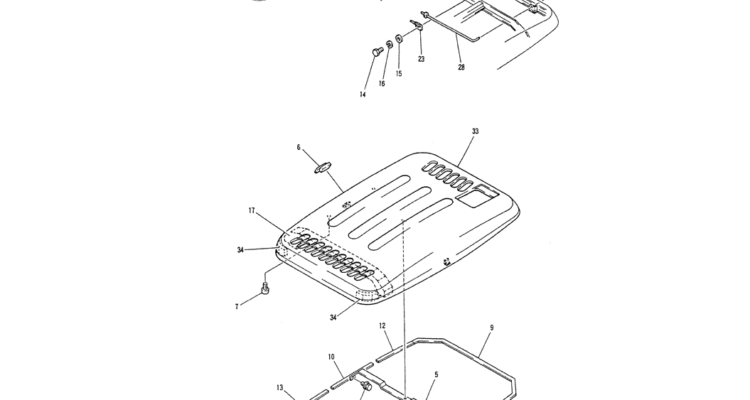

01-034BONNET ASSY-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 34 2 LQ22C01039P1 INSULATION 33 1 YN22C01063P1 ENGINE HOOD 32 3 ZM22C10020 BOLT M10x1.50x20mm (Incls. Washer & Lockwasher) 30 1 ZW16X12000 WASHER ID 12 x OD 24 x…

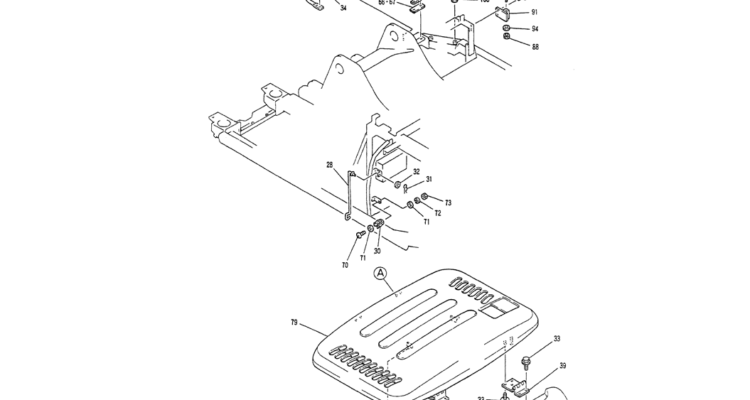

01-033(03)GUARD INSTAL-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 106 2 YR20P01005D1 SHIM 95 l 2456Z253 MIRROR BACK 94 1 ZW16X16000 WASHER ID 16 x OD 30 x Th 3.2mm 91 1 LQ21C01132P1 BRACKET 89 1 YN21C01337P1…

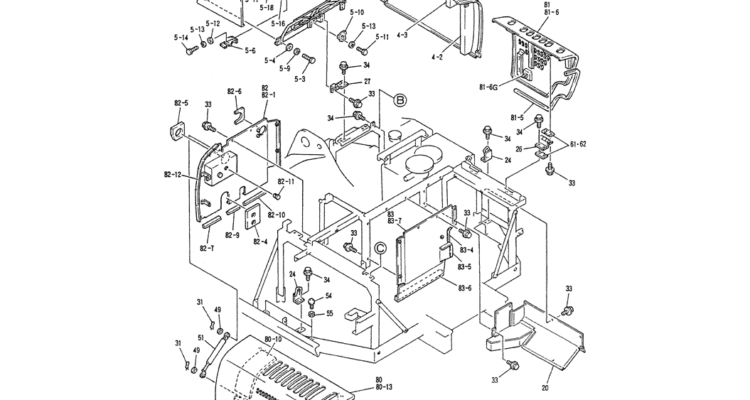

01-033(02)GUARD INSTAL-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 106 2 YR20P01005D1 SHIM 95 l 2456Z253 MIRROR BACK 94 1 ZW16X16000 WASHER ID 16 x OD 30 x Th 3.2mm 91 1 LQ21C01132P1 BRACKET 89 1 YN21C01337P1…

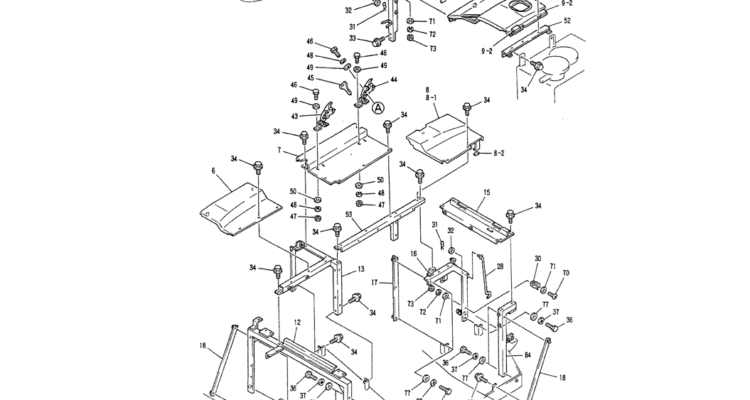

01-033(01)GUARD INSTAL-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 106 2 YR20P01005D1 SHIM 95 l 2456Z253 MIRROR BACK 94 1 ZW16X16000 WASHER ID 16 x OD 30 x Th 3.2mm 91 1 LQ21C01132P1 BRACKET 89 1 YN21C01337P1…

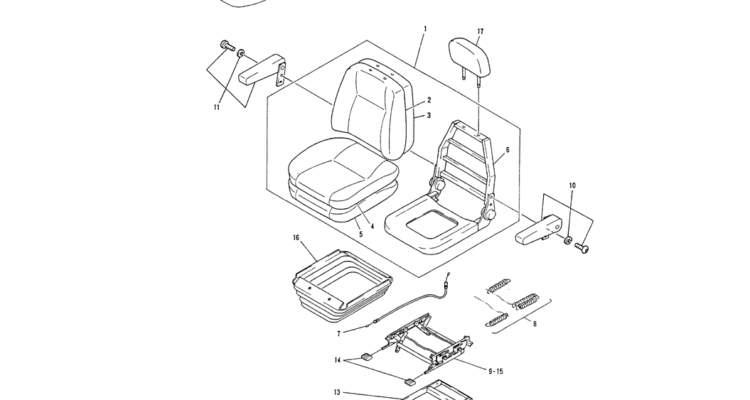

01-032SEAT ASSY-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 17 1 YN25M00008S017 HEADREST CUSHION 16 1 YN25M00008S016 COVER 15 1 YN25M00008S015 ADJUSTER SEAT 14 1 YN25M00008S014 HANDLE 13 1 YN25M00008S013 BRACKET BRACKET 12 1 2448U246S12 11 1…

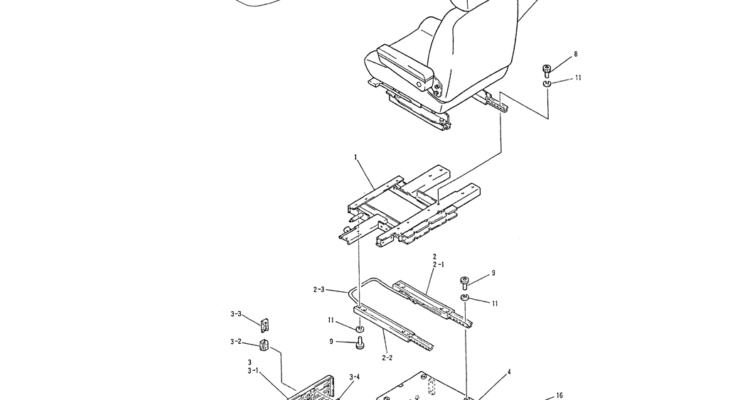

01-031SEAT GROUP-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals A1 1 YN25M00008F2 SEAT (P. 180-01) 17 2 ZW26X08000 WASHER Lock -- ID 08 x OD 15 x Th 2.0mm 16 2 ZS18C08020 SCREW M08x1.25x20mm 15 1 YN25M01035P1…

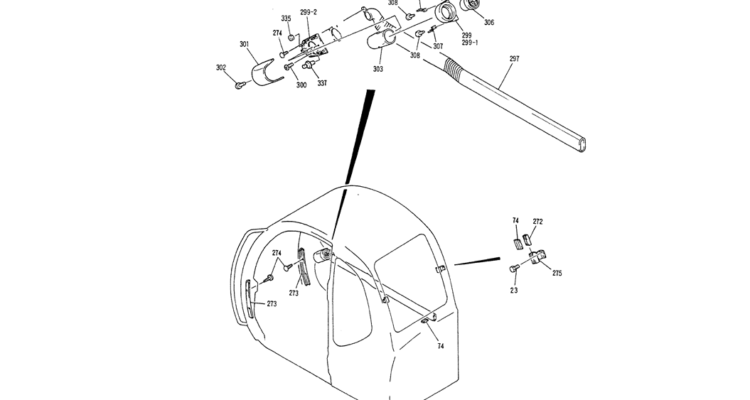

01-030(03)CAB ASSY-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals YN51C00002F1 CABIN DOOR ASSY (DOOR ACCESSORIES ARE INCLUDED) 409-14 6 ZN17C10008 NUT M10x1.50mm 409-13 6 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm 409-11G 6 ZW16X10000…

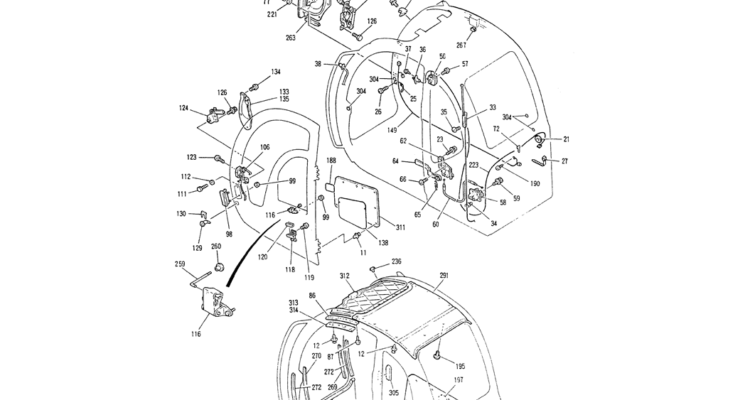

01-030(02)CAB ASSY-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals YN51C00002F1 CABIN DOOR ASSY (DOOR ACCESSORIES ARE INCLUDED) 409-14 6 ZN17C10008 NUT M10x1.50mm 409-13 6 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm 409-11G 6 ZW16X10000…

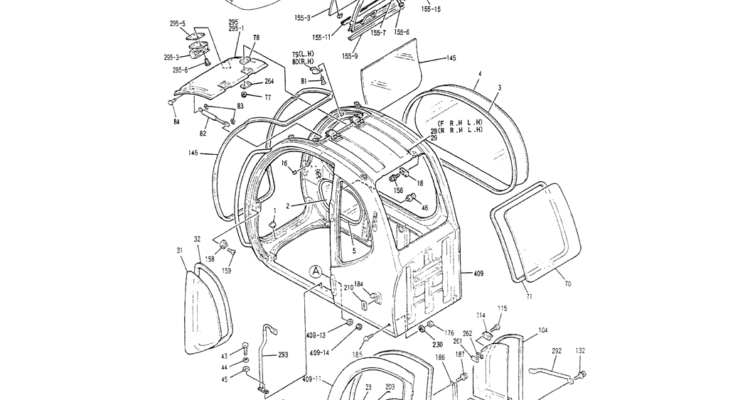

01-030(01)CAB ASSY-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals YN51C00002F1 CABIN DOOR ASSY (DOOR ACCESSORIES ARE INCLUDED) 409-14 6 ZN17C10008 NUT M10x1.50mm 409-13 6 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm 409-11G 6 ZW16X10000…
