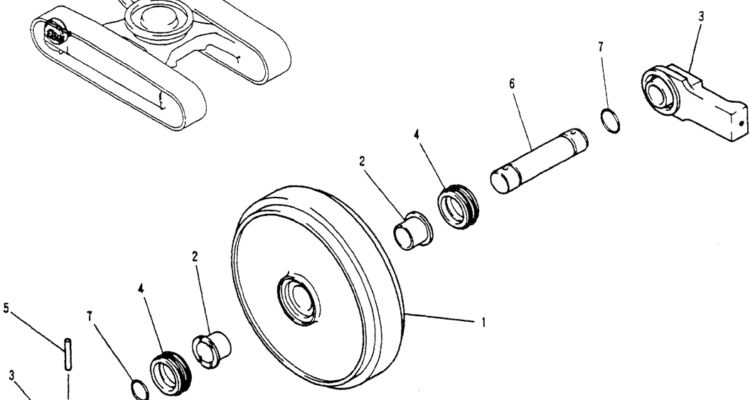

02-008IDLER ASSY-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 8 2 ZE82T02000 PLUG Pipe, 1.25" PT 7 2 ZD11G07000 O-RING ID 69.40 ± 0.61 x OD 75mm 6 1 YN52D01001P1 SHAFT 4 2 2445R442F1 SEAL 3 2…
02-007IDLER ASSY, P/N YN52D00002F2-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 9 2 2445R442F1 SEAL 8 2 ZE82T02000 PLUG Pipe, 1.25" PT 6 1 YN52D01001P1 SHAFT 5 2 YN52D01008P1 PIN 3 2 YN52D01007P1 COLLAR 2 2 2405P482…

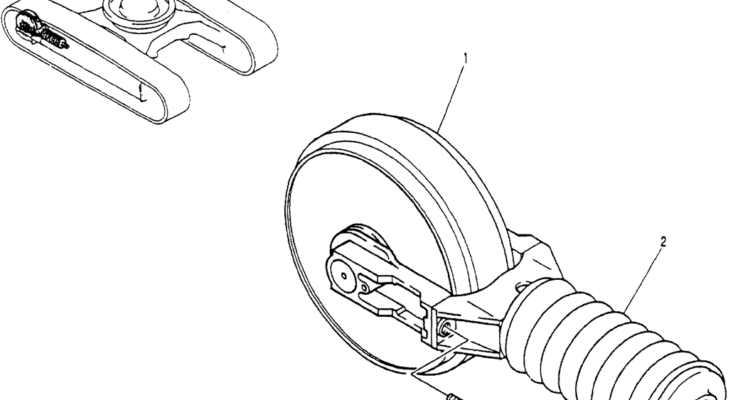

02-006IDLER ASSY, CRAWLER-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 4 4 ZS13C16045 CAP Screw -- M16x2.0x45mm 3 2 2444P803 LUBE NIPPLE 5/8" - 18 UNF, Straight 1 2 YN52D00009F1 IDLER ASSY,SEE FIG 02-008 YN52D00008F1 IDLER ASSY,…

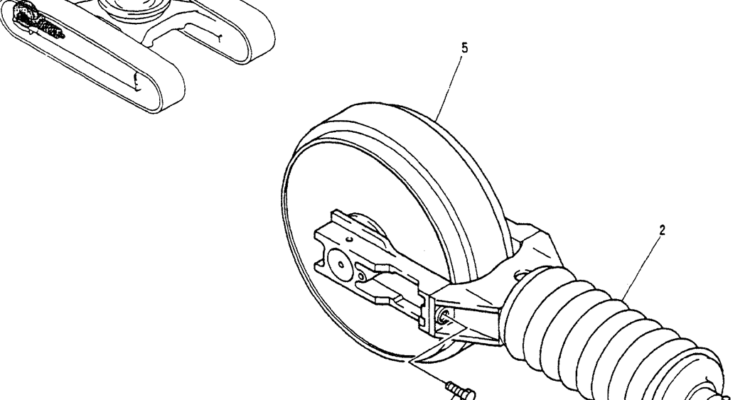

02-005IDLER ASSY, CRAWLER, P/N YN52D00003F2-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 5 2 YN52D00002F2 IDLER SEE FIG 02-007 3 2 2444P803 LUBE NIPPLE 5/8" - 18 UNF, Straight 2 2 YN54D00002F1 SHOCK ABSORBER IDLER ADJUST ASSY,SEE…

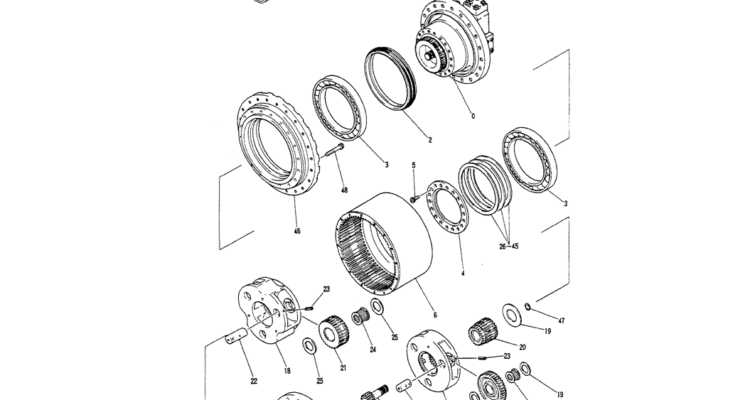

02-004MOTOR ASSY, PROPEL-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 48 18 ZS23C16075 SCREW M16x2.0x75mm 47 1 ZR26X03200 SNAP RING Retaining -- ID 32 x OD 34.4 x Th 1.2mm 46 1 2418N4716 HUB 45 1 2420P1534D20…

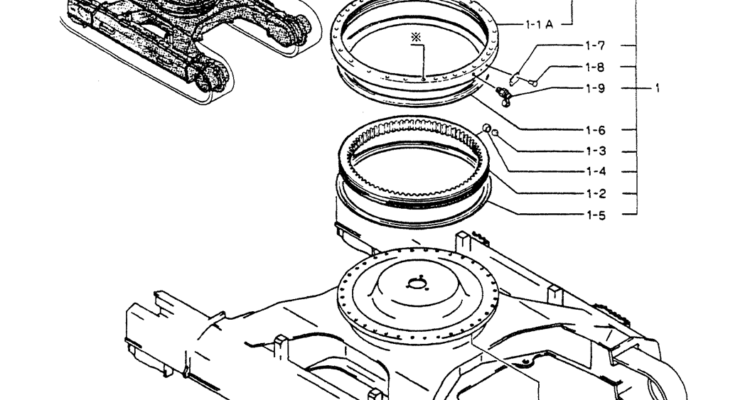

02-003RING ASSY, SLEWING-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 1 2445P114D7 SEAL KIT,1-5 TO 1-6 2 36 YN40F01001P1 CAP Screw -- M20x1.5x65mm 19 1 ZG91S02000 LUBE NIPPLE 1/8" PT -- Straight 1-8 2 4020Z64 RIVET OD…

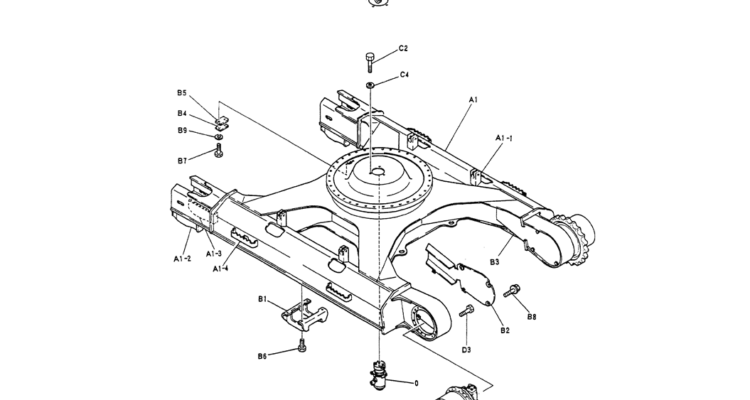

02-002LOW GROUP (LONG CRAWLER)-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 2 YN15V00007F1 HYDRAULIC MOTOR MOTOR ASSY, PROPEL,SEE(HC75-01) E1 2 YN53D00001F2 HYDRAULIC MOTOR MOTOR ASSY, PROPEL,P. 286-21 D3 34 YN53D01003P1 SCREW M20x2.50x60mm D2 44 ZS13C18055 BOLT M18x2.0x55mm…

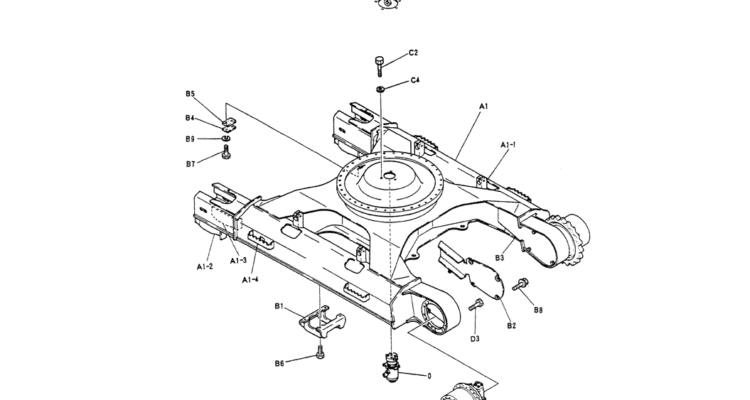

02-001LOW GROUP-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 2 YN15V00007F1 HYDRAULIC MOTOR MOTOR ASSY, PROPEL,SEE(HC75-01) El 2 YN53D00001F2 HYDRAULIC MOTOR MOTOR ASSY, PROPEL,P. 286-21 D3 34 YN53D01003P1 SCREW M20x2.50x60mm D2 44 ZS13C18055 BOLT M18x2.0x55mm Dl 2…

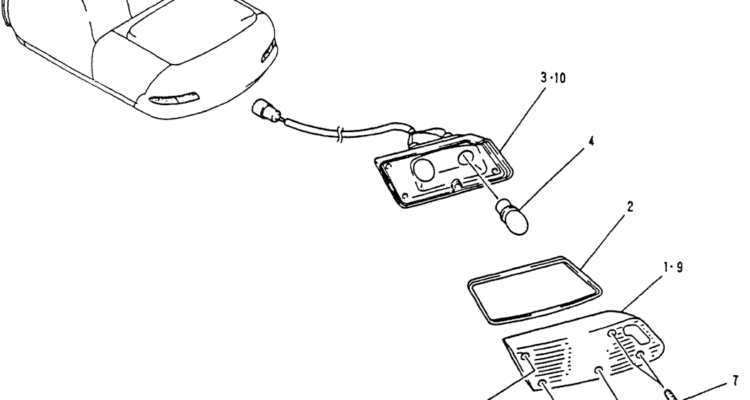

01-060LAMP ASSY- Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 10 1 YN80S00007S011 BODY BODY ASSY,(P2 ONLY) 9 1 YN80S00007S010 LENS (F2 ONLY) 7 2 2456U105S18 SCREW M06x45mm Long G 1 2456U104S17 SCREW MACHINE SCREW 5 1…

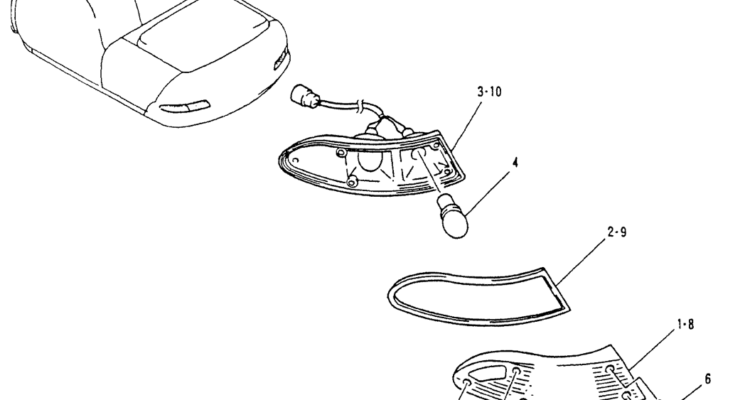

01-059LAMP ASSY, P/N YN80S00006F1-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 10 1 YN80S00006S011 DODY ASSY,(F2 ONLY) 9 1 YN80S00006S010 PACKING PACKING,(F2 ONLY) 8 1 YN80S00006S009 LENS LENS,(F2 ONLY) 7 1 YN80S00006S007 SCREW.TAPPING C 2 2456U105S16 SCREW…
