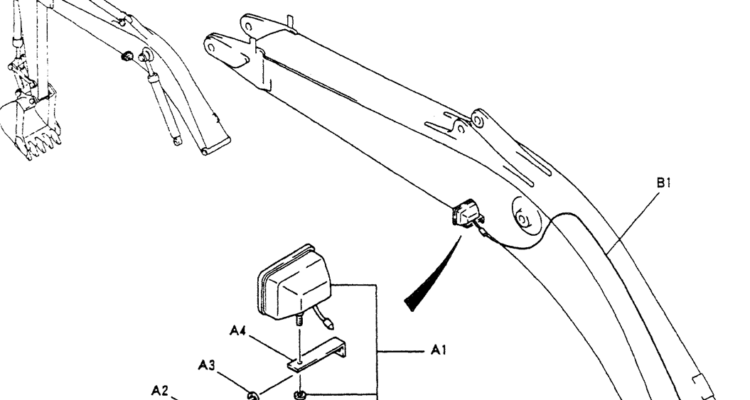

03-003LIGHT INSTAL (BOOM)-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals B1 1 YN15E01005D2 WIRE HARNESS YN15E00001F1 HARNESS ASSY. BOOM A3 1 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm A2 1 ZS18C10020 SCREW M10x1.50x20mm…

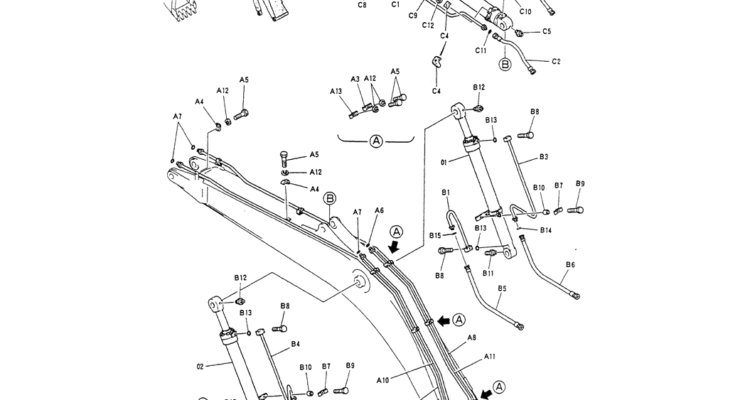

03-002HYD LINES, BOOM 5.65M- Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals C14 1 ZE82T02000 PLUG Pipe, 1.25" PT, (F2 Only) C12 5 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm C11 1 ZD12A01800…

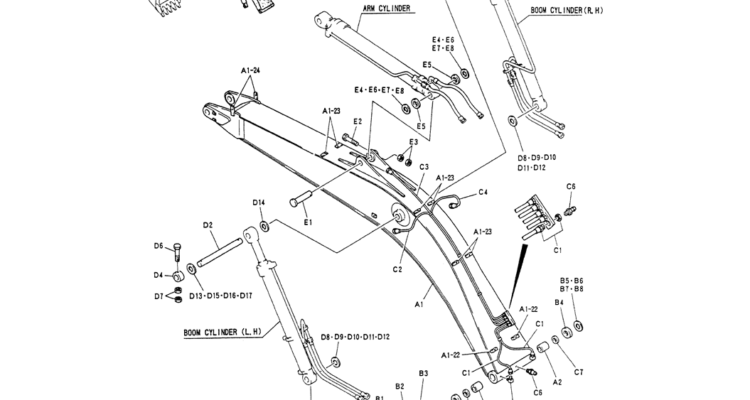

03-001STD. BOOM ASSY, 5.65M-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals E8 2 B16T0442D62 SHIM ID 87 x OD 140 x Th 1.6mm E7 2 B16T0442D77 SHIM ID 87 x OD 140 x Th 0.9mm E6 2…

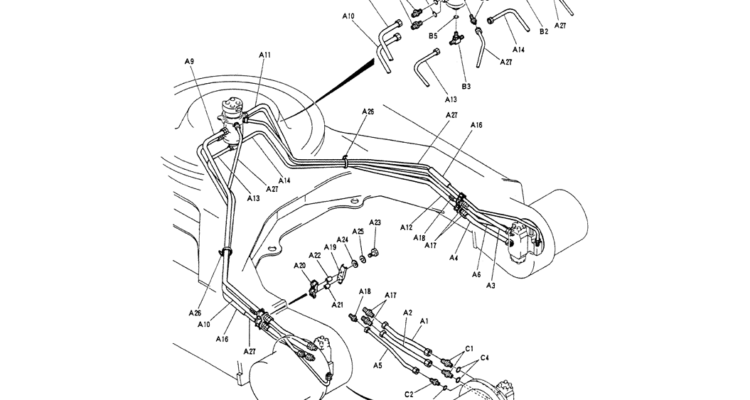

02-015HYD LINES, LOW (LONG CRAWLER)-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals C7-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm C7 2 ZH22X04000 HYD CONNECTOR 1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) C5 2 ZD12P01800 O-RING…

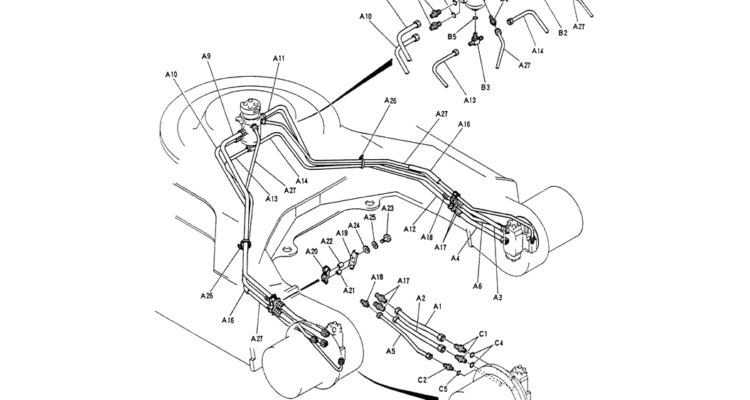

02-014HYD LINES, LOW-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals C7-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm C7 ZH22X04000 HYD CONNECTOR 1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) C5 2 ZD12P01800 O-RING ID 17.80 ±…

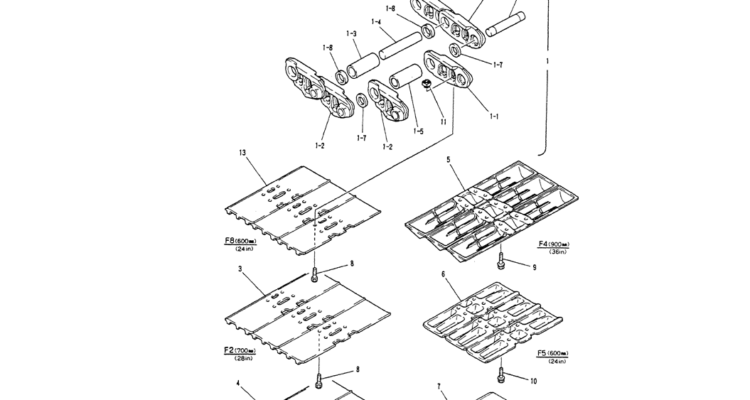

02-013SHOE ASSY (LONG CRAWLER)-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 7 49 2424J184 TRACK SHOE CONSISTS OF ITEM1,7,8 & 11 SHOE RUBBER-PAD 2 YN60D00011F6 SHOE ASSY 10 196 2420T7262D2 SCREW BOLT,SHOE 6 49 2424N204 SHOE FLAT…

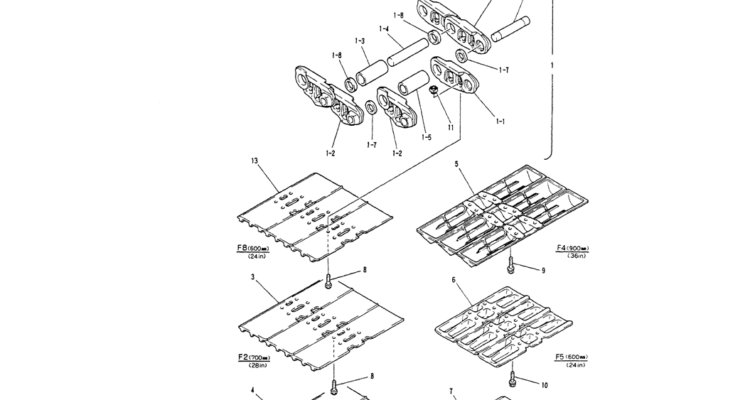

02-012SHOE ASSY-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 7 46 2424J184 TRACK SHOE CONSISTS OF ITEM, SHOE RUBBER-PAD 2 YN60D00010F6 SHOE ASSY(1,7,8&11) 10 184 2420T7262D2 SCREW BOLT.SHOE 6 46 2424N204 SHOE FLAT 2 YN60D00010F5 SHOE ASSY(1,6,10…
02-011ROLLER ASSY, UPP-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 7 46 2424J184 TRACK SHOE CONSISTS OF ITEM, SHOE RUBBER-PAD 2 YN60D00010F6 SHOE ASSY(1,7,8&11) 10 184 2420T7262D2 SCREW BOLT.SHOE 6 46 2424N204 SHOE FLAT 2 YN60D00010F5 SHOE…

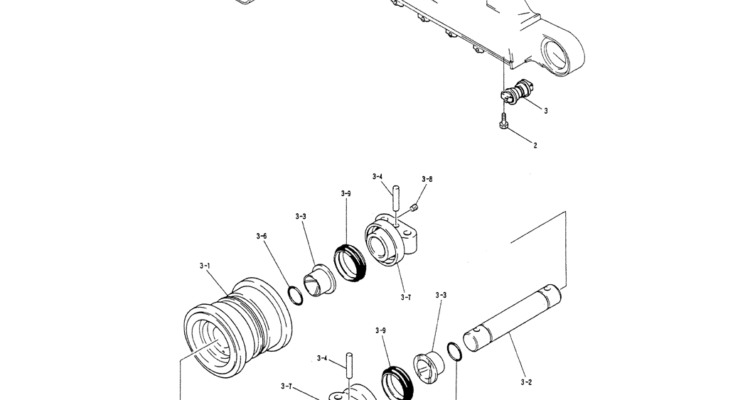

02-010ROLLER ASSY, TRACK-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 3-9 2 2445R441F1 SEAL Floating -- ID 90 x OD 114.45 x Th 33mm 3-8 2 ZE82T04000 PLUG 1/4" PT 3-7 2 2418N3742 COLLAR 3-6 2 ZD11G06000…

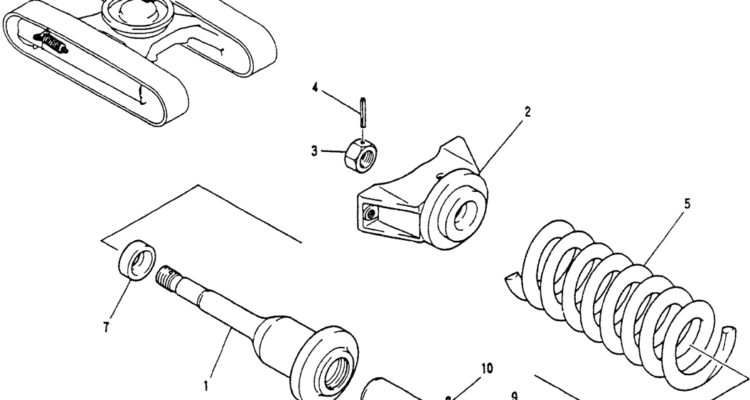

02-009IDLER ADJUST ASSY-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals 10 2 2419T4748 PIN 9 1 2418U130D35 PACKING OIL SEAL 8 1 ZD12G08000 O-RING ID 79.40 ± 0.69 x OD 85mm 7 1 2418T21285 COLLAR CLAMP 6…
