SK140/SK130/SK135

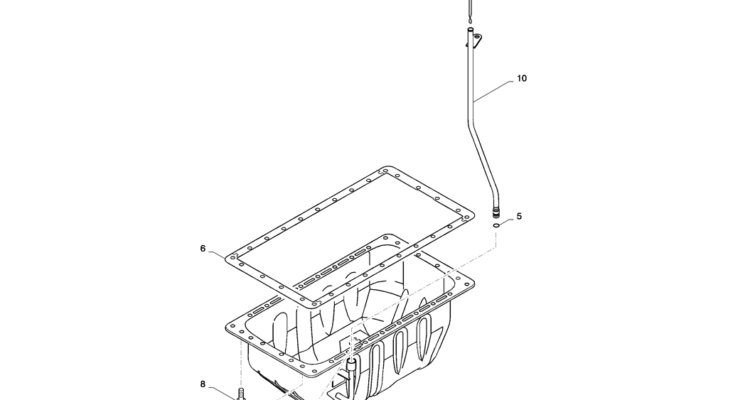

08-010(00) OIL PAN-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 10 1 VA32G1311100 GUIDE Oil Level Gage 9 1 VA32G1311200 DIPSTICK Level 8 12 VA3431300200 BOLT Oil Pan 7 16 VAMF244852 BOLT W/Washer 5 1 VA0550710110 O-RING 4…

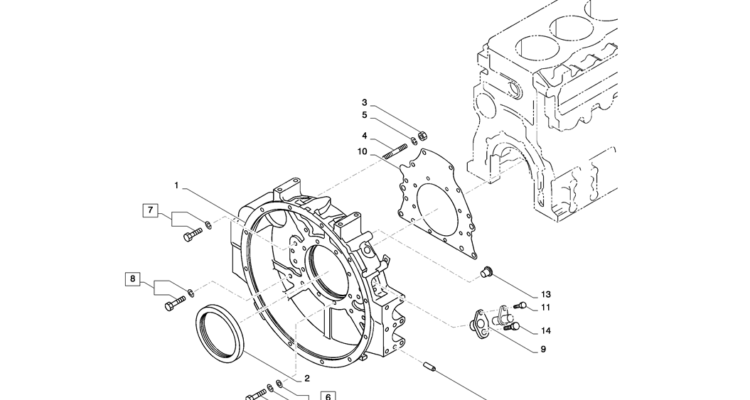

08-009(00) FLYWHEEL HOUSING-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 14 1 VAF103508025 BOLT 13 1 VA0553410000 PLUG 12 4 VA32G1200300 PIN Dowel 11 1 VAF121006016 BOLT Hexagon Socket 9 1 VA32G1200201 Sensor 8 10 VAF200510030 BOLT W/washer,…

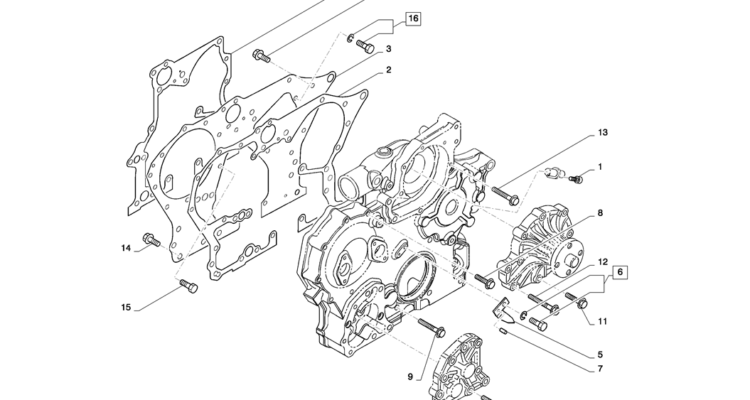

08-008(02) TIMING GEAR CASE-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 16 2 VAMF241251 SCREW W/washer, B/W 15 1 VA0593510020 Coating 14 3 VAF115510025 BOLT 13 6 VAMH000723 BOLT Flange 12 6 VAMH000832 FLANGE BOLT 11 1 VAMH000835…

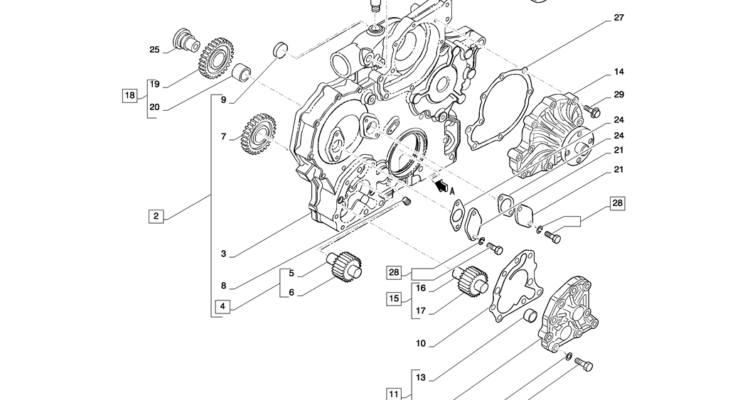

08-008(01) TIMING GEAR CASE-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 32 1 VA0594601601 SEAL WASHER 31 1 VAF500016000 DRAIN PLUG 30 5 VAF250010000 SPRING WASHER Plain 29 4 VAMF140433 FLANGE BOLT 28 4 VAF180508020 BOLT W/Washer, B/W…

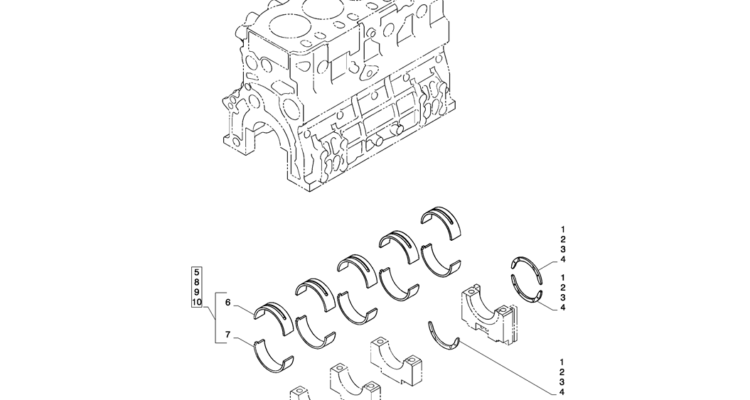

08-007(00) MAIN BEARING-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 10 5 VA3430909081 BEARING SET Main, Includes Ref. 6 & 7, U.S. 0.75 8 5 VA3430909061 BEARING SET Main, Includes Ref. 6 & 7, U.S. 0.25 7 5…

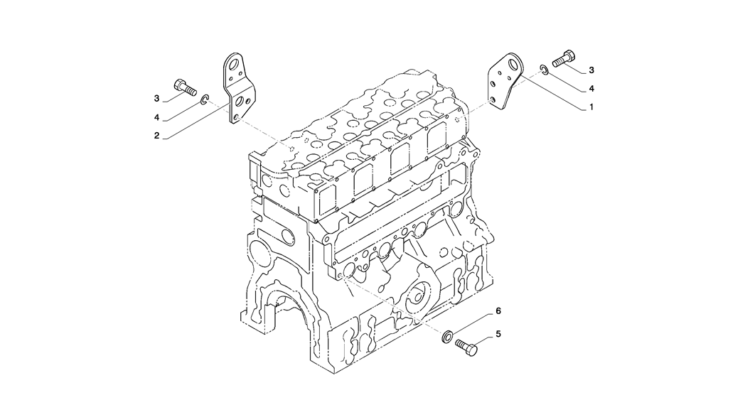

08-006(00) LIFTING EYE & DRAIN COCK-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 6 1 VA0594601001 WASHER Sealing 5 1 VAF115510016 BOLT 3 4 VAF115512020 BOLT 2 1 VA32G0713200 LIFTING EYE Rear 1 1 VA32G0713300 LIFTING EYE Front…

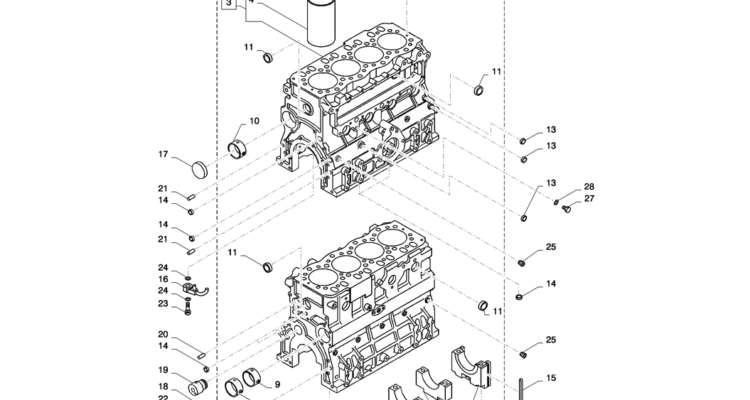

08-005(00) CRANKCASE-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 28 1 VA32F6102600 O-RING 27 1 VA32G0705100 PLUG 26 2 VAF284606000 PIN Dowel 25 8 VAMS661140 PLUG Tapered 24 8 VAMF660034 GASKET 23 4 VA32F3600010 CHECK VALVE Assy. 22…

08-004(00) CAMSHAFT-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 6 8 VA3440503100 PUSH ROD 5 8 VA32F0501100 4 2 VAMF241251 SCREW W/Washer 2 1 VAF287007022 WOODRUFF KEY 1 1 VA32G0500100 CAMSHAFT 3 1 VA3430510201 THRUST PLATE    …

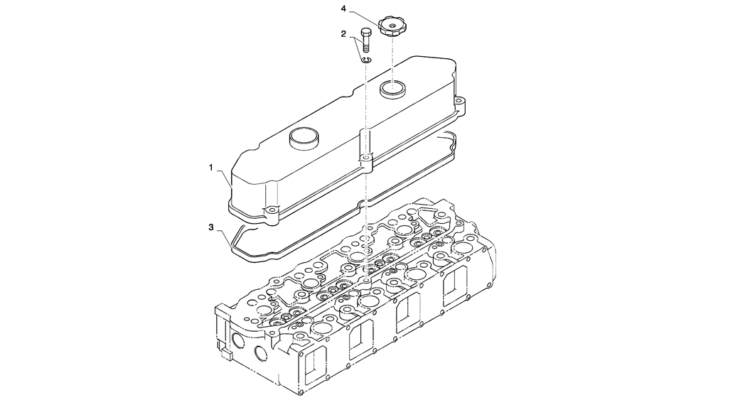

08-003(00) ROCKER COVER-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 3 1 VA32G0400200 GASKET Rocker Cover 2 5 VAF180508045 BOLT W/ Washer, B/W 1 1 VA32G0400101 COVER Rocker 4 1 VAMD354666 FILLER CAP Oil        …

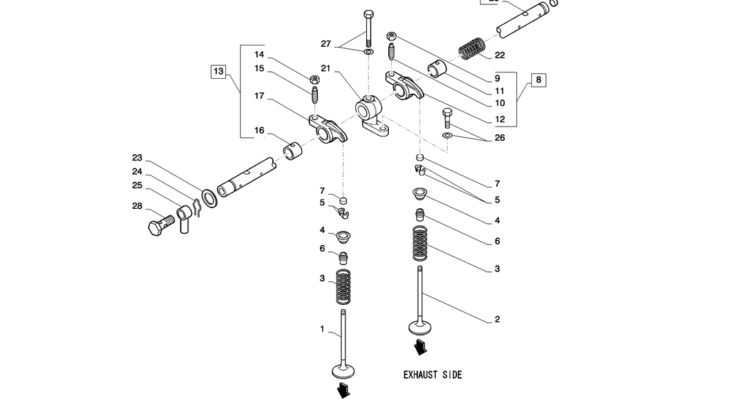

08-002(00) VALVE MECHANISM-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 28 1 VAMF650113 EYEBOLT 27 4 VAMF241266 BOLT W/ Washer 26 4 VAMF241253 SCREW W/ Washer 25 1 VA3440403500 PIPE Oil 24 2 VA3040404300 SNAP RING 23 2…
