SK140/SK130/SK135

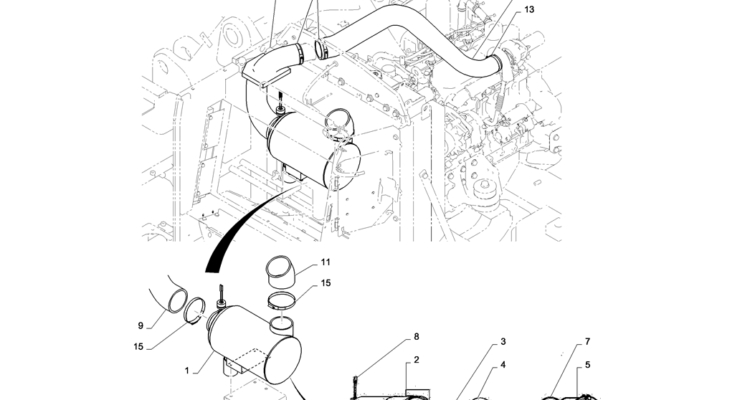

01-010(00) AIR CLEANER ASSEMBLY-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 16 4 ZM22C08016 BOLT Sems 15 2 ZC16X11000 CLIP 14 2 ZC16X09100 CLIP 13 1 ZC16X07000 CLIP 12 1 YY11P01049P1 RUBBER 11 1 YY11P01032P1 FLEXIBLE HOSE Air…

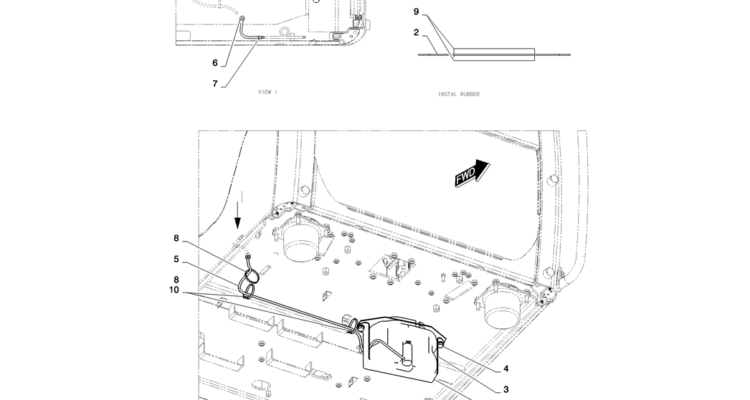

01-009(00) TANK ASSEMBLY, WASHER-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 10 2 YN13E01375P1 CLIP 8 3 PY01P01043D3 CLIP 7 1 YT02C01282P1 ELEC CONNECTOR 6 1 YN03M01159P1 GROMMET 5 1 YT02C01126DF PIPE 4 2 ZM73C10020 BOLT Sems 3…

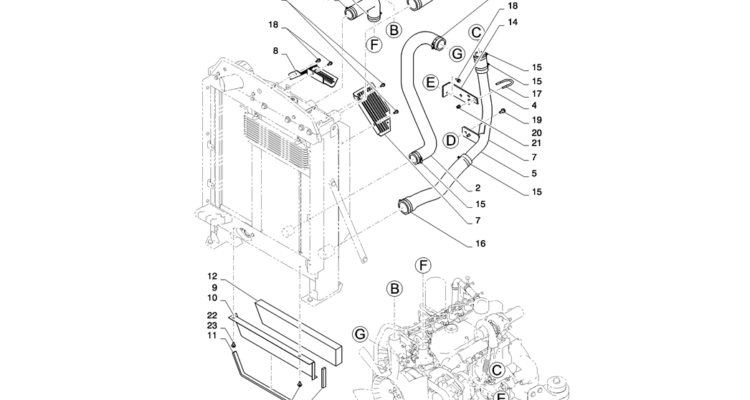

01-008(02) RADIATOR GROUP-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 23 2 YR21C01161P1 WASHER 22 2 ZS18C08020 SCREW Cap 21 2 ZW16P08000 WASHER 20 4 ZN18C08007 NUT 19 1 ZM73C10030 BOLT Sems 18 9 ZM73C08020 BOLT Sems 17…

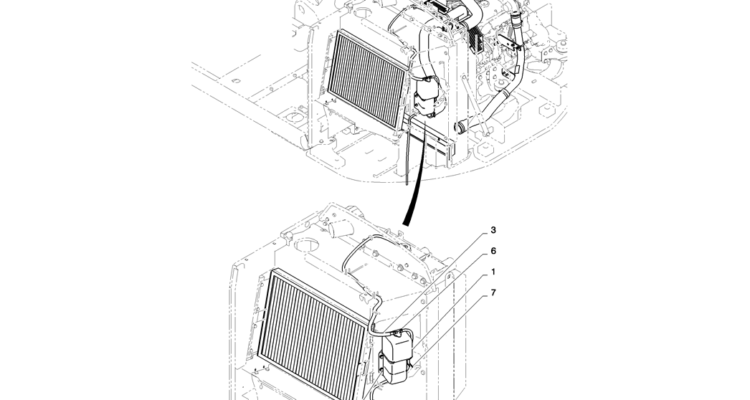

01-008(01) RADIATOR GROUP-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 7 1 2432R233D2 CLIP 6 1 PH05P01088D6 CLIP 4 1 YY50V01012P1 FILTER 3 1 PU13E01002DR TUBE 2 1 HX11Y05125DX HOSE 1 1 YN05P01496F1 TANK Assy., Water, Sub AR…

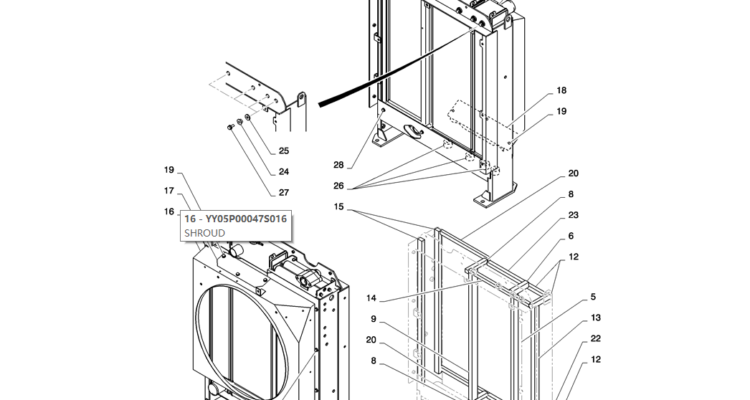

01-007(02) RADIATOR INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 28 4 YY05P00031S030 SCREW Cap 27 4 ZM22C10030 BOLT Sems 26 4 YN05P00058S014 SEAT CUSHION Mount, Rubber 25 4 YN05P00058S013 SEAT CUSHION Mount, Rubber 24 4 YM05P00019S021 COLLAR…

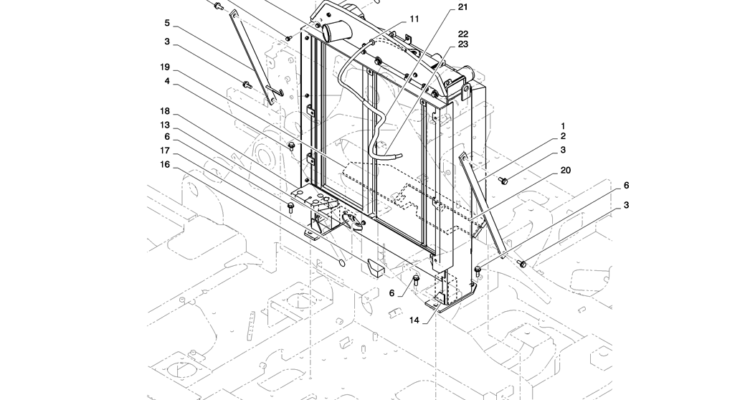

01-007(01) RADIATOR INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 23 1 PV21M01001DB HOSE ASSY. 22 2 PH05P01088D6 CLIP 21 1 YY05P00047F1 RADIATOR 20 1 YY05P01271P1 INSULATION 19 1 YY05P01270P1 INSULATION 18 1 YY05P01249P1 RUBBER 17 1 YY05P01236P1…

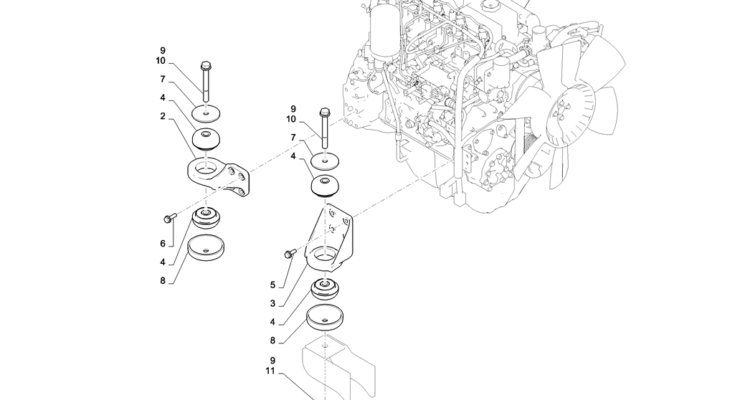

01-005(02) ENGINE INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 11 1 ZN18C18015 NUT 10 4 ZS18C18150 CAP Screw 8 4 YN02P01062P1 COVER 7 4 YN02P01088P1 PLATE 6 8 ZM73C12040 BOLT Sems 5 8 ZM73C12035 BOLT Sems 4…

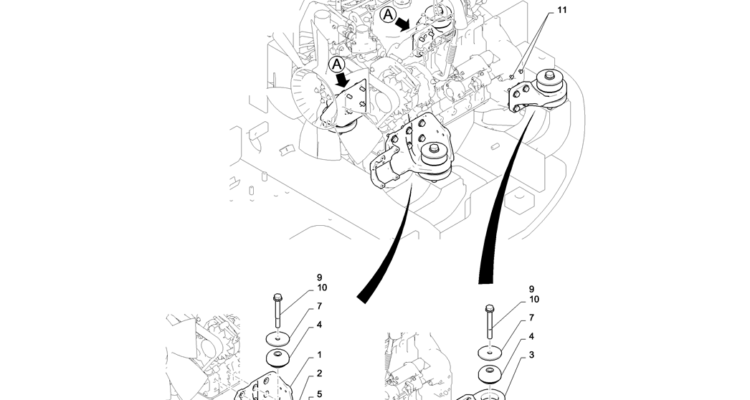

01-005(01) ENGINE INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 13 2 ZW16H12000 WASHER 12 2 ZS28C12035 SCREW Cap 11 2 YN64H01391D1 CAP 10 4 ZS18C18150 CAP Screw 9 5 ZW16H18000 WASHER 8 4 YN02P01062P1 COVER 6 8…

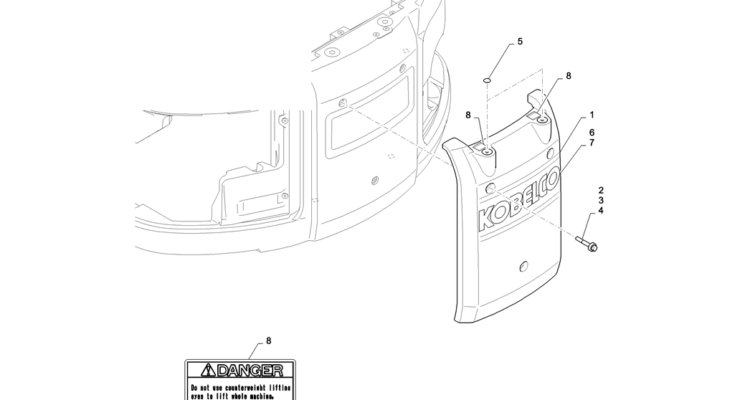

01-004(00) COUNTERWEIGHT INSTALLATION (GAIN)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 8 2 YN20T01221P1 LABEL 7 1 YY22T00126P1 DECAL 5 2 LE60C01028P1 PLATE 4 3 HY26Y21050G5 WASHER , ASN YH06-08010 4 3 HY26Y21050G4 WASHER , BTW YH06-08001 &…

01-003(02) COUNTERWEIGHT INSTALLATION-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals 16 1 YY60C01110P1 FOAM INSULATION 15 1 YY60C01085D1 RUBBER 14 1 YY60C01088P1 FOAM INSULATION 12 1 YY60C01073P1 FOAM INSULATION 11 1 YY60C01081P1 FOAM INSULATION 10 1 YY60C01087P1 FOAM…
