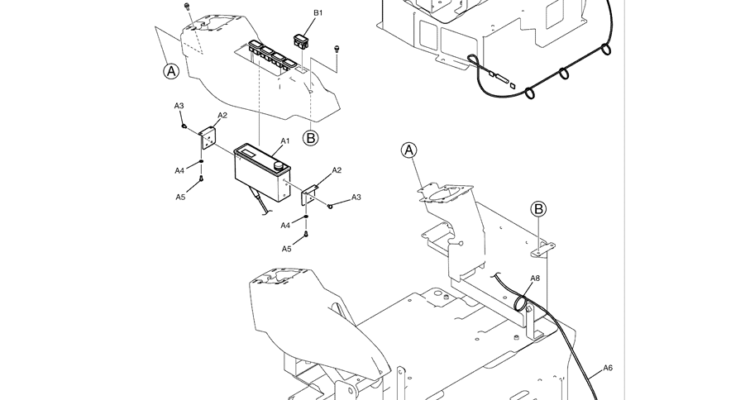

1.028(00) RADIO INSTALLATION YN54E00010F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B1 5 YN17M01282P1 CAP Plug -- 43x25x27mm YN50E00018F1 SWITCH INSTALLATION A7 2 2432Z478D1 CLIP Clamp -- Ø5.4x17.5x20.5x9.8mm A6 1 YN17M01072P1 CABLE 2000mm Long (78-3/4 in) A5 4 YN17M01262P1…

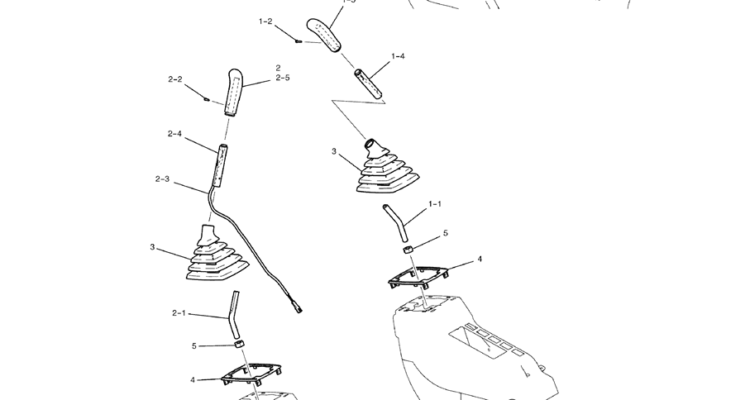

1.027(01) GRIP ASSY YN03M01974F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 1 ZN18C14011 NUT M14x2.0mm 4 1 YN03M01328P2 PLATE 2-5 1 YN03M01867P1 GRIP 24 1 YN03M01866P1 CASE 2-3 1 YN50E00017P1 SWITCH ASSY Horn 2-2 1 ZS31C04016 SCREW M04x0.7x16mm…

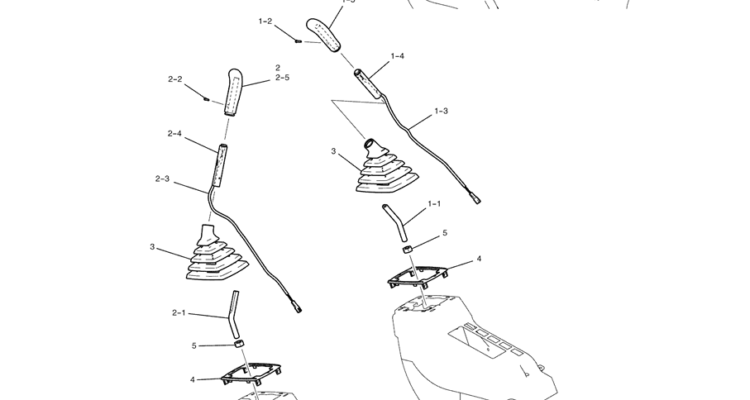

1.027(00) GRIP ASSY YN03M01870F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 1 ZN18C14011 NUT M14x2.0mm 4 1 YN03M01328P2 PLATE 3 1 YN03M01498P1 BELLOWS BOOT 2-5 1 YN03M01867P1 GRIP 2-3 1 YN50E00017P1 SWITCH ASSY Horn 2-2 1…

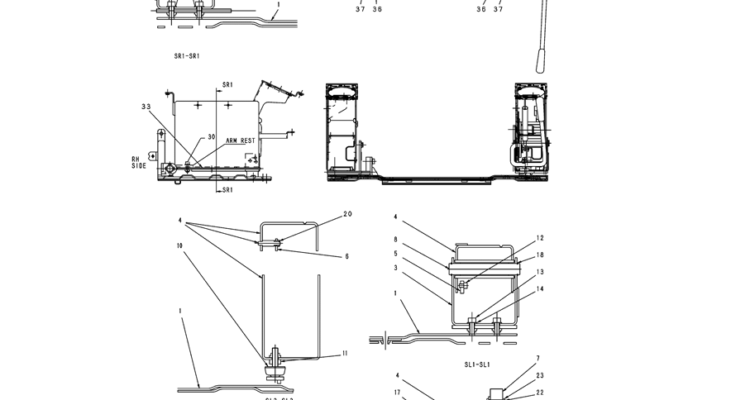

1.026(00) CONTROL BOX ASSY YN03M00149F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 37 2 YN03M01989P1 WASHER ID 10.5 x OD 20 x Th 2.0mm 36 2 YN03M01988P2 SCREW M10x1.25x20mm 35 1 YN03M01984P2 PILLAR STAY (L.H.) 34 1 YN03M01985P1 SHAFT…

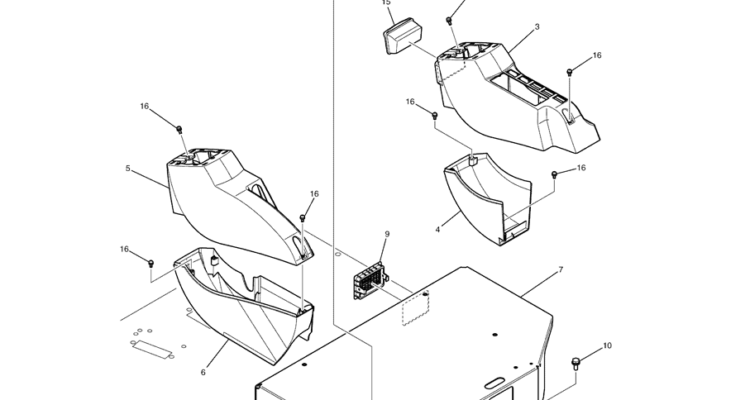

1.025(01) CONTROLS, OPERATORS YN03M00153F1 PAGE 2 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 18 1 YN20M01643P1 SPRING (not shown) 16 12 ZM66C06016 BOLT M06x1.0x16mm (Incls. Washer & Lockwasher) 14 4 ZS28C08020 SCREW M08x1.25x20mm 13 4 ZW16P08000 WASHER…
1.025(00) CONTROLS, OPERATORS YN03M00153F1 PAGE 1 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 18 1 YN20M01643P1 SPRING SPRING (not shown) 10 4 ZM73C10020 BOLT M10x1.50x20mm (Incls. Washer) 2 1 YN26M00065P1 FOOT BOARD MAT, FLOOR 1 2 YN03M01859P2…

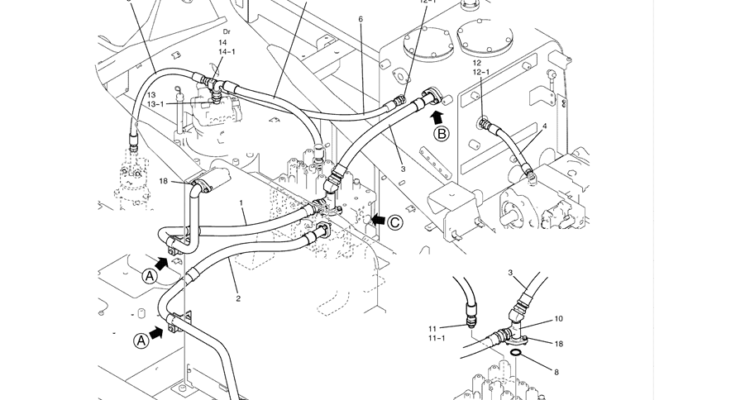

1.023(00) UPPER HYDRAULIC LINES RETURN LC03H00027F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 22 2 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm 21 2 ZS18C12055 SCREW M12x1.75x55mm 19 4 ZM73C12030 BOLT M12x1.75x30mm (Incls. Washer) 18 10…

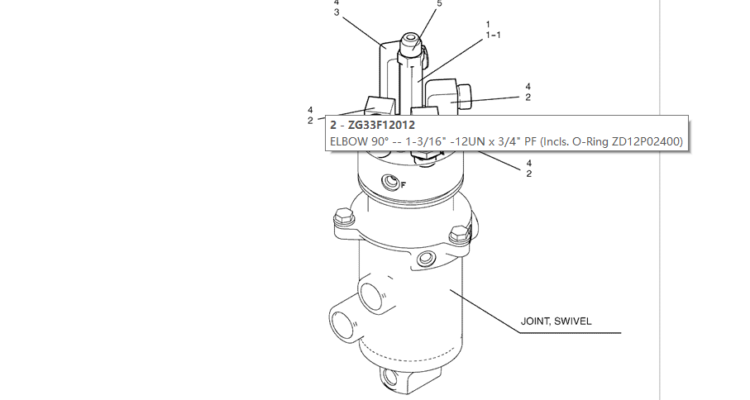

1.022(00) HYDRAULIC LINES - SWIVEL LC19H00014F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 1 2444R402D2 HYD CONNECTOR 3/4"PFx1/2"PFx50.5mm Long (Incls. O-Ring ZD12P01800) 4 4 ZD12A01800 O-RING ID 18.77 ± 0.12 x OD 22.33mm 3 1 YN03H01172P1 ELBOW…

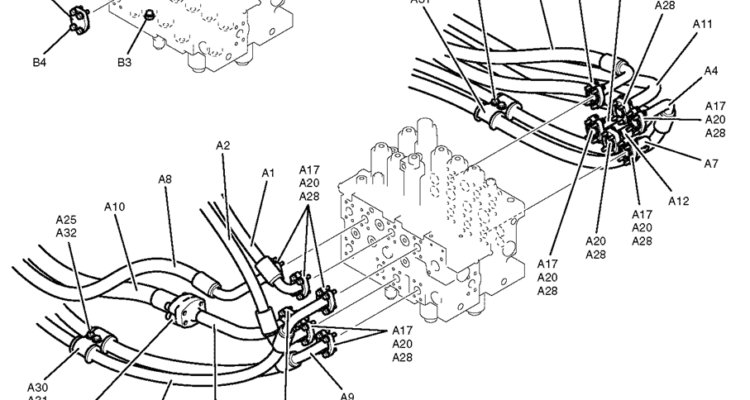

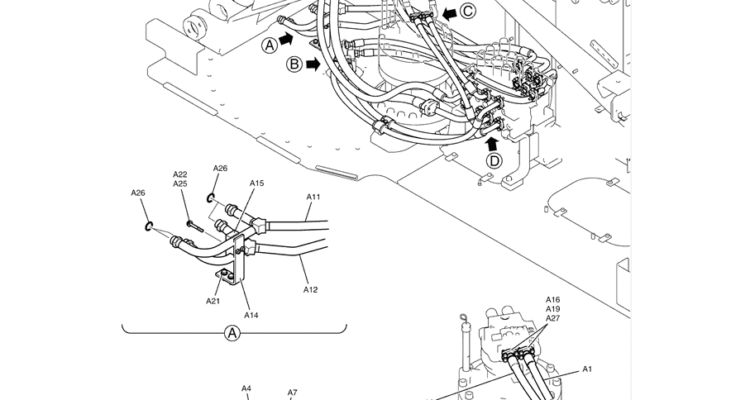

1.019(00) UPPER HYDRAULIC LINES - MAIN LC03H00054F1 (PAGE 1 OF 2)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B6 1 ZD12P04800 O-RING B5 2 ZM73C12030 BOLT B1 1 YN03H01884P1 PLUG A32 4 ZS18C10060 SCREW M10x1.50x60mm A31 4 YN03H01432P1 BUSHING…
