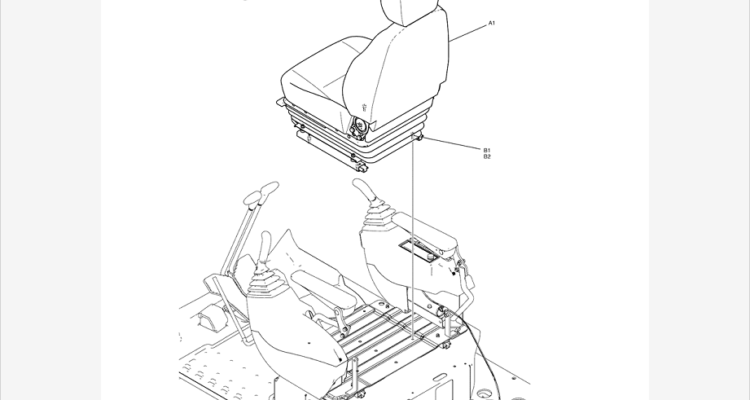

1.056(00) SEAT INSTALLATION YN25M00071F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B1 4 ZW26K08000 LOCK WASHER ID 08 x OD 13 x Th 2.0mm YN25M00062F1 SEAT INSTALLATION A1 1 YN25M00067F1 SEAT ASSEMBLY, Components NSS, Contact KAB Seating B2…

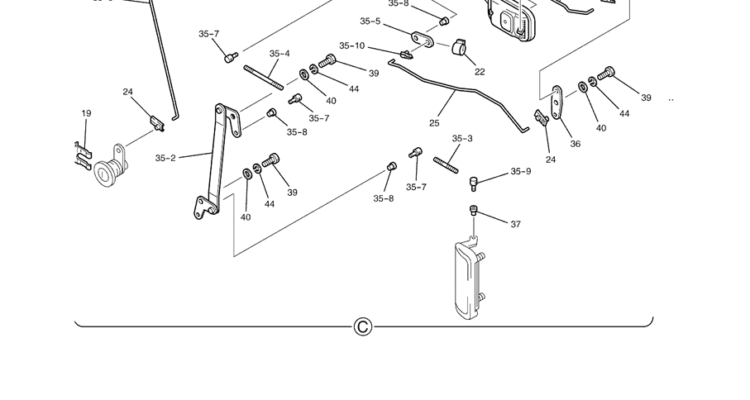

1.055(00) CAB DOOR PAGE 2 OF 2 YN51C00010F2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 49 1 YT02C01515D3 TRIM PANEL 48 1 YR09T00003P1 PAINT 47 1 YR09T00002P1 PAINT 46 1 YR01T01005P1 ADHESIVE 45 1 YT02C01514D4 SEAL 44…

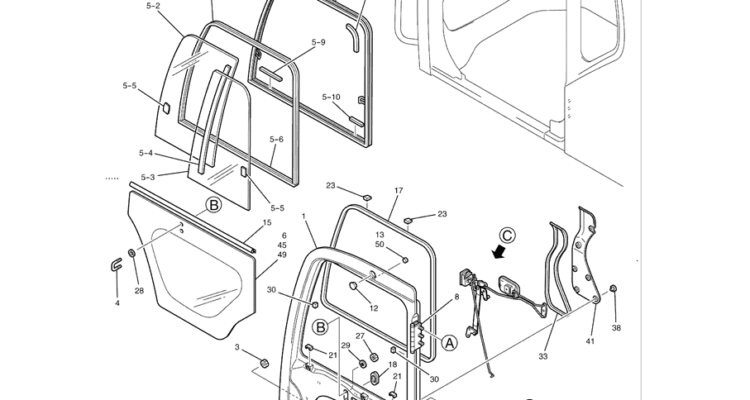

1.054(00) CAB DOOR PAGE 1 OF 2 YN51C00010F2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 34 3 YT02C01230P1 WASHER Star Lock -- ID 06.40 ± 0.30 x OD 12 x Th 0.5mm 33 1 YT02C01295D2 RUBBER 32…

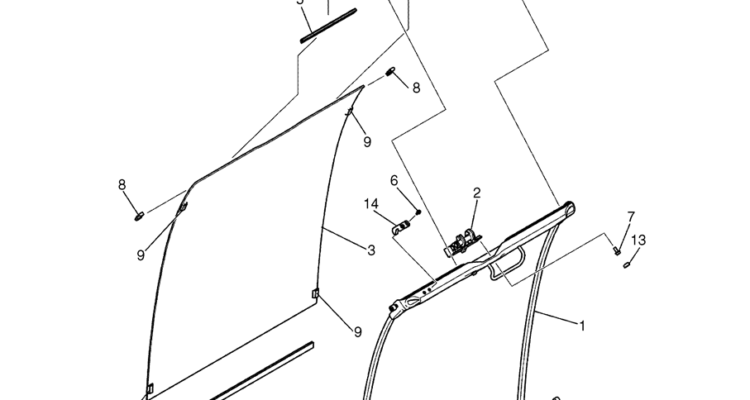

1.053(00) CAB - WINDOW, FRONT YN50C00005F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 14 1 YN50C01207P1 PLATE Plate 13 2 2414Z306D2 CAP (PVC) ID13xOD20x11mm Long 12 4 YT50C01012P1 ROLLER 11 1 YN50C01024P1 SEAL 834.4mm Long (32-55/64 in) 10…

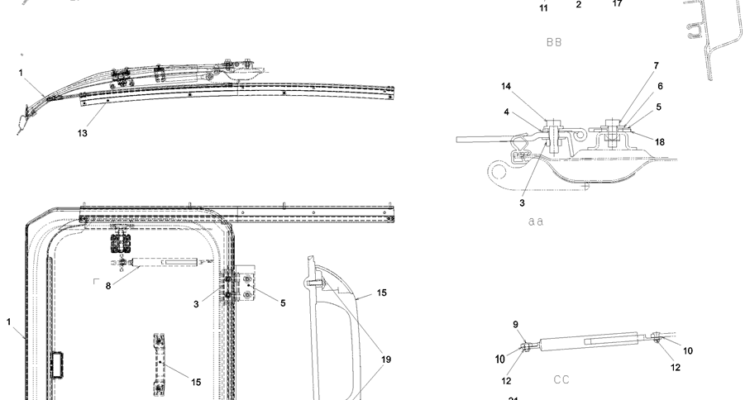

1.052(00) CAB, WINDOW, ROOF YN02C03654F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 21 1 YN02C03669P2 GASKET Used after date 12/08/2006 - Up 21 1 YN02C03669P1 GASKET Used before date - 12/08/2006 20 2 YN02C03656P1 SPACER 19 2 YN02C03766P1…

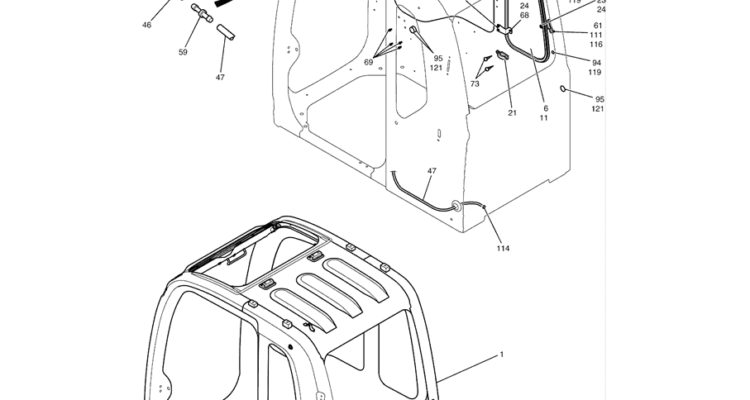

1.051(00) CAB ASSY YN02C00156F1 PAGE 3 OF 3-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 105 1 YN02C03077P1 PLATE PLATE 104 1 YN02C03094P2 STOP STOPPER 103 1 YN02C03095P2 STOP STOPPER 102 1 YN02C03055P1 ADHESIVE STRIKER 101 1 YN02C03056P1 ADHESIVE…

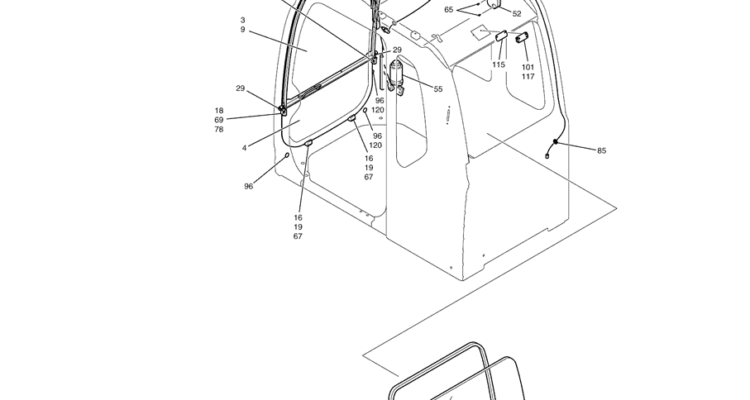

1.050(00) CAB ASSY YN02C00156F1 PAGE 2 OF 3-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 118 4 ZM73C12020 BOLT M12x1.75x20mm (Incls. Washer) 117 8 ZM27C08025 BOLT M08x1.25x25mm (Incls. Washer & Lockwasher) 116 2 HY25X09017G1 WASHER ID 09 x OD…

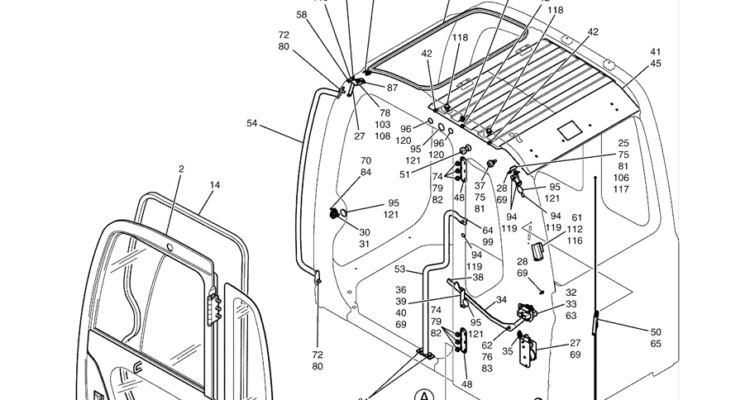

1.049(00) CAB ASSY YN02C00156F1 PAGE 1 OF 3-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 118 4 ZM73C12020 BOLT M12x1.75x20mm (Incls. Washer) 117 8 ZM27C08025 BOLT M08x1.25x25mm (Incls. Washer & Lockwasher) 116 2 HY25X09017G1 WASHER ID 09…

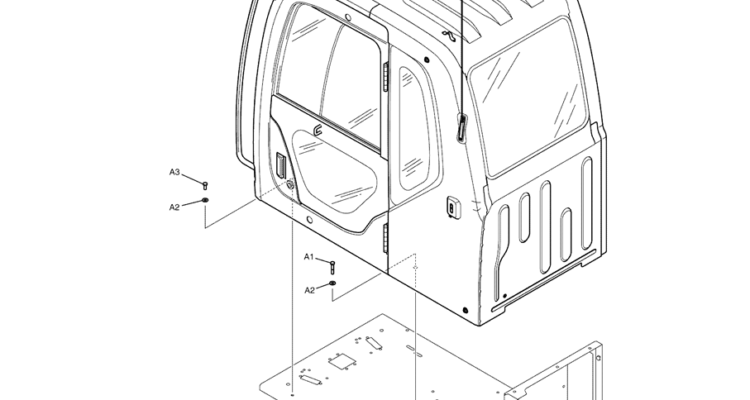

1.048(00) CAB INSTALL YN02C00151F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals C1 1 YN02C00156F1 CAB CAB ASSY B2 2 ZM73C06016 BOLT M06x1.0x16mm (Incls. Washer) B1-3 1 YT54C00003S003 BRACKET B1-2 1 YT54C00003S002 TANK B1-1 1 YT54C00003S001 ELECTRIC MOTOR B1 1…

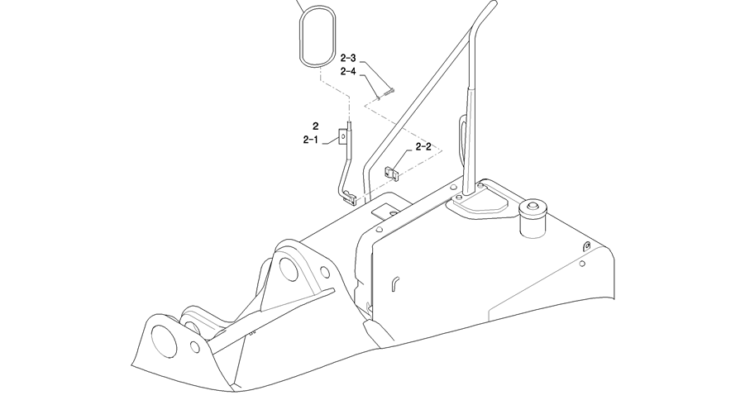

1.047(00) MIRROR INSTAL YN52C00017F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 2-4 2 ZW26X08000 WASHER Lock -- ID 08 x OD 15 x Th 2.0mm 2-3 2 ZS18C08040 SCREW M08x1.25x40mm 2-2 1 2432T4113D2 CLAMP 2-1 1 2416P18523 STAY…
