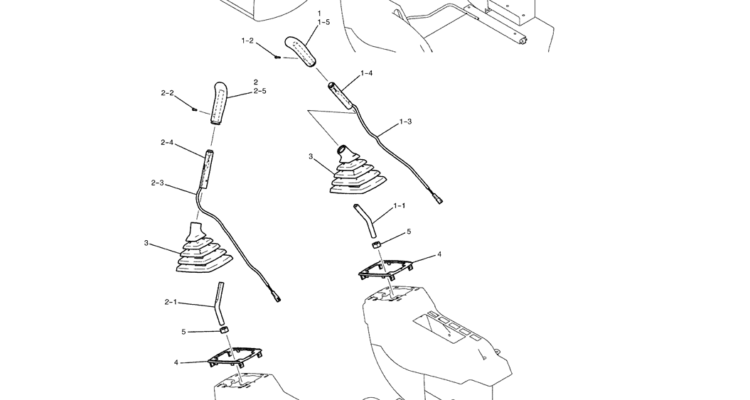

02-26-09(09) GRIP ASSEMBLY (YN03M01870F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 2 ZN18C14011 NUT M14x2.0mm 4 2 YN03M01328P2 PLATE 3 2 YN03M01498P1 BELLOWS 2-5 1 YN03M01867P1 GRIP 2-4 1 YN03M01866P1 CASE 2-3 1 YN50E00017P1 SWITCH ASSY Horn…

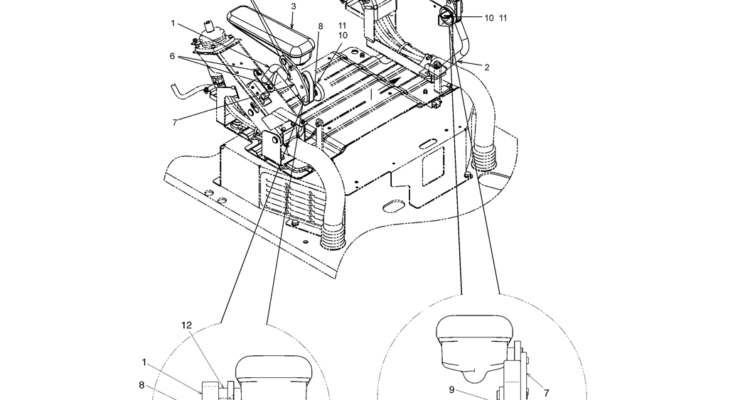

02-26-08(08) ARM REST (YN25M01183F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 12 1 YN25M01218P1 PLATE Not Shown 11 2 ZW16P10000 WASHER ID 10.5 x OD 21 x Th 2.0mm 10 2 YN25M01198P1 HANDLE GRIP 9 1 YN25M01208P1 PLATE…

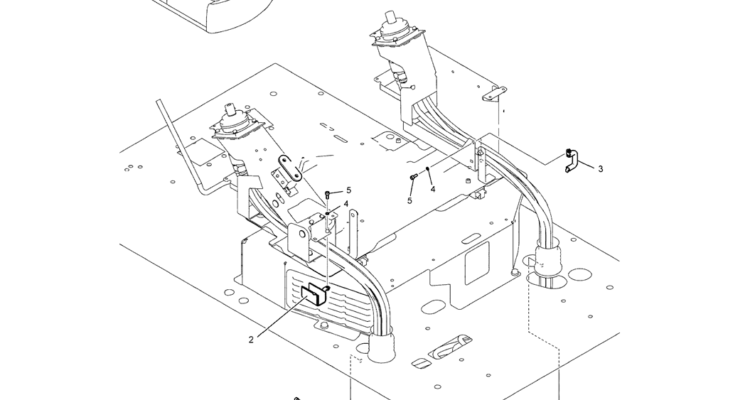

02-26-07(07) CLAMP ASSEMBLY (YN12P01163F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 8 ZS28C06020 SCREW M06x1.0x20mm 3 1 YN12P01173F1 BRACKET 2 1 YN12P01170F1 BRACKET 1 2 YN12P01164F1 BRACKET Clamp Assembly, YN12P01163F1 4 8 ZW26K06000 LOCK WASHER ID 06…

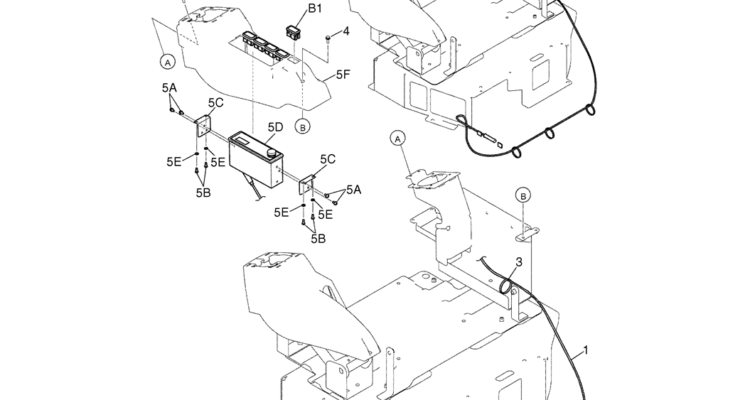

02-26-06(06) RADIO INSTALLATION & SWITCH INSTALLATION (YN54E00010F1 & YN50E00018F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B1 5 YN17M01282P1 CAP Plug -- 43x25x27mm 1 Switch Installation, YN50E00018F1, Incls. Refs. B1 5-F 1 YN03M01942F2 COVER ASSY 5-E 4 ZW16P05000…

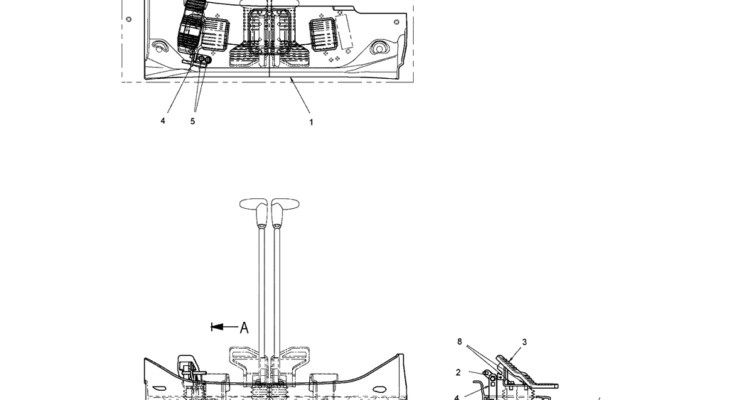

02-26-05(05) PEDAL ASSEMBLY (YN55M00004F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 2 ZM73C08020 BOLT M08x1.25x20mm (Incls. Washer) 4 1 YN03M01684P1 BRACKET 3 1 YN03M01858P1 RUBBER PEDAL PAD 2 1 YN03M01852P1 PEDAL Right Hand 1 1 YN26M00066P1 FOOT…

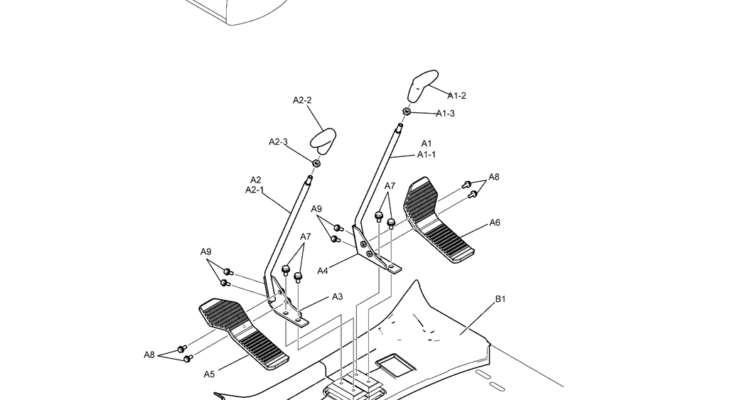

02-26-04(04) LEVER ASSEMBLY, PROPEL (YN50M00015F1 & YN55M00003F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B1 1 YN26M00064P1 FOOT BOARD Pedal Assembly, YN55M00003F1, Incls. Refs. B1 ---------------------------------------- A9 4 ZM73C08016 BOLT M08x1.25x16mm (Incls. Washer) A8 4 ZM22C08025 BOLT M08x1.25x25mm…

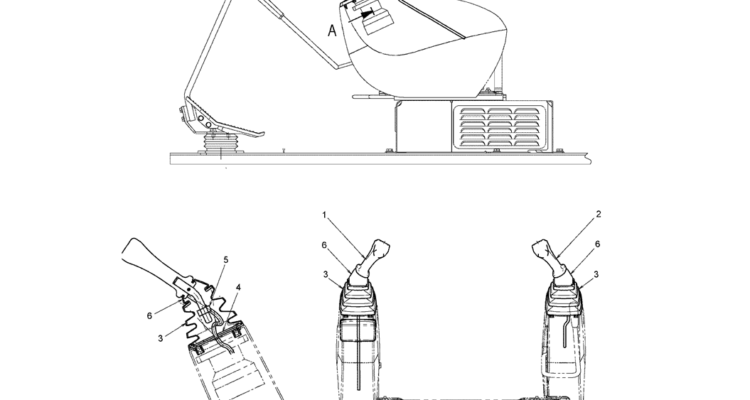

02-26-03(03) GRIP ASSEMBLY (YN03M01968F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 6 2 YN03M01503P1 COVER BLO BOLT Boot 5 2 ZN18C14011 NUT M14x2.0mm 3 2 YN03M01505P1 COVER BLO BOLT Boot 2 1 YN03M01971F1 GRIP Left Hand 1 1…

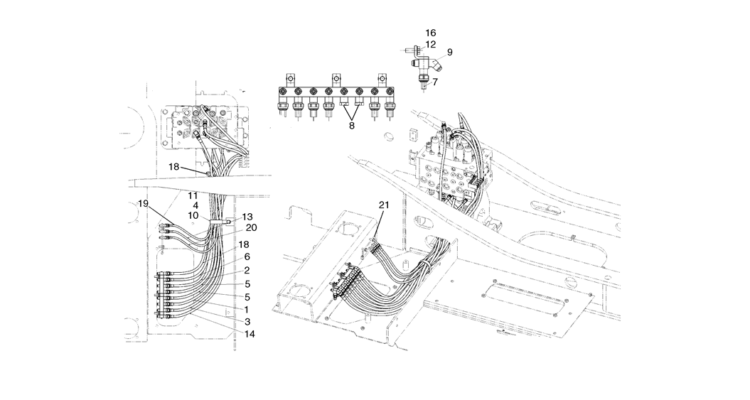

02-26-02(02) CONTROL BOX ASSEMBLY (YN03M00149F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 37 2 YN03M01989P1 WASHER ID 10.5 x OD 20 x Th 2.0mm, Not Shown 36 2 YN03M01988P2 SCREW M10x1.25x20mm, Not Shown 35 1 YN03M01984P2 PILLAR Not…

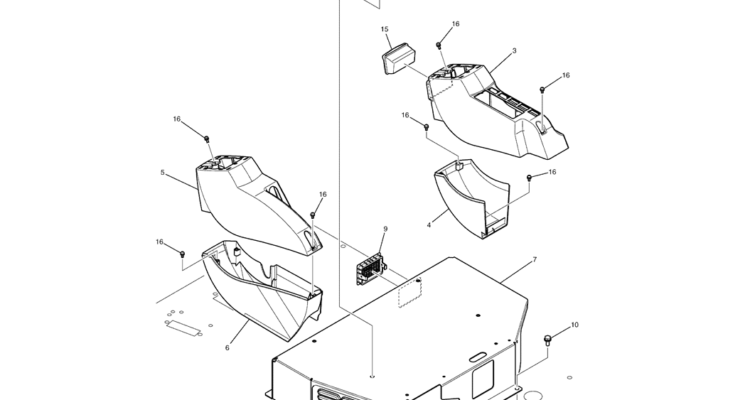

02-26-01(01) CONTROLS, OPERATOR (YN03M00137F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 YN20M01643P1 SPRING Damper Assembly -- Not Shown 15 1 YN02C02055P1 TRAY Ash 14 4 ZS28C08020 SCREW M08x1.25x20mm 13 4 ZW16P08000 WASHER ID 08 x OD 17…

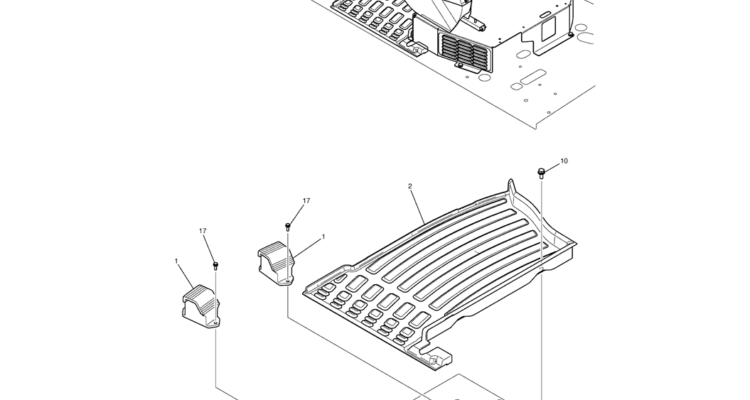

02-26-01(00) CONTROLS, OPERATOR (YN03M00137F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 YN20M01643P1 SPRING Damper Assembly -- Not Shown 17 4 ZM73C08025 BOLT M08x1.25x25mm (Incls. Washer) 2 1 YN26M00065P1 FOOT BOARD 1 2 YN03M01859P2 SUPPORT Operator Control, YN03M00137F1,…
