02-51-01(04) GUARD INSTALLATION (ROTATION 2 WAY FLOW), (CHASSIS SIDE) (LS21C00062F1 & LS21C00046F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 37 4 ZM73C08025 BOLT M08x1.25x25mm (Incls. Washer) 28 2 YN21C03335P1 PLATE 14 1 LS21C02099P1 PILLAR Pillar 12 1 LS21C02019P1…
02-51-01(03) GUARD INSTALLATION (ROTATION 2 WAY FLOW), (CHASSIS TOP) (LS21C00062F1 & LS21C00046F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 51 2 ZM73C10030 BOLT M10x1.50x30mm (Incls. Washer) 1 LS21C01794P1 FOAM INSULATION (Part of LS21C02183F1), Not Shown 1 LS21C01793P1 FOAM…

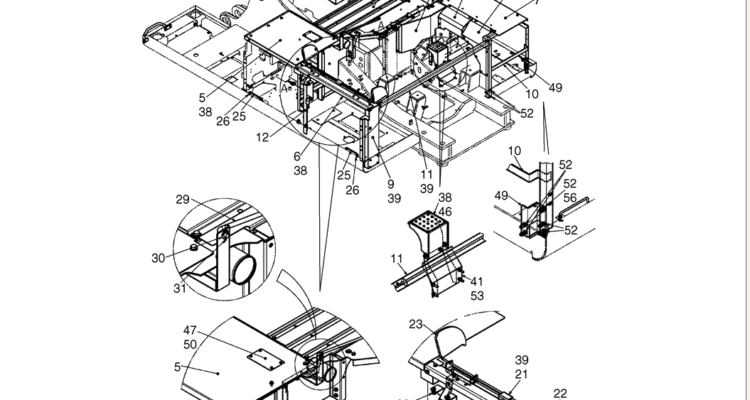

02-51-01(02) GUARD INSTALLATION (ROTATION 2 WAY FLOW), (CHASSIS REAR) (LS21C00062F1 & LS21C00046F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 56 1 HY25X12040G1 WASHER ID 12 x OD 40 x Th 3.2mm 53 4 ZM73C12040 BOLT M12x1.75x40mm (Incls. Washer)…

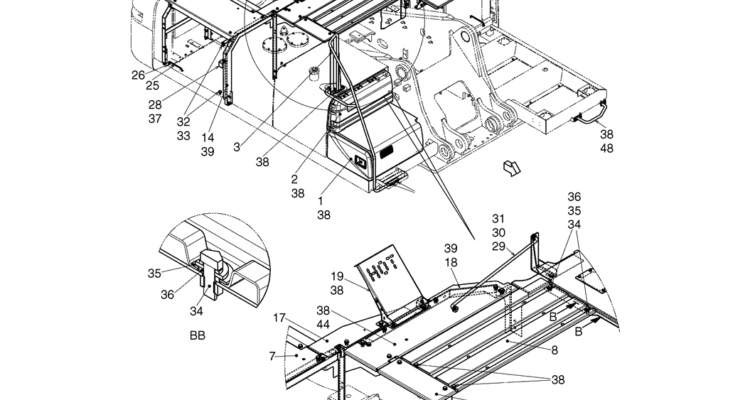

02-51-01(01) GUARD INSTALLATION (ROTATION 2 WAY FLOW), (CHASSIS FRONT) (LS21C00062F1 & LS21C00046F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 55 2 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm 54 2 ZS18C12055 SCREW M12x1.75x55mm 52 9…
02-51-00(08) GUARD INSTALLATION, (GUARD) (LS21C00027F1 & LS21C00044F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 2 3 ZM73C12025 BOLT M12x1.75x25mm (Incls. Washer) Guard Installation, LS21C00044F1, Incls. Refs 1 - 2 Guard Installation (Guard), LS21C00027F1, Page 8 of 8 1…

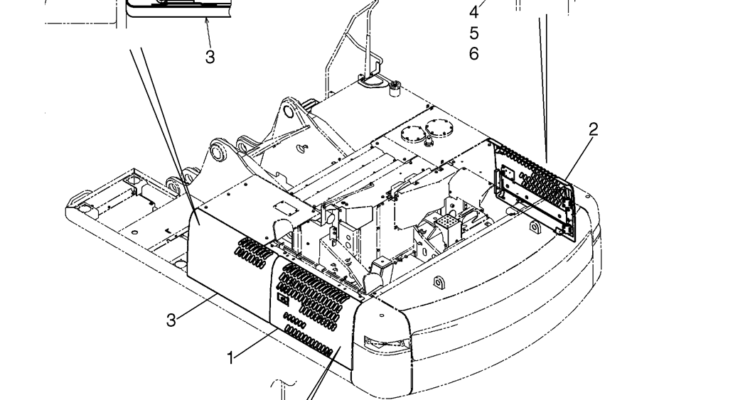

02-51-00(07) GUARD INSTALLATION, (PARTITION) (LS21C00027F1 & LS21C00049F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 7 2 HY25X12040G1 WASHER ID 12 x OD 40 x Th 3.2mm 6 2 ZM73C12030 BOLT M12x1.75x30mm (Incls. Washer) 5 16 ZM73C12025 BOLT M12x1.75x25mm…
02-51-00(06) GUARD INSTALLATION, (SIDE PANELS) (LS21C00027F1 & LS21C00048F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 6 12 2418T12346 WASHER ID 11 x OD 30 x Th 3.2mm 5 12 ZW26X10000 LOCK WASHER ID 10 x OD 18 x…

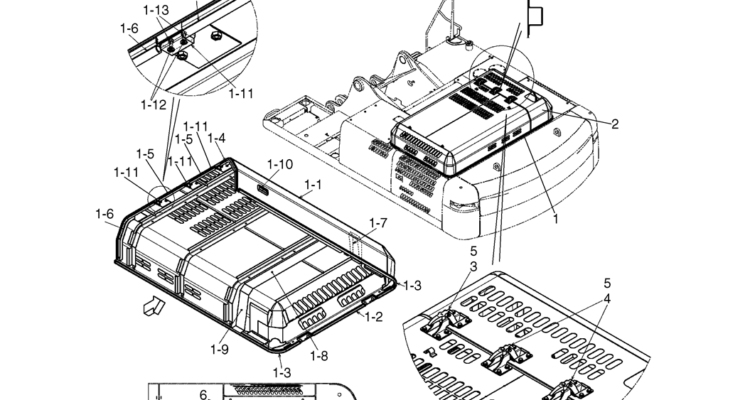

02-51-00(05) GUARD INSTALLATION, (TOP COVER) (LS21C00027F1 & LS21C00047F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 9 2 YN21C03749P1 SHIM (1.6) 8 4 ZN18C12010 NUT M12x1.75mm 7 4 2418T10357 WASHER ID 13 x OD 30 x Th 3.2mm 6…

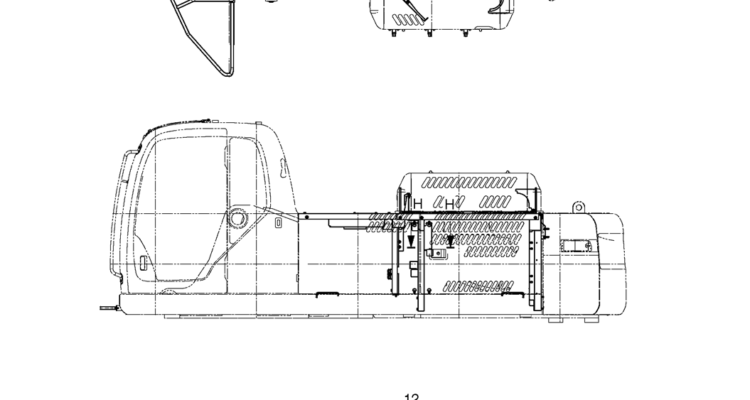

02-51-00(04) GUARD INSTALLATION, (CHASSIS SIDE) (LS21C00027F1 & LS21C00046F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 37 4 ZM73C08025 BOLT M08x1.25x25mm (Incls. Washer) 28 2 YN21C03335P1 PLATE 12 1 LS21C02019P1 Pillar Guard Installation, (Standard) LS21C00046F1, Incls. Refs. 1 -…

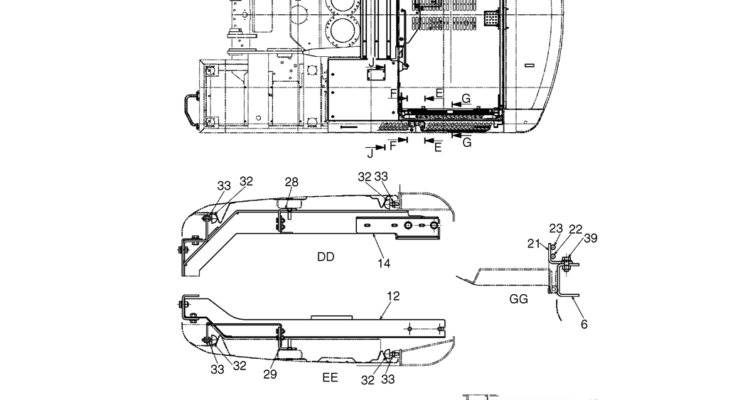

02-51-00(03) GUARD INSTALLATION, (CHASSIS TOP) (LS21C00027F1 & LS21C00046F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 51 2 ZM73C10030 BOLT M10x1.50x30mm (Incls. Washer) 1 LS21C01794P1 FOAM INSULATION (Part of LS21C02183F1), Not Shown 1 LS21C01793P1 FOAM INSULATION (Part of LS21C02183F1),…
