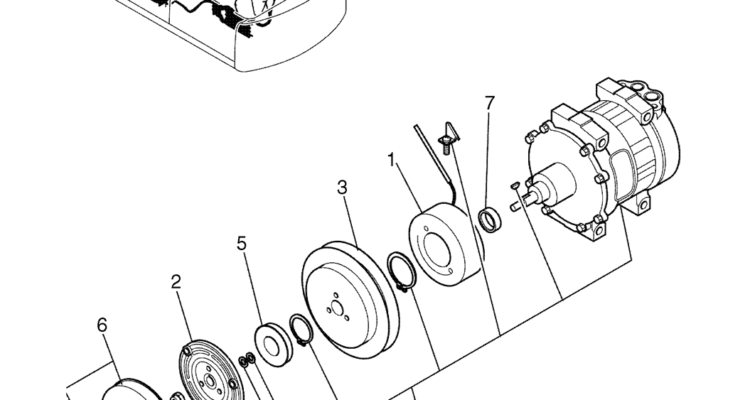

02-69(00) COMPRESSOR ASSEMBLY (YX91V00001F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 7 1 YN91V01001S007 RING 6 1 YN91V01001S006 COVER 4 1 LC91V00001S004 ACCESSORIES 3 1 YN91V01001S003 ROTOR 2 1 YN91V01001S002 PLATE 1 1 LC91V00001S002 PLATE Compressor Assembly, YX91V00001F1…

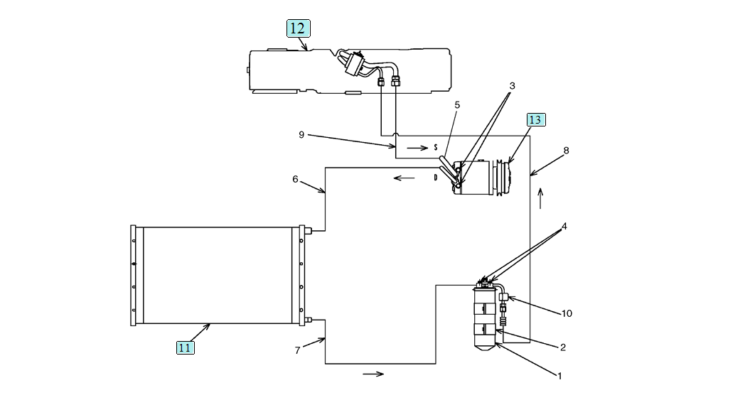

02-68(00) DRYER ASSEMBLY, AIR (LS96V00010F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 13 1 YX91V00001F1 COMPRESSOR See Figure 02-69 12 1 YN20M00113F1 AIR CONDITIONER See Figure 02-67 11 1 YN20M01675P1 CONDENSER See Figure 02-66 2 2445Z1604D6 O-RING (Part…

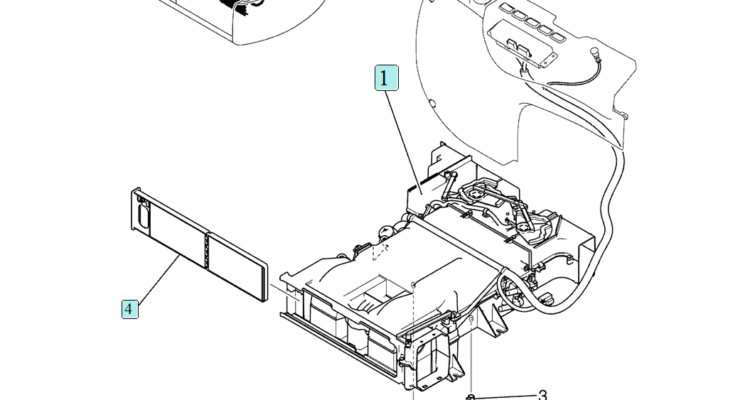

02-67(00) CONDITIONER ASSEMBLY, AIR (YN20M00113F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 1 YN50V01014P1 CAB FILTER Air-Conditioner Element (Inner), 478.5x114x31mm, See Figure 01-01 2 2 LC20M01014D2 HOSE ID 11 x OD 15 x 360mm 1 1 YN20M00107F2…

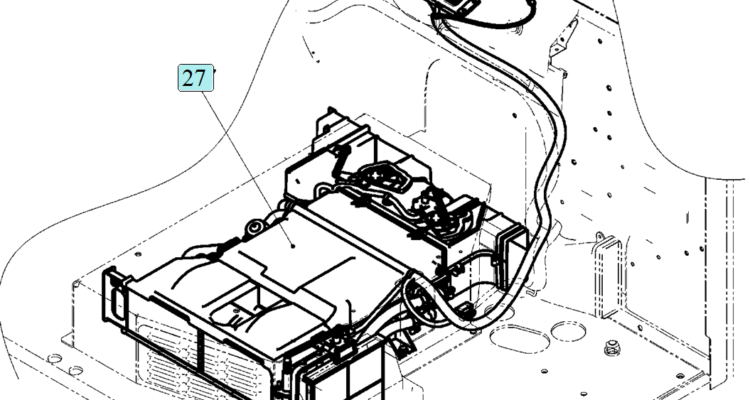

02-66(04) CONDITIONER ASSEMBLY, AIR (ELECTRICAL, FILTER) (LS20M00027F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 59 1 2432R325 CLIP ID 69 x 25mm 58 1 2418Z1333D13 RIGID TUBE 19.5mm ID x 23.8mm OD x 100mm Length, Protective Plastic 4…

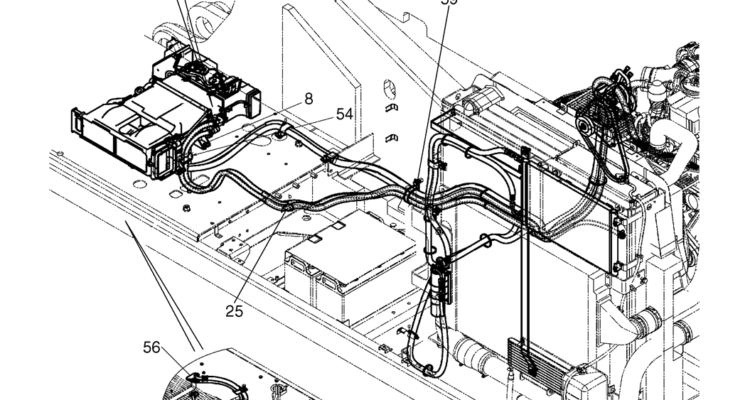

02-66(03) CONDITIONER ASSEMBLY, AIR (HOSES & TUBES) (LS20M00027F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 59 1 2432R325 CLIP ID 69 x 25mm 58 1 2418Z1333D13 RIGID TUBE 19.5mm ID x 23.8mm OD x 100mm Length, Protective Plastic…

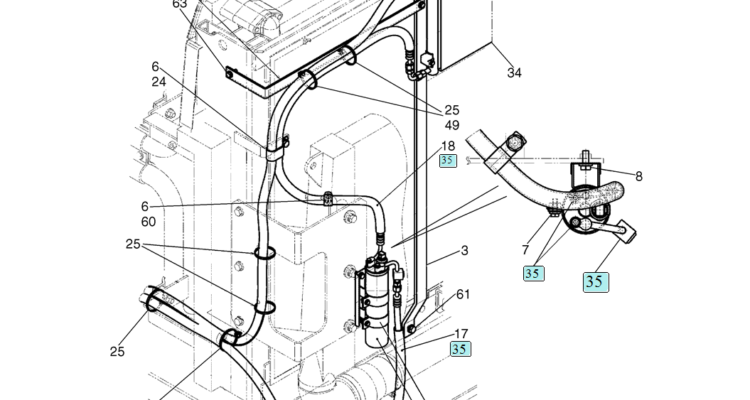

02-66(02) CONDITIONER ASSEMBLY, AIR (DRIER SYSTEM) (LS20M00027F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 63 2 ZM73C08025 BOLT M08x1.25x25mm (Incls. Washer) 62 1 LS20M01121P1 PLATE 61 2 ZM73C10030 BOLT M10x1.50x30mm (Incls. Washer) 60 1 ZC46X25011 CLIP Clamp, Single…

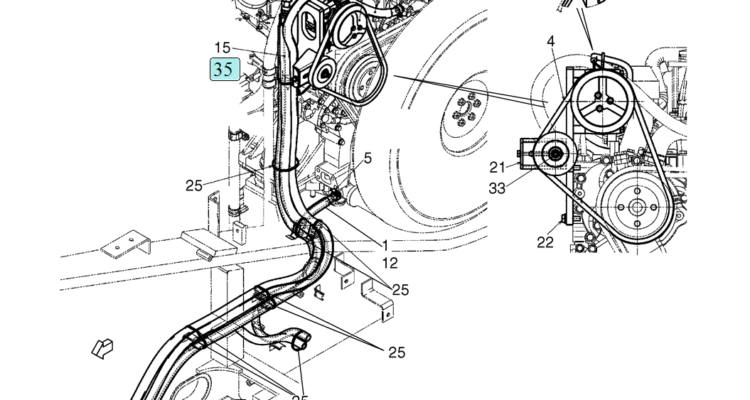

02-66(01) CONDITIONER ASSEMBLY, AIR (BELT, HOSES) (LS20M00027F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 59 1 2432R325 CLIP ID 69 x 25mm 35 1 LS96V00026F1 Assembly, ASN YS07U0791 35 1 LS96V00010F1 RECEIVER-DRYER Assembly, Air --See Figure 02-68, BSN…

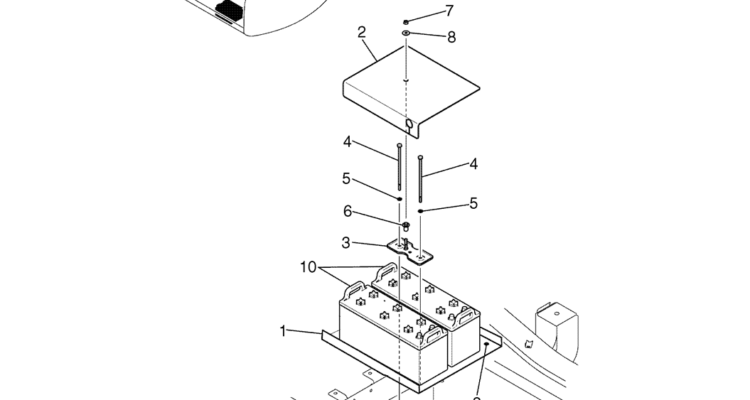

02-65(00) BATTERY ASSEMBLY (LS72E00004F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 10 2 2411U22 BATTERY Battery (4D-2), Purchase Locally 8 1 2418T12346 WASHER ID 11 x OD 30 x Th 3.2mm 7 1 ZN18C10008 NUT M10x1.50mm 6 1…

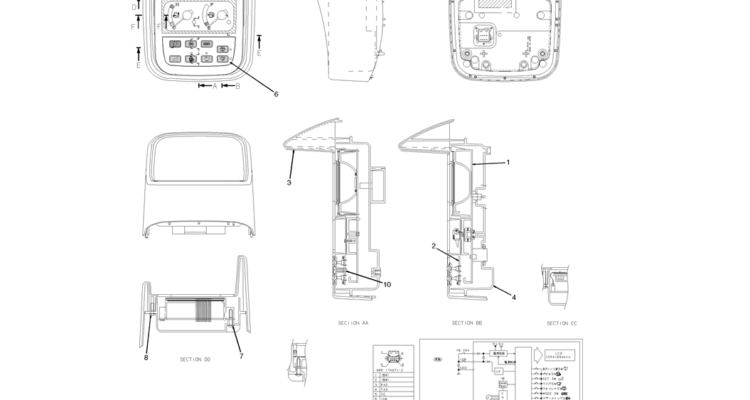

02-64-00(00) GAUGE ASSEMBLY, CLUSTER (YN59S00021F2)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 10 7 YN59S00021S010 SCREW 9 2 YN59S00021S009 SCREW 8 6 YN59S00021S008 SCREW 6 1 YN59S00021S006 PANEL 5 1 YN59S00021S005 BUZZER 4 1 YN59S00021S004 COVER 3 1…

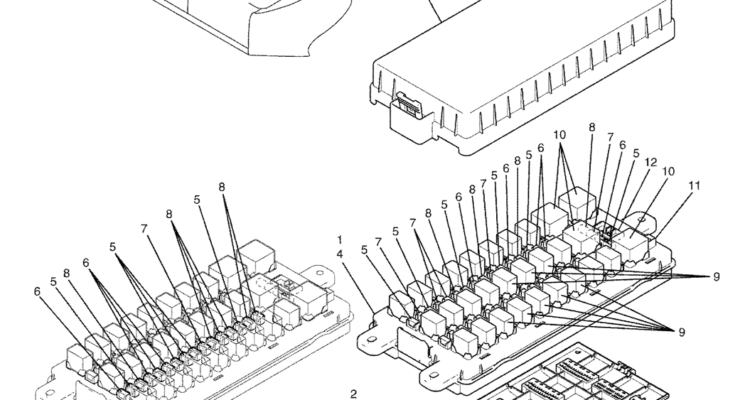

02-63-01(00) RELAY BOX ASSEMBLY (YN24E00016F2)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 13 3 YN24E00016S013 WIRE CONNECTOR 12 1 YN24E00016S012 WIRE CONNECTOR 11 1 YN24E00016S011 HANDLE 10 4 YN24S00012P2 RELAY 9 8 YN24S00010P1 RELAY 8 10 YN24E00016S008 FUSE…
