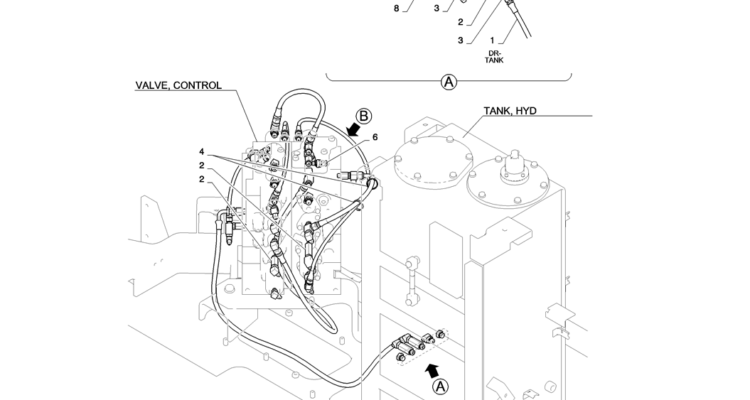

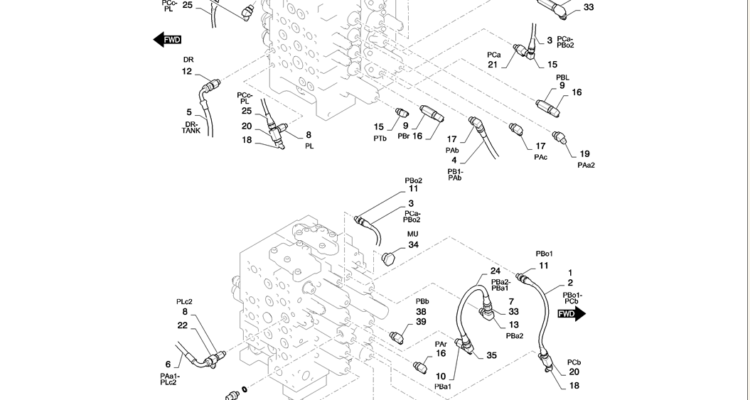

01-026(02)CONTROL LINES, MAIN-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 39 1 ZH32X06000 HYD CONNECTOR 90 38 1 YF06H00024F1 Main 37 1 ZH32X06000 HYD CONNECTOR 90 36 1 YF06H00023F1 Main 35 1 ZH52X06000 TEE 34 1 ZE72X12000…
01-026(01)CONTROL LINES, MAIN-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 2 ZE72X06000 PLUG 7 1 YF06H00029F1 Main 6 1 2444Z2894 HYD CONNECTOR 4 2 PY01P01043D6 CLIP 3 5 ZH42X06000 ELBOW 2 3 2444Z3711 HYD CONNECTOR 1…

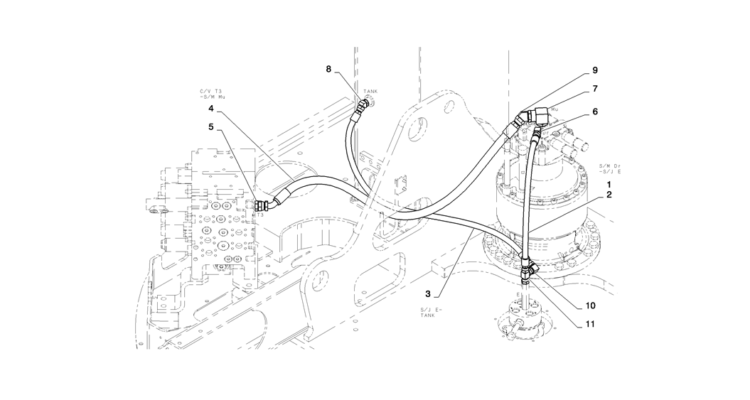

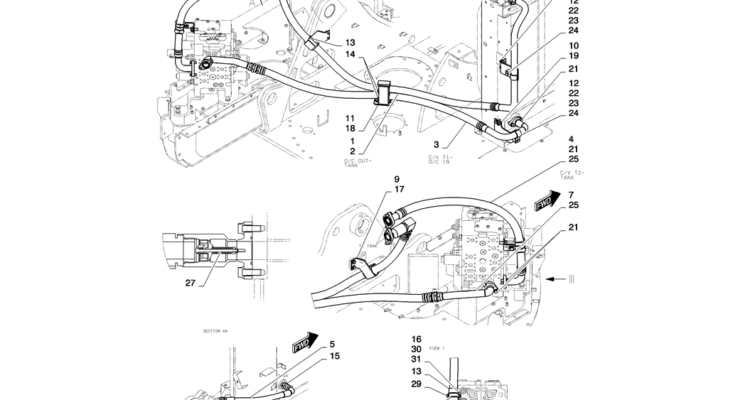

01-025(02)HYD LINES, RETURN-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 11 1 2444R597D3 TEE 10 1 2444R596D3 ELBOW 9 1 ZH42X12016 ELBOW 45 8 1 ZH42X08000 HYD CONNECTOR 45 7 1 HH35R16016G1 ELBOW 5 1 ZH22X12000 HYD…
01-025(01)HYD LINES, RETURN-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 31 1 ZW16H16000 WASHER 30 1 ZS18C16035 SCREW Cap 29 1 ZM73C12025 BOLT Sems 28 1 YW05P01025P1 CLIP 27 1 2436R393S4 VALVE Check 26 1 HH35S24024G1 ELBOW…

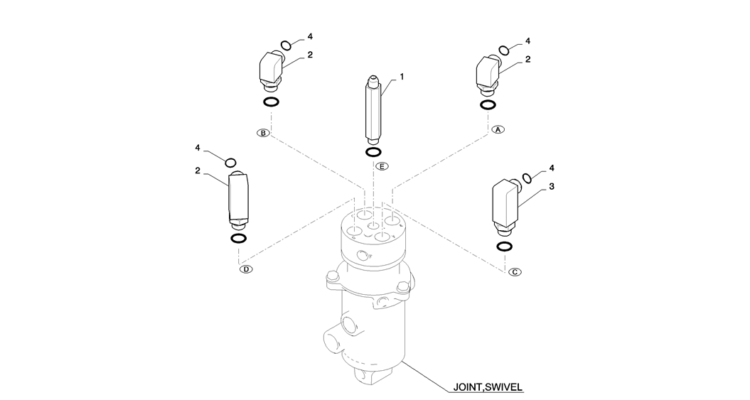

01-024(00)HYD LINES, SWIVEL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 2 2 ZG33F12012 ELBOW 1 1 HH25X08008G2 CONNECTION AR YF19H00003F1 Swivel 3 2 YN03H01172P1 ELBOW 4 4 ZD12A01800 O-RING Kobelco Part Number Information…

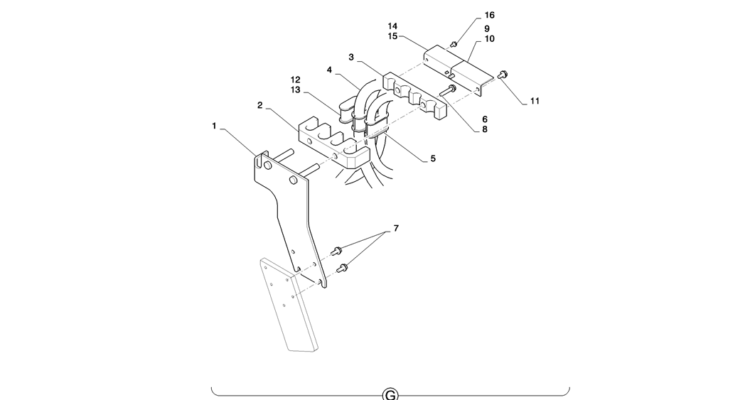

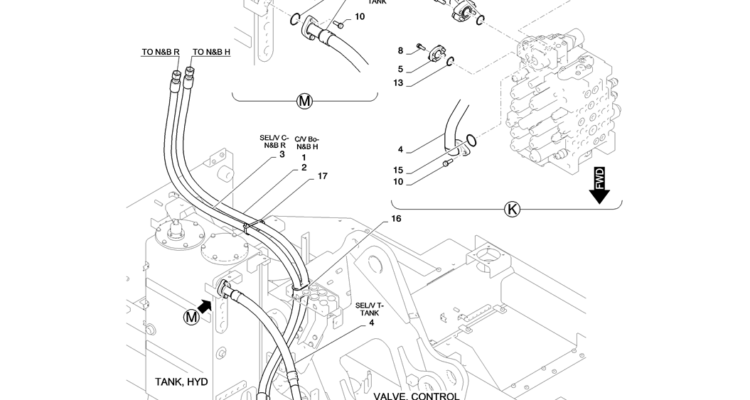

01-022(06)HYD LINES, UPPER (NIBBLER & BREAKER)-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 17 1 YX03H01046P1 CLIP 16 1 YF03H01255P1 RUBBER BAND 15 2 ZD12P04800 O-RING 14 1 ZD12P03800 O-RING 13 2 ZD12P03400 O-RING 12 4 ZW26X14000…

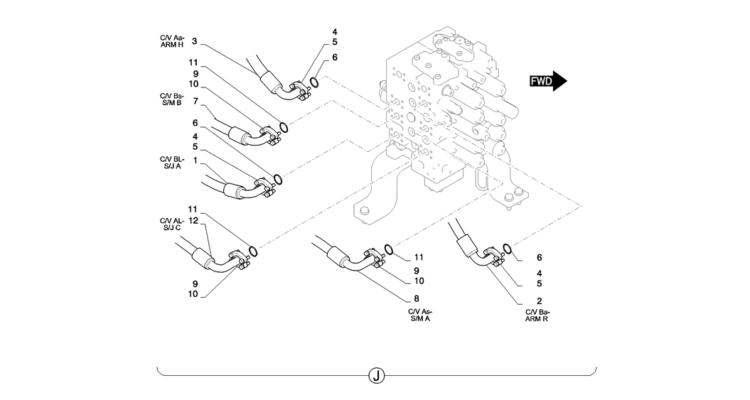

01-022(05)HYD LINES, UPPER (NIBBLER & BREAKER)-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 12 1 LC03H01293D9 HOSE ASSY. 11 3 ZD12P03400 O-RING 10 12 HM83C10035G1 BOLT Sems 9 6 ZE12X16000 CLAMP Half 8 1 YF03H01194D8 HOSE ASSY.…

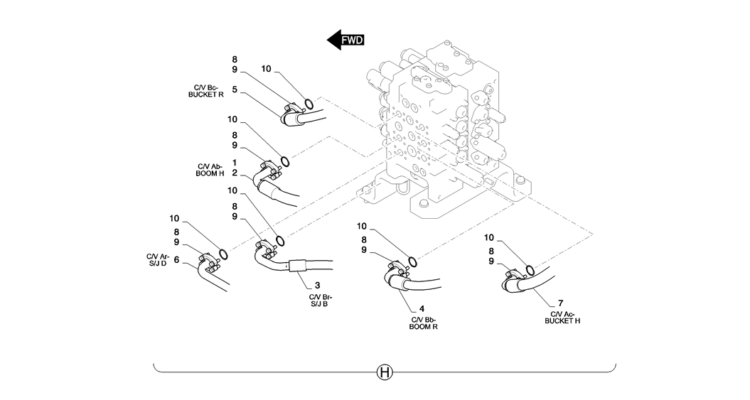

01-022(04)HYD LINES, UPPER (NIBBLER & BREAKER)-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 10 9 ZD12P03400 O-RING 9 36 HM83C10035G1 BOLT Sems 8 18 ZE12X16000 CLAMP Half 7 1 YF03H01199D5 HOSE 6 1 YF03H01195D1 HOSE 5…
01-022(03)HYD LINES, UPPER (NIBBLER & BREAKER)-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 16 2 ZM73C08016 BOLT Sems 15 1 YF03H01218P1 PLATE 14 1 YF03H00043F1 Upp. 13 1 YF03H01246P1 RUBBER BAND 12 1 YF03H00040F1 Upp. 11 2…

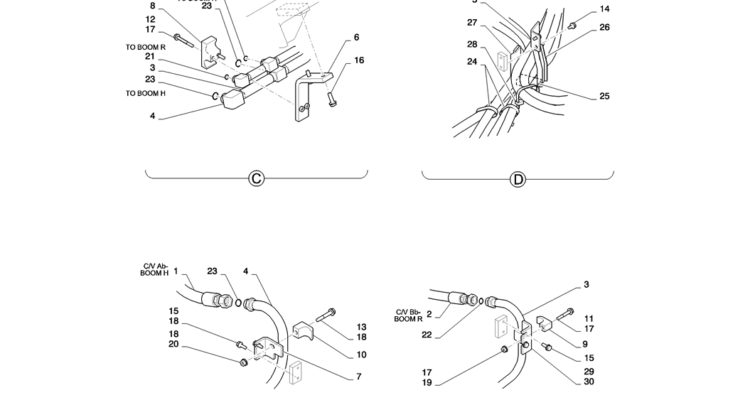

01-022(02)HYD LINES, UPPER (NIBBLER & BREAKER)-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 30 1 YF03H01197P1 SUPPORT 29 1 YF03H00059F1 Upp. 28 1 YX03H01046P1 CLIP 27 1 YF03H01287D1 RUBBER PAD 26 1 YF03H01286D2 RUBBER PAD 25 1…
