01-050(04)CONTROLS, OPERATORS-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 15 2 ZM66C06016 BOLT Sems 14 3 PY01P01043D3 CLIP 13 1 YN17M01072P1 CABLE 12 1 YN54E01029P1 BRACKET 11 4 YN17M01468P1 SELF-TAP SCREW 10 4 2420R1089D1 BOLT Sems 9…

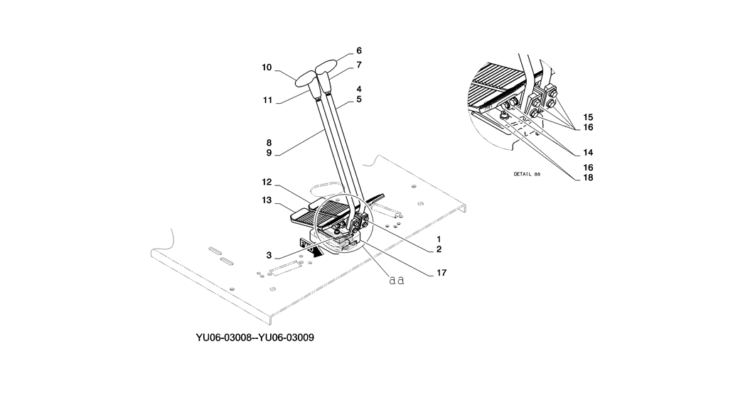

01-050(05)CONTROLS, OPERATORS-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 18 4 ZS28C08016 SCREW Cap 17 1 YT26M00031P1 FLOOR MAT 16 8 ZW16H08000 WASHER 15 4 ZS18C08014 SCREW Cap 14 4 ZM22C08025 BOLT Sems 13 1 YN55M01010P1 PEDAL…

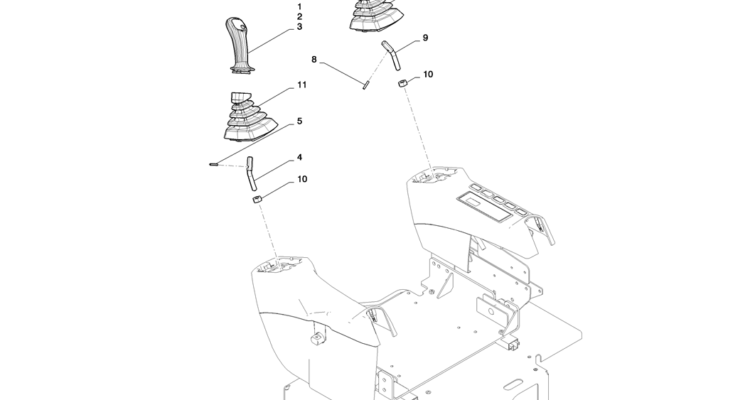

01-050(03)CONTROLS, OPERATORS-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 11 2 YN03M02114P1 BELLOWS Boot 10 2 ZN18C14011 NUT 9 1 ZP26D05028 PIN Spring 8 1 YN03M02124P1 LEVER 7 1 PW03M01960F1 HANDLE Assy. 6 1 YN03M02123F1 HANDLE GRIP…

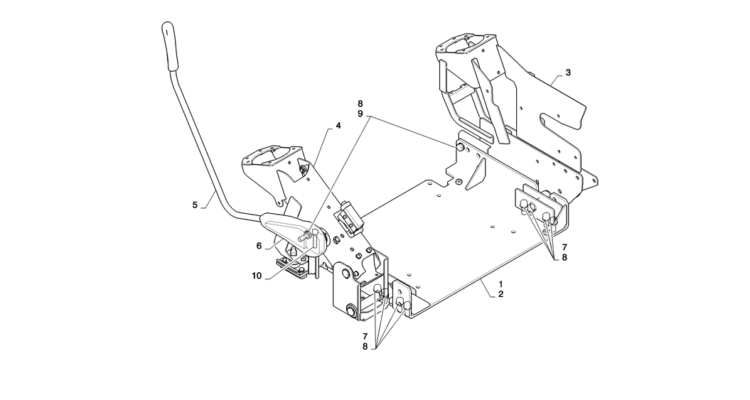

01-050(02)CONTROLS, OPERATORS-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 10 1 YN03M02203P1 CAPTIVE WASHER SCREW 9 2 YN03M02205P1 SCREW 8 10 YN03M02204P1 LOCK WASHER 7 8 YN03M02202P1 6 1 YN03M02169P1 COVER 5 1 YN03M02168P1 LEVER ASSY &…

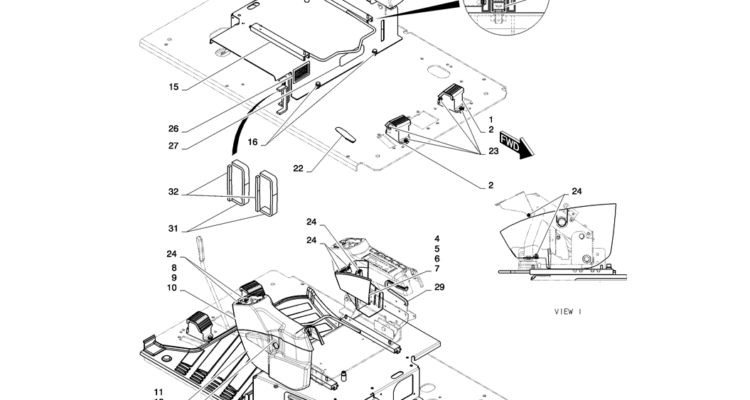

01-050(01)CONTROLS, OPERATORS-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 32 2 YY20M01289P1 INSULATION , ASN YU06-03011 31 2 YY20M01288P1 INSULATION , ASN YU06-03011 30 1 ZW16K12000 WASHER 29 1 YT02C01515D7 GASKET Trim 28 1 ZS28C12050 SCREW Cap…

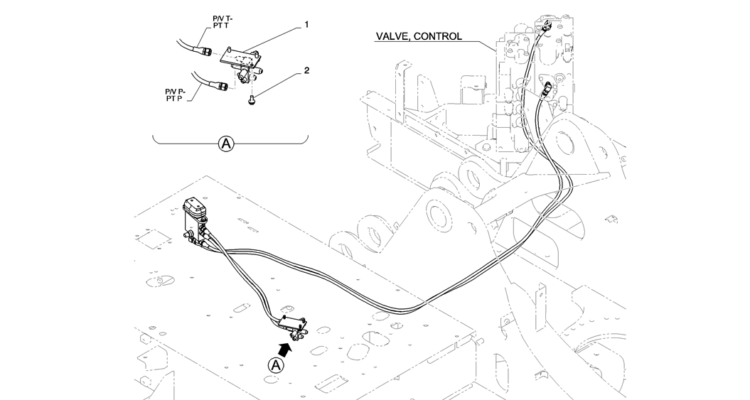

01-042(00)CONTROL LINES, BLOCK-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 2 3 ZM73C08020 BOLT Sems AR YF64H00056F1 Block 1 1 YN64H01337P1 BLOCK Kobelco Part Number Information parts manager pro is the electronic parts…
01-041(00)CONTROL LINES, BLOCK-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 1 YN64H01336P1 BLOCK AR YF64H00055F1 Block 2 3 ZM73C08020 BOLT Sems Kobelco Part Number Information parts manager pro is the electronic parts…

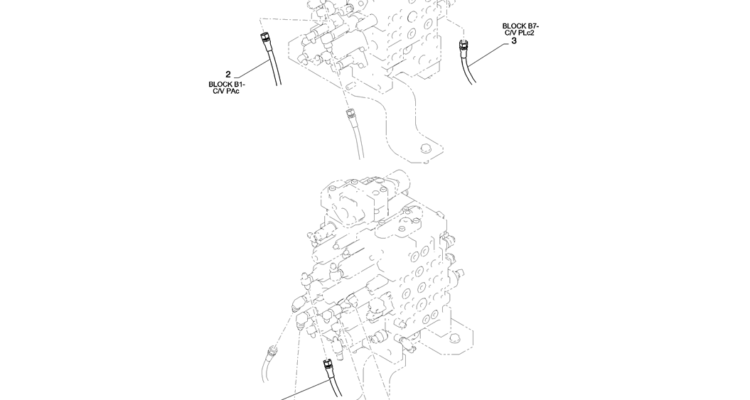

01-040(03)CONTROL LINES, BLOCK-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 6 1 2420R537D066 HOSE 5 1 2420R537D068 HOSE Assy. 3 1 2444R941D25 HOSE 2 1 2420R537D140 HOSE ASSY. 1 1 2420R537D066 HOSE AR YF64H00052F1 Block 4 1…

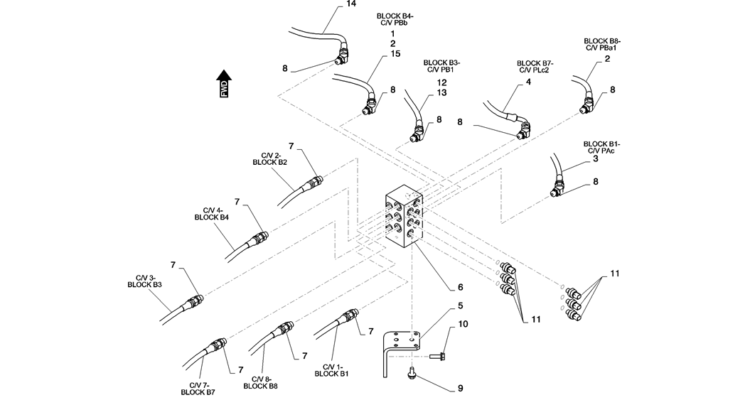

01-040(02)CONTROL LINES, BLOCK-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 15 1 2420R537D066 HOSE 14 1 2420R537D068 HOSE Assy. 13 1 2420R537D042 HYDRAULIC HOSE 9.60 mm ID x 420.00 mm 12 1 YF64H00069F1 Block 11 6 YX52S00013P1…

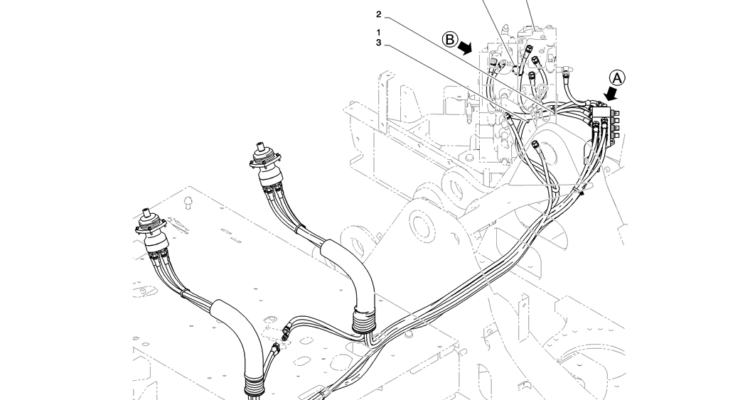

01-040(01)CONTROL LINES, BLOCK-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 3 1 YN13E01375P1 CLIP 1 1 PY01P01043D8 CLIP AR YF64H00052F1 Block 2 2 PY01P01043D6 CLIP Kobelco Part Number Information parts manager pro is…
