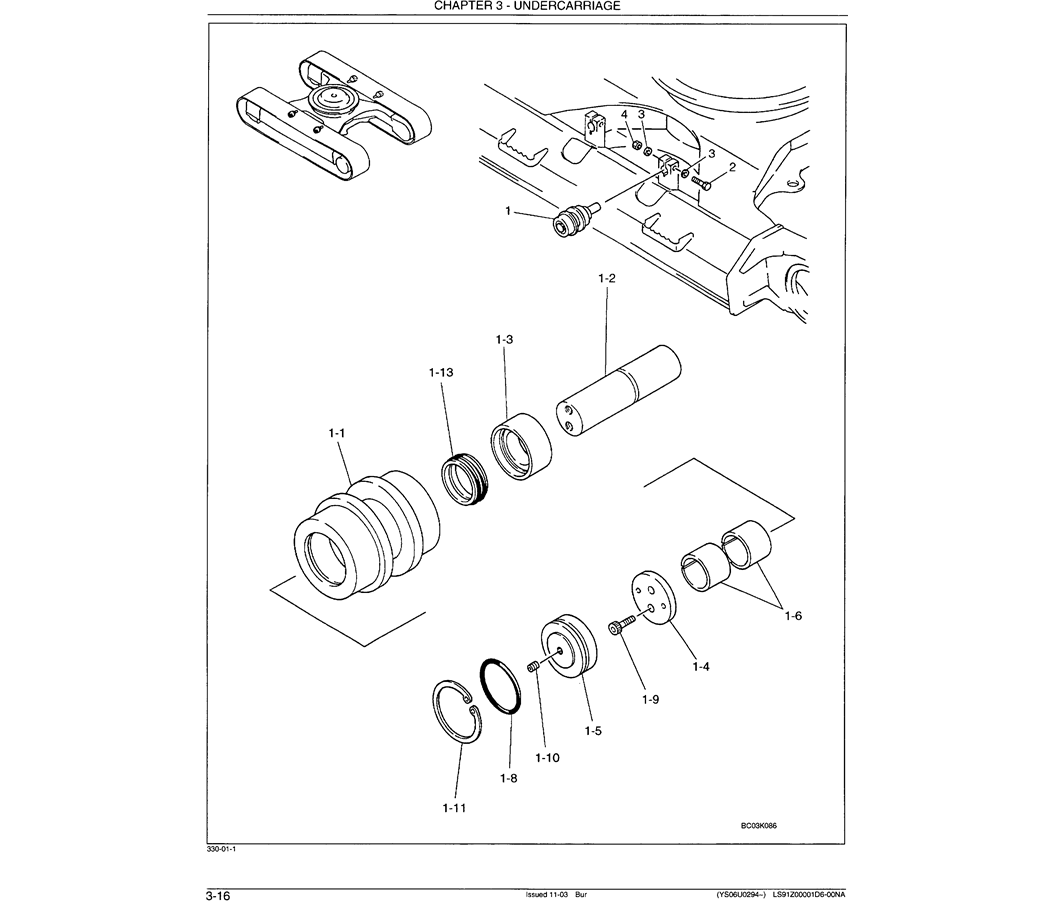

02-008 UPPER ROLLER ASSEMBLY

02-008 UPPER ROLLER ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

02-008 UPPER ROLLER ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals
02-008 UPPER ROLLER ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

4 4 ZN13C20016 NUT M20x2.50mm
3 8 ZW13H20000 WASHER ID 20 x OD 40 x Th 4.5mm
2 4 ZS13C20150 SCREW M20x2.50x150mm
1-13 1 2445R440F1 SEAL FLOATING
1-11 1 ZR26X10500 SNAP RING Retaining — ID 15.7 x OD 16.2 x Th 1.0mm
1-10 1 ZE82T04000 PLUG 1/4″ PT
1-9 1 ZS23C12030 SCREW M12x1.75x30mm
1-8 1 ZD11P09500 O-RING ID 94.6 ± 0.81 x OD 105mm
1-6 2 2405T1778 BUSHING ID 65 x OD 70 x 50mm Long
1-5 1 2414P10930 GUARD COVER
1-4 1 2418T22934 PLATE
1-3 1 2418P25285 RING COLLAR
1-1 1 2413N490 ROLLER
1 4 24100N7035F3 ROLLER ASSY
AR LC64D00003F1 ROLLER
1-2 1 2410P815 SHAFT OD 66 x 243.5mm Long
