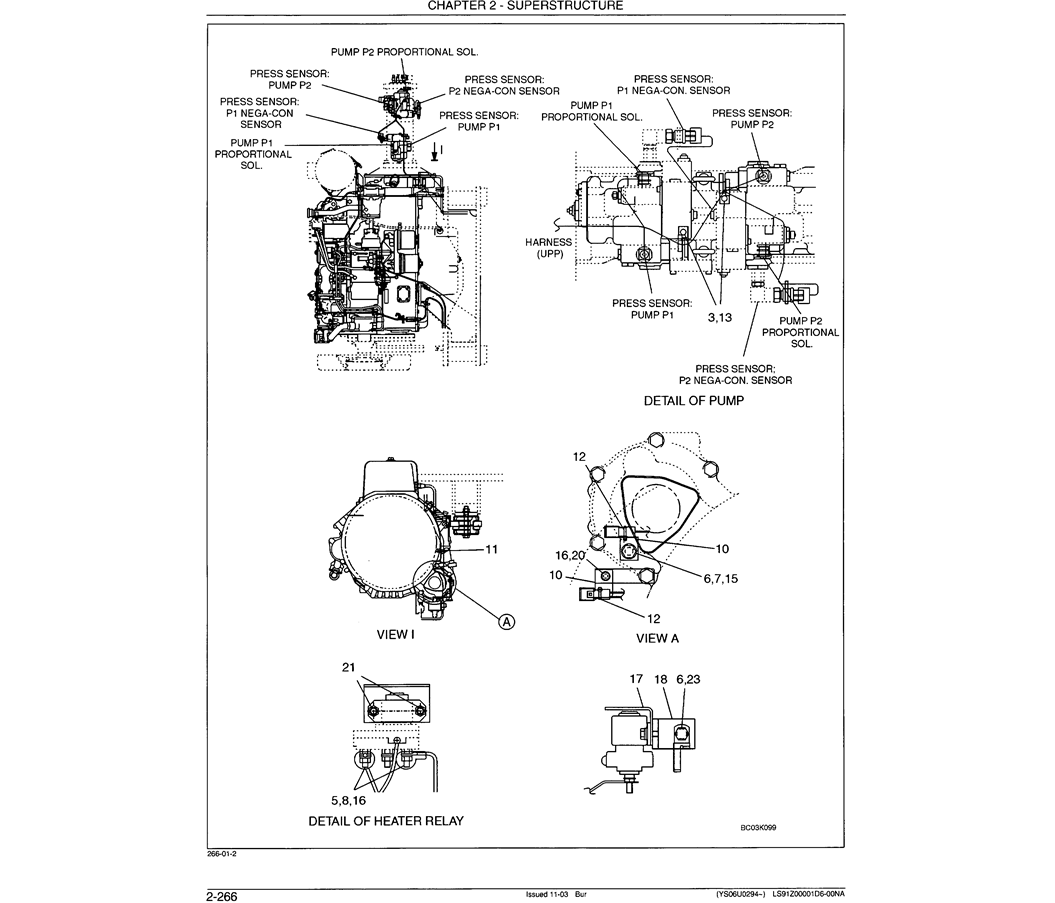

01-127 HARNESS ASSY ENGINE P/N LS16E00005F2

01-127 HARNESS ASSY ENGINE P/N LS16E00005F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

01-127 HARNESS ASSY ENGINE P/N LS16E00005F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals
01-127 HARNESS ASSY ENGINE P/N LS16E00005F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

23 1 ZS18C10025 SCREW M10x1.50x25mm
22 1 2414Z199D025 GUARD Hose — 250mm Long (9-27/32 in)
21 2 ZM66C06016 BOLT M06x1.0x16mm (Incls. Washer & Lockwasher)
20 1 ZS18C06014 SCREW M06x1.0x14mm
18 1 2418T27916 PLATE
17 1 2414T5367 GUARD COVER
16 3 ZW16X06000 WASHER ID 06 x OD 12.5 x Th 1.6mm
15 1 ZS18C10014 SCREW M10x1.50x14mm
13 2 2432R233D2 CLIP 37x12x40mm
12 2 PY01P01043D3 CLIP Wire Ties — 188mm Long
11 2 2432R233D3 CLIP 50x16x60mm
10 2 LS16E01006P1 U-BRACKET
8 2 ZN18C06005 NUT M06x1.0mm
5 2 ZW26X06000 LOCK WASHER ID 06 x OD 07 x Th 1.5mm
3 2 ZM11C08016 BOLT M08x1.25x16mm (Incls. Lockwasher)
AR LS16E00005F2 HARNESS ASSY, ENGINE
7 1 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm
6 2 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm
