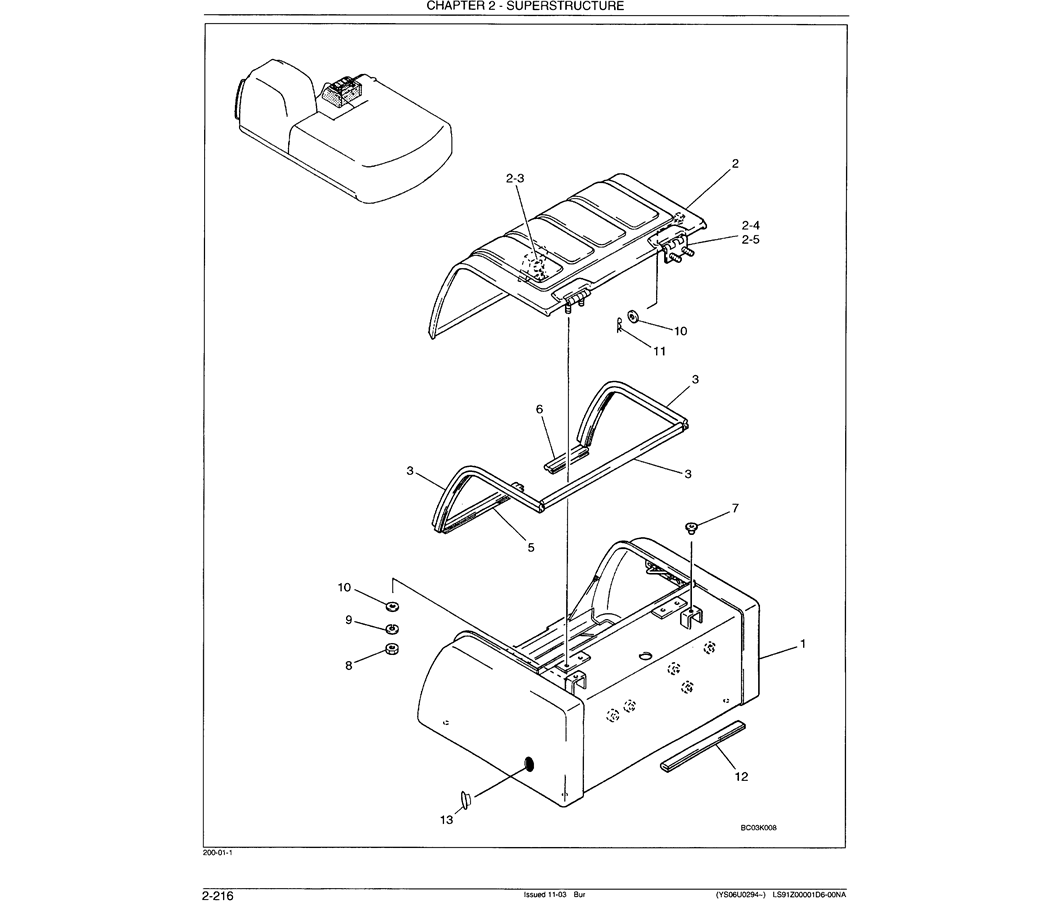

01-102 COVER ASSY
01-102 COVER ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals
13 1 2420R429D11 GROMMET
12 1 YN21C01135D1 SEAL SHEET RUBBER
11 1 2419R9D2 COTTER PIN OD 08mm x 27.7mm Long
10 5 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm
9 4 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm
8 4 ZN18C10008 NUT M10x1.50mm
6 1 YN21C01712D4 WEATHERSTRIP 165mm Long (6-1/2 in)
5 1 YN21C01712D5 WEATHERSTRIP 365mm Long (14-3/8 in)
3 3 YN21C01712D1 WEATHERSTRIP 710mm Long (27-61/64 in)
2-5 4 ZS11C10025 CAP Screw — M10x1.50x25mm
2-4 2 2420T4450 HINGE
2-3 1 YW21C01357P1 LOCK
2 1 LC21C01087P2 COVER
1 1 LC21C01163P1 BOX
1 LC21C01164F1 COVER ASSEMBLY
7 2 YN21C01681P1 BUSHING
