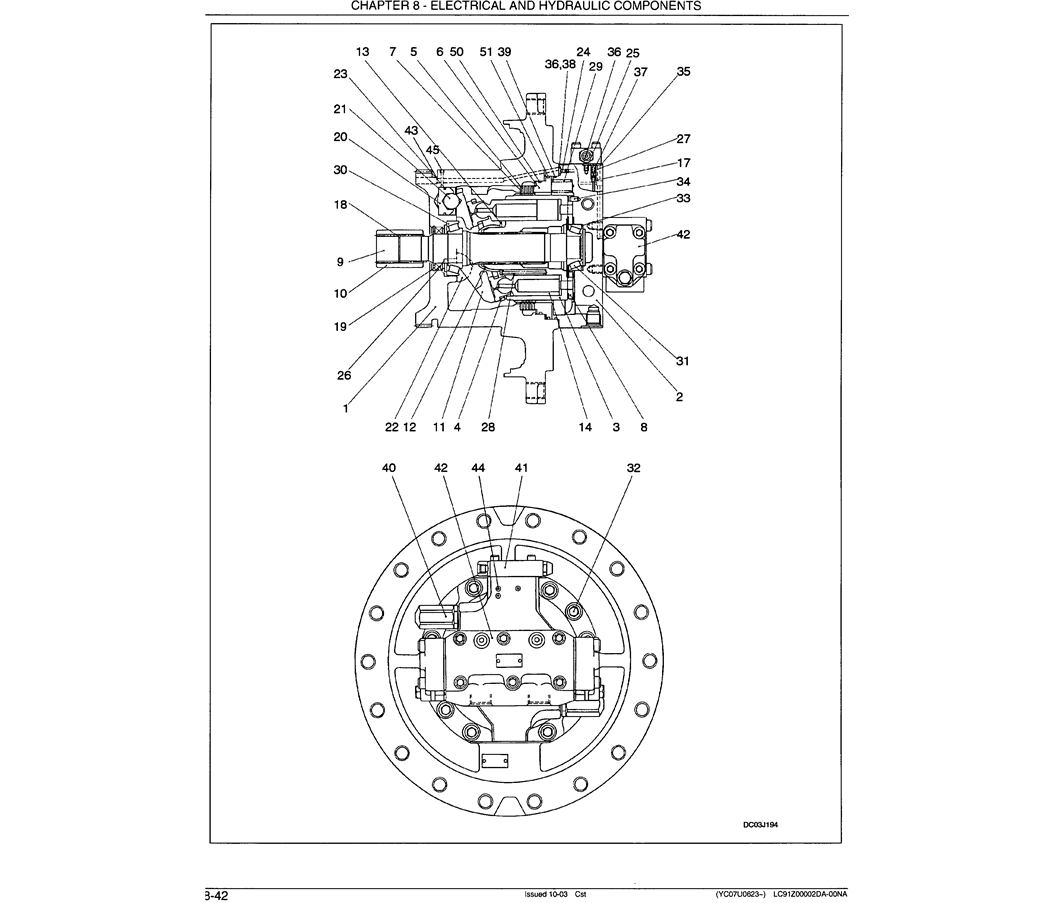

07-018 PROPELLING MOTOR ASSEMBLY (COMPONENTS)

07-018 PROPELLING MOTOR ASSEMBLY (COMPONENTS)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

07-018 PROPELLING MOTOR ASSEMBLY (COMPONENTS)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
07-018 PROPELLING MOTOR ASSEMBLY (COMPONENTS)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

1 2441U1030R300 REPAIR KIT Includes 11, 20 – 22
1 2441U1030R200 REPAIR KIT Includes 4, 12
1 2441U1030R100 REPAIR KIT Includes 14
51 1 LS15V00004S053 RING
50 1 LS15V00004S052 SNAP RING
45 1 2436U1749S17 PLUG
44 4 2436U1427S25 PLUG
43 1 2436U279S3 PLUG
42 1 LC23V00001F1 HYDRAULIC VALVE ASSEMBLY – Brake
41 1 2436R1924F1 VALVE ASSEMBLY – Pilot
40 2 2436R1923F1 VALVE ASSEMBLY – Overload Relief
39 1 2441U1040S40 GASKET O-RING
38 1 2436R612S13 O-RING
37 3 ZD12P00900 O-RING ID 08.80 ± 0.17 x OD 12mm
36 2 ZD12P00800 O-RING ID 07.80 ± 0.16 x OD 11mm
35 3 ZD12P00600 O-RING ID 05.80 ± 0.15 x OD 09mm
34 1 2441U1040S35 PIN
33 2 2441U1040S34 SHIM
32 10 ZS23C18050 SCREW M18x2.50x50mm
31 1 2441U1040S32 BEARING ASSY
30 1 2441U1040S31 BEARING
29 14 YN15V00003S030 SPRING
28 9 2441U1040S29 SPRING
27 3 2441U783S30 SPRING
26 1 2441U1040S27 RING SEAL, OIL
25 1 2436U1123S14 ORIFICE
24 1 PR30V00010S014 ORIFICE
23 1 2441U1040S24 GASKET SEAL, PISTON
22 2 NSS NOT SERVICED SEPARATELY PIVOT
21 1 LC15V00007S021 BALL BALL
20 1 LC15V00007S020 PISTON PISTON
19 1 2441U1040S19 COVER RING, RETAINING
18 1 ZR26X04000 RING Retaining — ID 40 x OD 43.5 x Th 1.8mm
17 3 2441U783S20 VALVE CHECK
14 9 NSS NOT SERVICED SEPARATELY PISTON ASSYEMBLY
13 1 2441U1040S13 BUSHING SEAT, SPRING
12 1 NSS NOT SERVICED SEPARATELY JOINT, BALL
11 1 NSS NOT SERVICED SEPARATELY PLATE, SHOE
10 1 2441U1040S10 COUPLING JOINT
8 1 LC15V00007S008 PLATE VALVE
7 5 2441U1040S7 PLATE SEPARATOR
6 1 2441U1040S6 KIT PISTON, BRAKE
5 4 2441U1040S5 PLATE FRICTION
4 1 NSS NOT SERVICED SEPARATELY RETAINER, SHOE
3 1 2441U1030S3 BLOCK CYLINDER
2 1 2441U1030S2 BODY COVER
1 1 2441U1030S1
AR LC15V00007F3 HYDRAULIC MOTOR ASSEMBLY, PROPELLING
9 1 2441U1040S9 SHAFT
