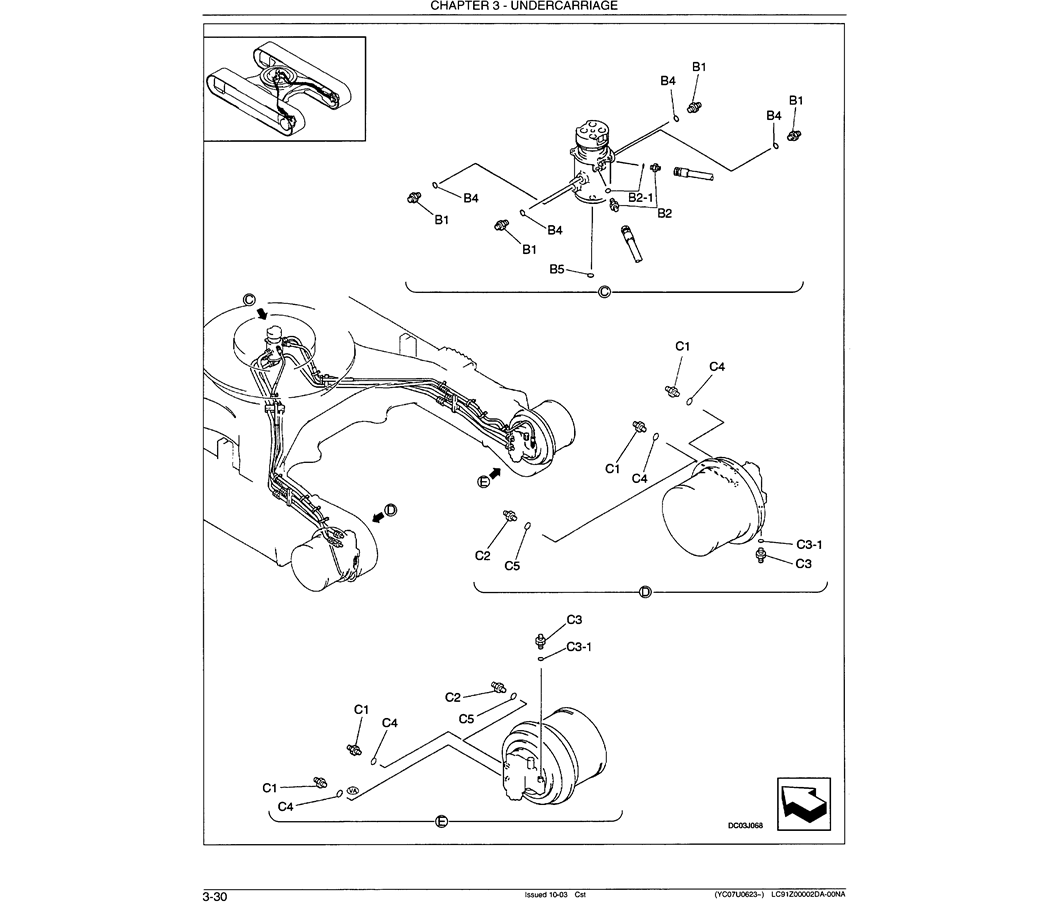

02-018 LOWER HYDRAULIC LINES (SWIVEL AND PROPEL)
02-018 LOWER HYDRAULIC LINES (SWIVEL AND PROPEL)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
C5 2 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm
C4 4 ZD12P02900 O-RING ID 28.70 ± 0.29 x OD 35mm
C3-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
C3 2 ZH22X04000 HYD CONNECTOR 1/4″PFx36mm Long (Incls. O-Ring ZD12P01100)
C2 2 ZA23F22008 HYD CONNECTOR 1/2″ PT – M30x1.50 x 43mm Long
C1 4 ZA23F35016 HYD CONNECTOR 1″ PF – M45x1.50x55mm Long
AR LC12H00001F1 HYDRAULIC LINES, PROPEL
B5 2 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm
B4 4 ZD12P02900 O-RING ID 28.70 ± 0.29 x OD 35mm
B3 2 ZA23F22008 HYD CONNECTOR 1/2″ PT – M30x1.50 x 43mm Long
B2-1 2 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
B1 4 ZA23F35016 HYD CONNECTOR 1″ PF – M45x1.50x55mm Long
AR LC19H00012F1 HYDRAULIC LINES, SWIVEL
B2 2 ZH22X04000 HYD CONNECTOR 1/4″PFx36mm Long (Incls. O-Ring ZD12P01100)
