02-39-00(04) CONTROL LINES, VALVE (STANDARD) (LS64H00129F1)

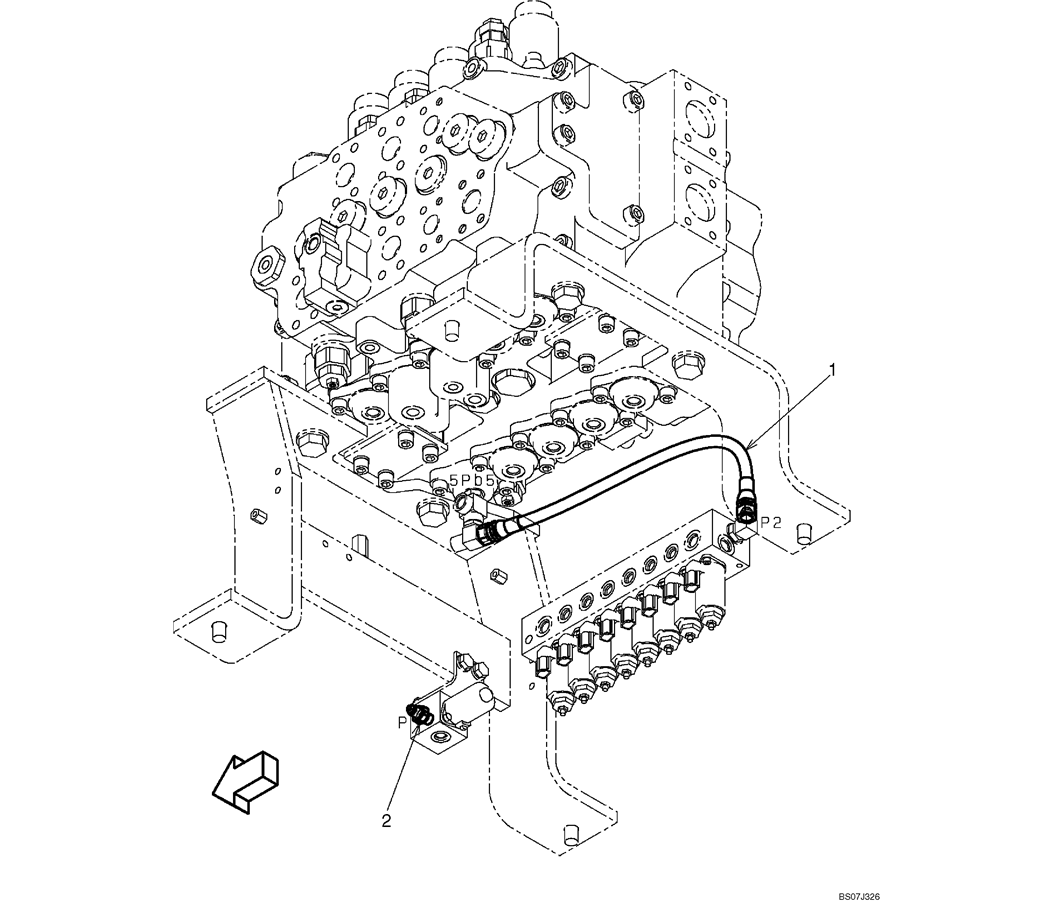

02-39-00(04) CONTROL LINES, VALVE (STANDARD)
(LS64H00129F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
1 ZD12P01100 O-RING (Part of HH25X04004G2), ID 10.80 ± 0.18 x OD 15mm, Not Shown
1 1 2420R537D050 HOSE 500.00 mm
Valve Control Lines, LS64H00058F1, Incls. Refs. 1 & 2
Valve Control Lines (Standard), LS64H00129F1, Page 4 of 4
2 1 HH25X04004G2 HYD CONNECTOR (Incls. O-Ring ZD12P01100)
