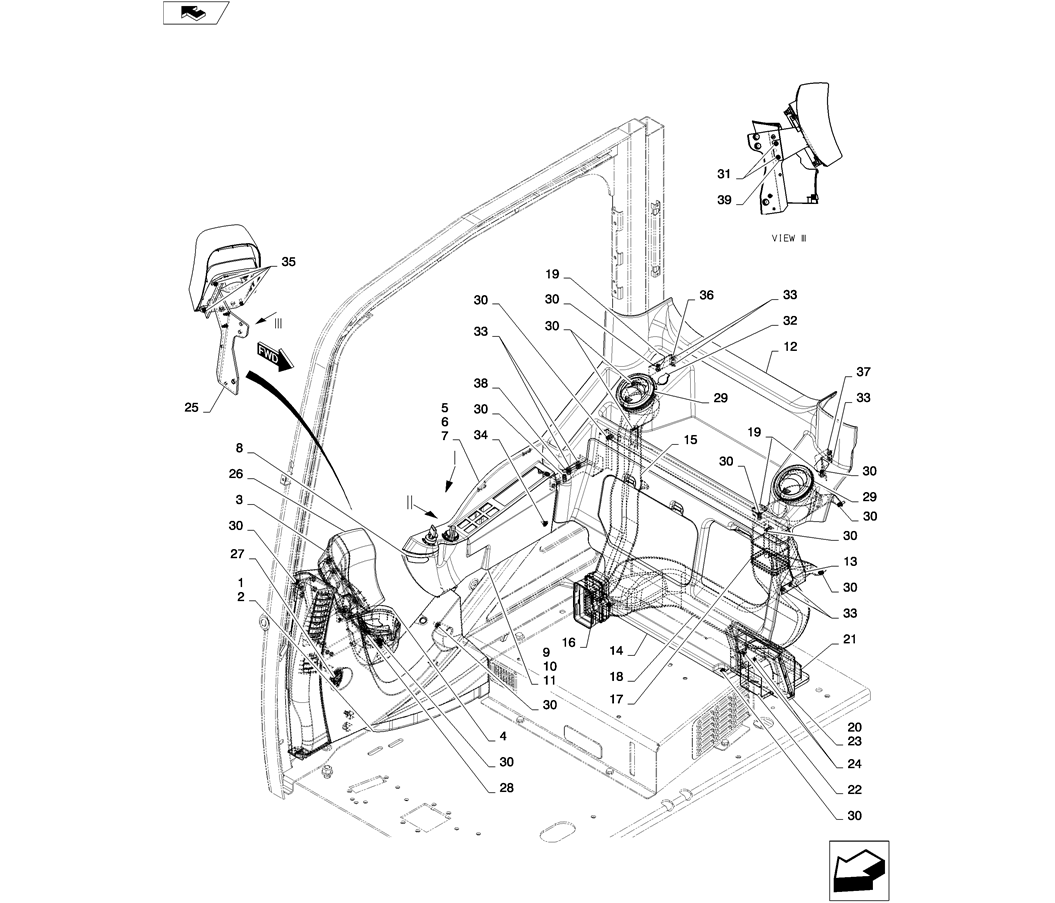

01-046(01) PANEL ASSEMBLY, INSTRUMENT (NIBBLER & BREAKER)
01-046(01) PANEL ASSEMBLY, INSTRUMENT (NIBBLER &
BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals
39 1 YN17M01512P1 PLATE
38 1 YY17M01044P1 BRACKET
37 1 YY17M01042P1 BRACKET
36 1 YY17M01040P1 BRACKET
35 4 ZM61C05012 BOLT Sems
34 1 YN17M01162D2 SCREW Sems
33 14 ZM73C06016 BOLT Sems
32 1 YN81S01002P1 SEAT/SLOT Socket
31 5 ZM66C06016 BOLT Sems
30 16 ZM66C06020 BOLT Sems
29 2 YN20M01791P1 CONVEYOR Grille
28 1 PU20M01002P1 CONVEYOR Grille
27 1 LQ58S00002P1 HOURMETER
26 1 YN59S00021F3 CONTROL MONITOR Gauge, Cluster
25 1 YN17M01480P2 BRACKET
24 2 ZS32T50012 SCREW Cross Tapping
23 1 YB20M01057P1 FOAM INSULATION
22 1 YB20M01055P1
21 1 YB20M01056P1
20 1 YB20M01054F1 DUCT Assy.
19 3 YY20M01259P1 CAP
18 1 YY20M01255F1 DUCT
17 1 YY20M01254P1 AIR DUCT
16 1 YY20M01253F1 AIR DUCT Assy.
15 1 YY20M01252F1 AIR DUCT Assy.
14 1 YY17M01038F1 COVER ASSY
13 1 YY17M01037P1 BRACKET
12 1 YY17M01036F1 COVER ASSY
11 4 YN17M01508P1 BUSHING
10 1 YN17M01493P1
9 1 YN17M01436F1 COVER Assy.
8 1 YN17M01437P1 PLUG Cap
7 2 YN17M01508P1 BUSHING
6 1 YN17M01494P1
5 1 YN17M01438F1 COVER Assy.
3 1 YN17M01464P2 COVER
2 1 YY17M01034F1 COVER ASSY
1 1 YY17M00066F1 Instrum
AR YY17M00070F1 Instrum, (Nibbler & Breaker)
4 1 YN17M01435F1 SUPPORT Holder Assy.
