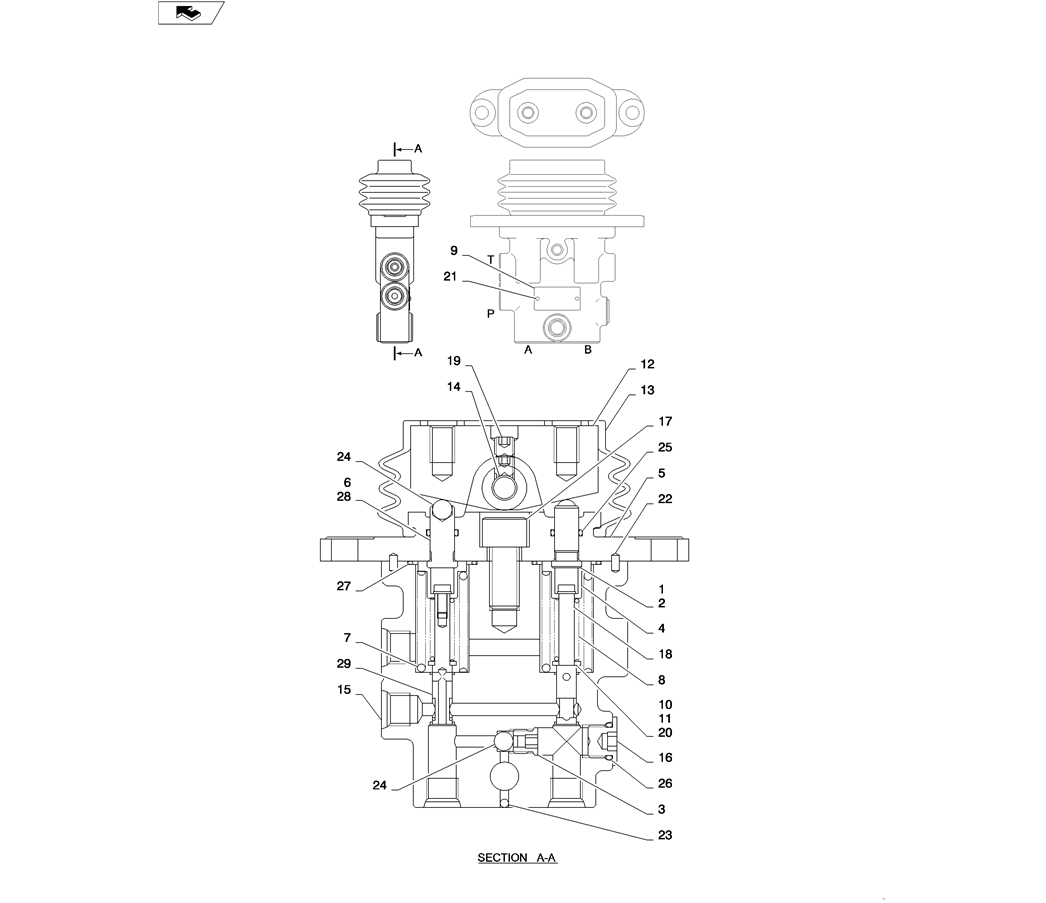

01-034(02) CONTROL LINES, REMOTE (NIBBLER & BREAKER)
01-034(02) CONTROL LINES, REMOTE (NIBBLER & BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals
1 YN30V00080R200 REPAIR KIT Consists Of Item: 15(1), 23(1), 29(2)
29 2 NSS NOT SERVICED SEPARATELY Spool
28 2 2436U1354S26 REPAIR KIT Piston Assy
27 2 YN30V00080S029 O-RING
26 1 ZD12P01100 O-RING
25 2 ZD11P01000 O-RING
24 3 2436U1487S37 BALL
23 1 NSS NOT SERVICED SEPARATELY Ball
22 2 2436U2888S24 PIN
21 2 YN30V00080S023 SCREW
20 2 2436U1354S16 WASHER
19 2 ZS83C08008 SCREW
18 2 2436U1354S15 BOLT
17 1 ZS23C12025 SCREW Cap
16 1 2436U2412S26 PLUG
15 2 NSS NOT SERVICED SEPARATELY Body
14 1 YN30V00022S017 PIN
13 1 YN30V00022S016 BOOT
12 1 YN30V00022S015 CAM
10 2 2436U1354S25 SHIM 0.2
9 1 NSS NOT SERVICED SEPARATELY Name Plate
8 2 YR30V00013S009 SPRING
7 1 YR30V00004S012 SPRING
6 7 NSS NOT SERVICED SEPARATELY Piston
5 1 2436U1354S6 COVER
4 2 2436U1354S5 SLEEVE
3 1 2436U2755S4 SEAT
2 2 2436U1487S7 SHIM 0.2
1 2 2436U1142S13 SHIM 0.1
11 1 YR30V00013S012 SHIM 0.1
