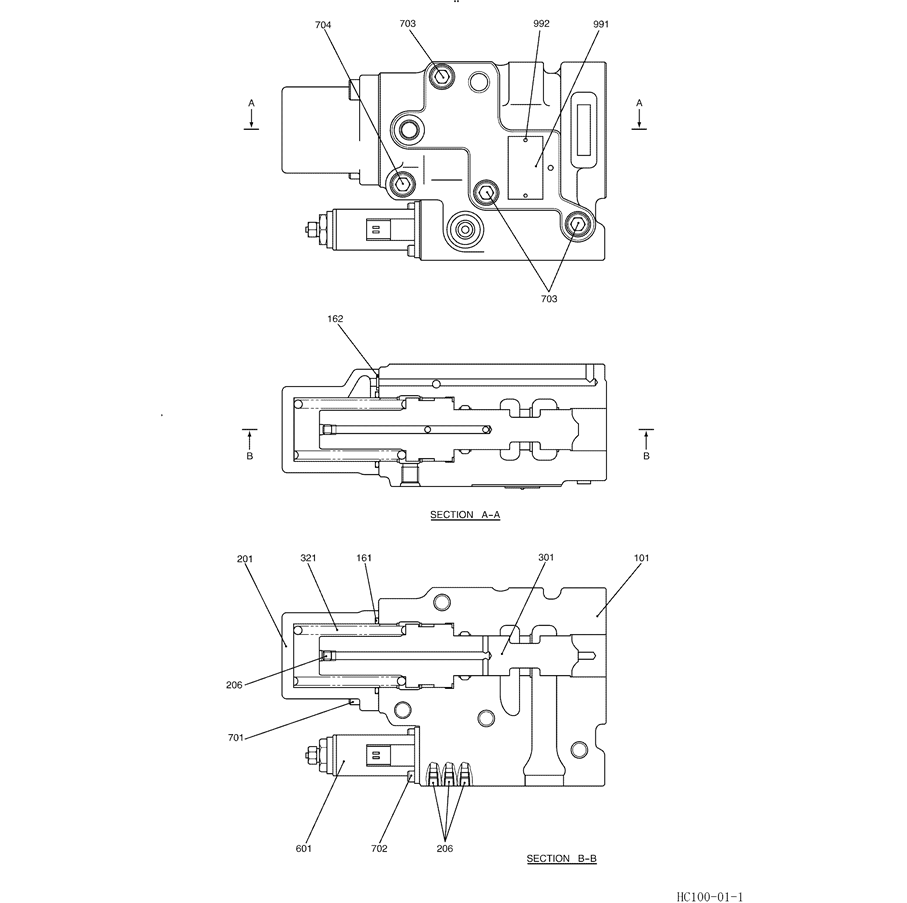

8.007(00) VALVE ASSY, CONTROL YN30V00104F1 (HC100)
8.007(00) VALVE ASSY, CONTROL YN30V00104F1 (HC100)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
992 2 NSS NOT SERVICED SEPARATELY PIN
991 1 NSS NOT SERVICED SEPARATELY NAME PLATE
704 1 ZS23C12080 SCREW M12x1.75x80mm
703 3 ZS23C12105 SCREW M12x1.75x105mm
702 2 YX35V00002S171 SCREW M05x0.8x12mm
701 2 ZS23C10025 SCREW M10x1.50x25mm
321 1 YN30V00104S321 SPRING
301 1 YN30V00104S301 SPOOL
206 4 NSS NOT SERVICED SEPARATELY PLUG
201 1 YN30V00104S201 COVER
162 1 ZD12P00900 O-RING ID 08.80 ± 0.17 x OD 12mm
161 1 ZD12G05500 RING O — ID 54.40 ± 0.49 x OD 60mm
101 1 NSS NOT SERVICED SEPARATELY CASE
YN30V00104F1 HYDRAULIC VALVE
601 1 NSS NOT SERVICED SEPARATELY VALVE ASSY,SOLENOID
