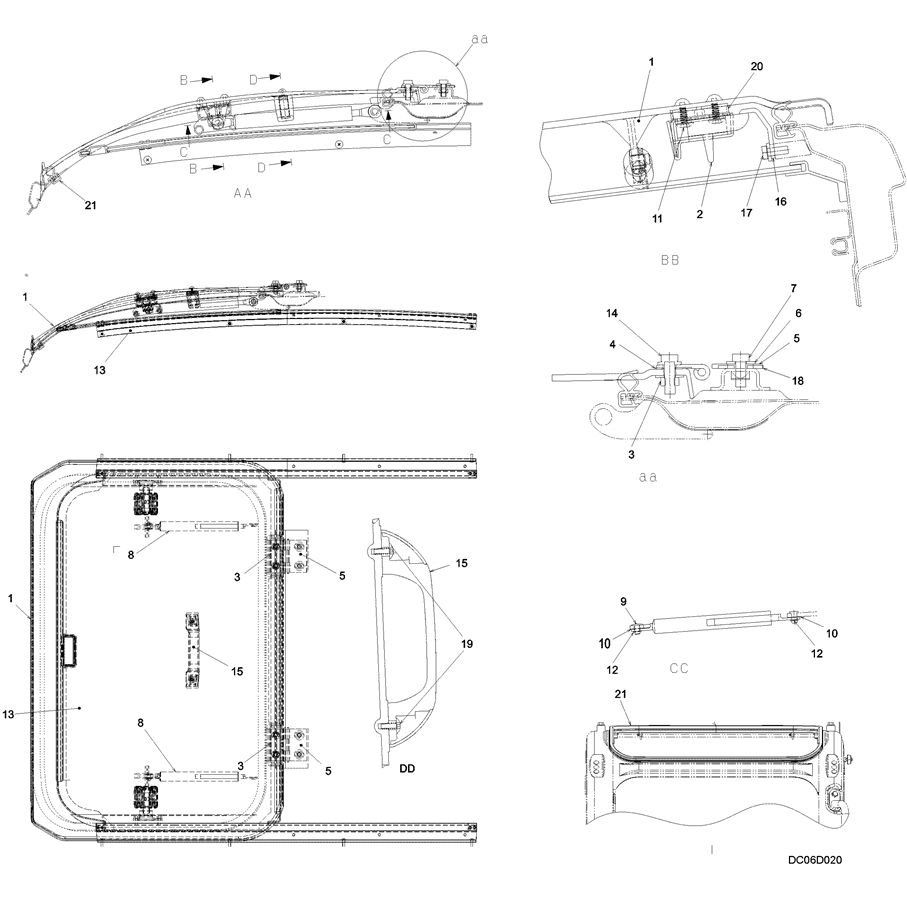

1.052(00) CAB, WINDOW, ROOF YN02C03654F1
1.052(00) CAB, WINDOW, ROOF YN02C03654F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
21 1 YN02C03669P2 GASKET Used after date 12/08/2006 – Up
21 1 YN02C03669P1 GASKET Used before date – 12/08/2006
20 2 YN02C03656P1 SPACER
19 2 YN02C03766P1 PLUG Screw — M05x15mm Self-Taper — Change from YN02C01876D1, After 10/06/06
19 2 YN02C01876D1 SCREW M05x12mm Self-Taper, Change to YN02C03766P1, Before 10/06/06
18 2 YN02C03641P1 PLATE
17 4 ZM73C06016 BOLT M06x1.0x16mm (Incls. Washer)
16 2 YN02C03187P2 PLATE
15 1 YN02C02967P1 HANDLE
14 4 ZM73C08025 BOLT M08x1.25x25mm (Incls. Washer)
K 1 YN55C01018P1 HANDLE Not Shown
K 1 YN02C03200P1 FOAM INSULATION Not Shown
K 8 YN02C01875D1 SCREW M05x0.8x16mm Long, Not Shown
K 1 YN02C01955P1 RAIL ASSY. Right Back, Not Shown
K 1 YN02C01954P1 RAIL ASSY. Right Front, Not Shown
K 1 YN02C01953P2 RAIL ASSY. Left, Not Shown
K 1 YN55C00010P1 SUN VISOR Not Shown
13 1 YN55C00008F1 SUN VISOR Assembly, Contains Items Marked “K”
12 4 ZR36X00600 SNAP RING E-Ring — Shaft 06mm x OD 12mm
11 8 YN02C03767P1 SCREW M06x16mm Self-Taper, Change from YN02C03657P1, After 10/09/06
11 8 YN02C03657P1 SCREW M06x12mm Self Tapping, Change to YN02C03767P1, Before 10/09/06
10 4 YT02C01390P1 WASHER ID 09 x OD 20 x Th 0.8mm
9 2 YN02C01824P2 PIN Pin
8 2 YT02C01086P1 SPRING Gas
7 4 ZS18C08020 SCREW M08x1.25x20mm
6 4 YR21C01161P1 WASHER ID 09 x OD 22 x Th 2.3mm
5 2 YN02C03194P1 HINGE
4 2 YN02C01764P1 RUBBER SLEEVE
3 2 YN02C02705P1 PLATE
2 2 YN02C03091F1 LOCK Change to YN02C03810F1, Before 12/08/06
1 1 YN02C03650P1 ROOF Smoke Gray Sun
AR YN02C03654F1 ROOF Window
2 2 YN02C03810F1 LOCK Change from YN02C03091F1, After 12/08/06
