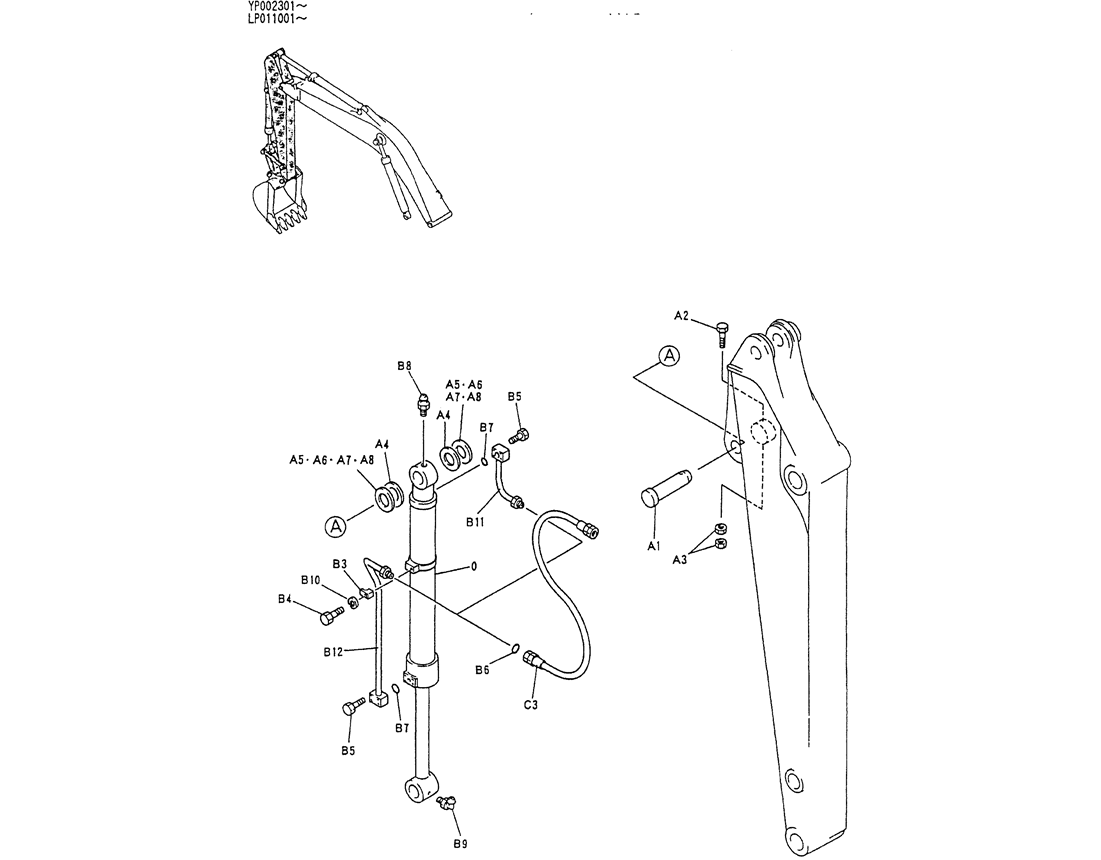

05-014 HYD LINES, ARM 2.1M

05-014 HYD LINES, ARM 2.1M-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals

C3 2 ZX50H10096
AR LP43H00003F3
B12 1 LP43H01024P2 , ASN LP012823
B12 1 LP43H01024P2 , ASN YP002359
B12 1 LP43H01024P1 , BTW LP011001 & LP012822
B12 1 LP43H01024P1 , BTW YP002301 & YP002358
B11 1 LP43H01023P2 , ASN LP012823
B11 1 LP43H01023P2 , ASN YP002359
B11 1 LP43H01023P1 , BTW LP011001 & LP012822
B11 1 LP43H01023P1 , BTW YP002301 & YP002358
B10 1 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm
B9 1 ZG91U02000 LUBE NIPPLE 90°x1/8″ PT
B8 1 ZG91S02000 LUBE NIPPLE 1/8″ PT — Straight
B7 2 ZD12P02600 O-RING ID 25.70 ± 0.26 x OD 32mm
B6 2 ZD12A01600 O-RING ID 15.60 ± 0.12 x OD 19.16mm, ASN LP012227
B6 2 ZD12A01600 O-RING ID 15.60 ± 0.12 x OD 19.16mm, ASN YP002343
B6 2 2445Z1560D1 O-RING , BTW LP011001 & LP012226
B6 2 2445Z1560D1 O-RING , BTW YP002301 & YP002342
B5 8 2420N458D10030 SCREW M10x1.50x30mm, ASN LP012823
B5 8 2420N458D10030 SCREW M10x1.50x30mm, ASN YP002359
B5 8 ZS18C10055 SCREW M10x1.50x55mm, BTW LP011001 & LP012822
B5 8 ZS18C10055 SCREW M10x1.50x55mm, BTW YP002301 & YP002358
B4 1 ZS18C10050 SCREW M10x1.50x50mm
B3 1 YW43H01049P1 CLAMP , ASN LP012227
B3 1 YW43H01049P1 CLAMP , ASN YP002343
B3 1 2432T1333 CLAMP Single Block — 50x30x25mm, BTW YP002301 & YP002342
AR LP43H00002F2
A8 2 B16T0442D19 SHIM ID 62 x OD 100 x Th 1.6mm
A7 2 B16T0442D27 SHIM ID 62 x OD 100 x Th 1.2mm
A6 2 B16T0442D56 SHIM ID 62 x OD 100 x Th 0.5mm
A5 2 B16T0442D43 SHIM ID 62 x OD 100 x Th 0.9mm
A4 2 YW12B01025P1 SHIM ID 62 x OD 100 x Th 3.0mm
A3 2 ZN18C12010 NUT M12x1.75mm
A2 1 HS18C12110G1 SCREW
A1 1 LP12B01042P1 PIN OD 60 x 222mm Long
AR LP12B00010F1
1 LP01V00005F2 CYLINDER (BUCKET),SEE(HC100-01), ASN LP011097
1 LP01V00005F2 CYLINDER (BUCKET),SEE(HC100-01), ASN YP002301
0 1 LP01V00005F1 CYLINDER (BUCKET),SEE(HC100-01), BTW LP011001 & LP011096
AR NSS NOT SERVICED SEPARATELY HYD LINES, ARM 2.1M
B3 1 2432T1333 CLAMP Single Block — 50x30x25mm, BTW LP011001 & LP012226
