02-007 SEAT ASSY P/N 24100N7702F1

02-007 SEAT ASSY P/N 24100N7702F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals

02-007 SEAT ASSY P/N 24100N7702F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals
02-007 SEAT ASSY P/N 24100N7702F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals

20 1 ZN18C10008 NUT M10x1.50mm
19 1 ZS18C10040 SCREW M10x1.50x40mm
18 1 2418T24771 SPACER
17 1 2420T8240 SCREW
16 1 2407U71
15 5 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm
14 4 ZW22K08000 LOCK WASHER ID 08 x OD 13 x Th 2.0mm
13 4 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm
12 3 ZS18C10025 SCREW M10x1.50x25mm
11 4 ZS23C08020 SCREW M08x1.25x20mm
10 4 2420R1088D2 SPECIAL BOLT M04x0.7x12mm (Incls. Washer & Lockwasher)
9 2 2427Z1458 GRILLE
6 2 2448U116F1 BELT SEAT
4 1 2414P8995 COVER
3 1 2427N3258 STAND

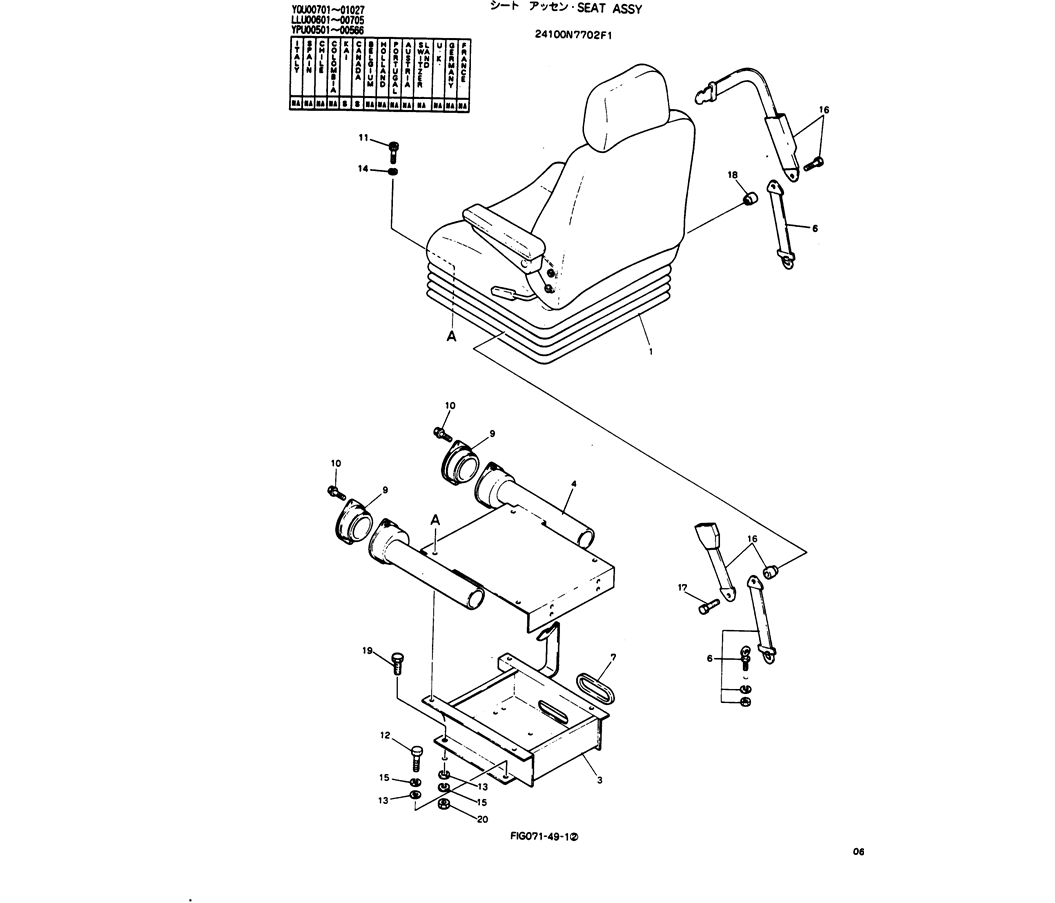

1 1 2448U167F1 SEAT , SEE FIGURE 074-49
AR 24100N7702F1 SEAT ASSY
7 1 2420Z1343 GROMMET
