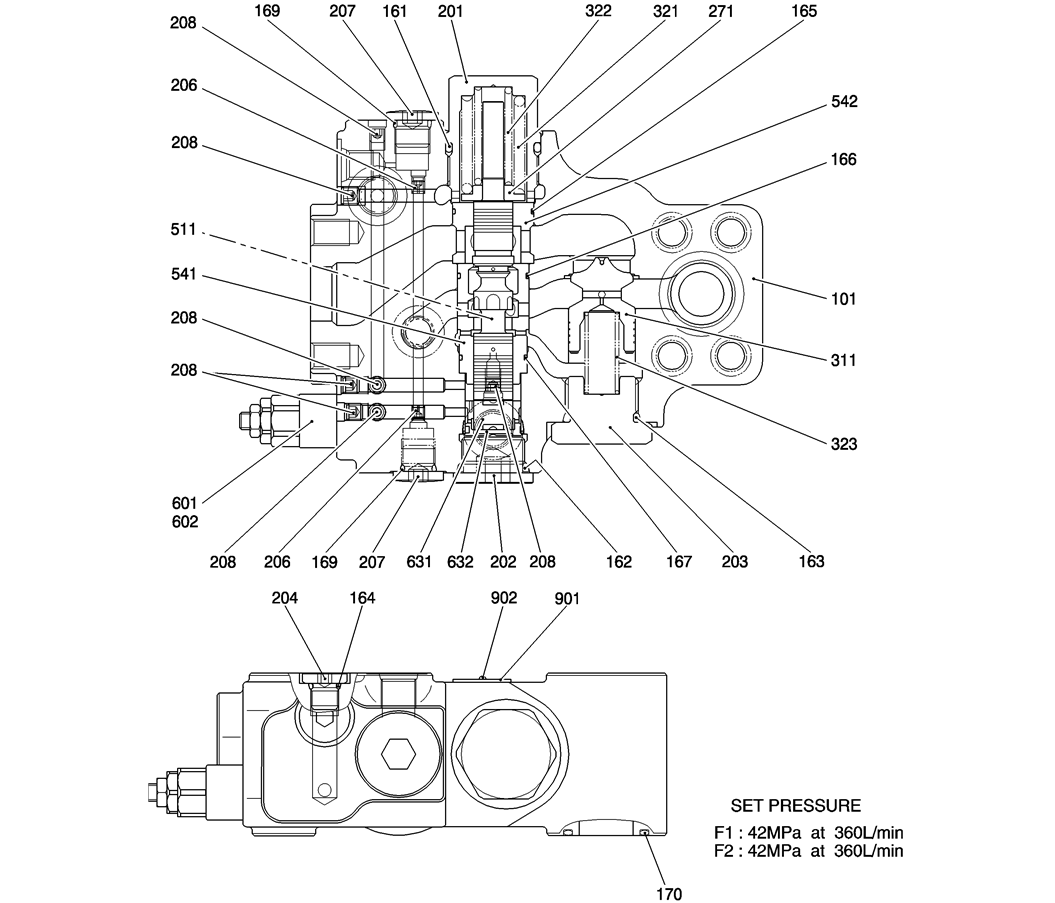

HC901-01-1 VALVE ASSY, HOLDING

HC901-01-1 VALVE ASSY, HOLDING-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals

HC901-01-1 VALVE ASSY, HOLDING-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals
HC901-01-1 VALVE ASSY, HOLDING-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals

902 2 NSS NOT SERVICED SEPARATELY Pin
901 1 NSS NOT SERVICED SEPARATELY Name Plate
632 1 YN28V00019S632 PISTON
631 1 YN28V00019S631 PISTON
602 1 YN22V00037F2 VALVE Assy, Relief (For F2 ONLY)
601 1 YN22V00037F1 HYDRAULIC VALVE Assy, Relief (For F1 ONLY)
542 1 YN28V00019S542 BUSHING
541 1 NSS NOT SERVICED SEPARATELY Bushing
511 1 NSS NOT SERVICED SEPARATELY Spool
323 1 YN28V00019S323 SPRING
322 1 YN28V00019S322 SPRING
321 1 YN28V00019S321 SPRING
311 1 YN28V00019S311 SUPPORT Poppet
271 1 YN28V00019S271 SEAT/SLOT Spring
208 7 NSS NOT SERVICED SEPARATELY Plug
207 2 YN30V00001S156 PLUG
206 2 YN28V00019S206 RING Restrictor
204 1 YW30V00001S157 PLUG
203 1 YN28V00019S203 PLUG
202 1 2436U1198S551 PLUG
201 1 YN28V00019S201 PLUG
170 1 ZD12G03500 O-RING
169 2 ZD12P01400 O-RING
167 1 YN28V00019S167 O-RING
166 1 YT30V00009S212 O-RING
165 1 YN28V00019S165 O-RING
164 1 ZD12P01100 O-RING
163 1 ZD12P02900 O-RING
162 1 ZD12P02800 O-RING
101 1 NSS NOT SERVICED SEPARATELY Case
AR YN28V00020F2 VALVE Assy, Holding
AR YN28V00020F1 HYDRAULIC VALVE Assy, Holding
161 1 ZD12P03800 O-RING
