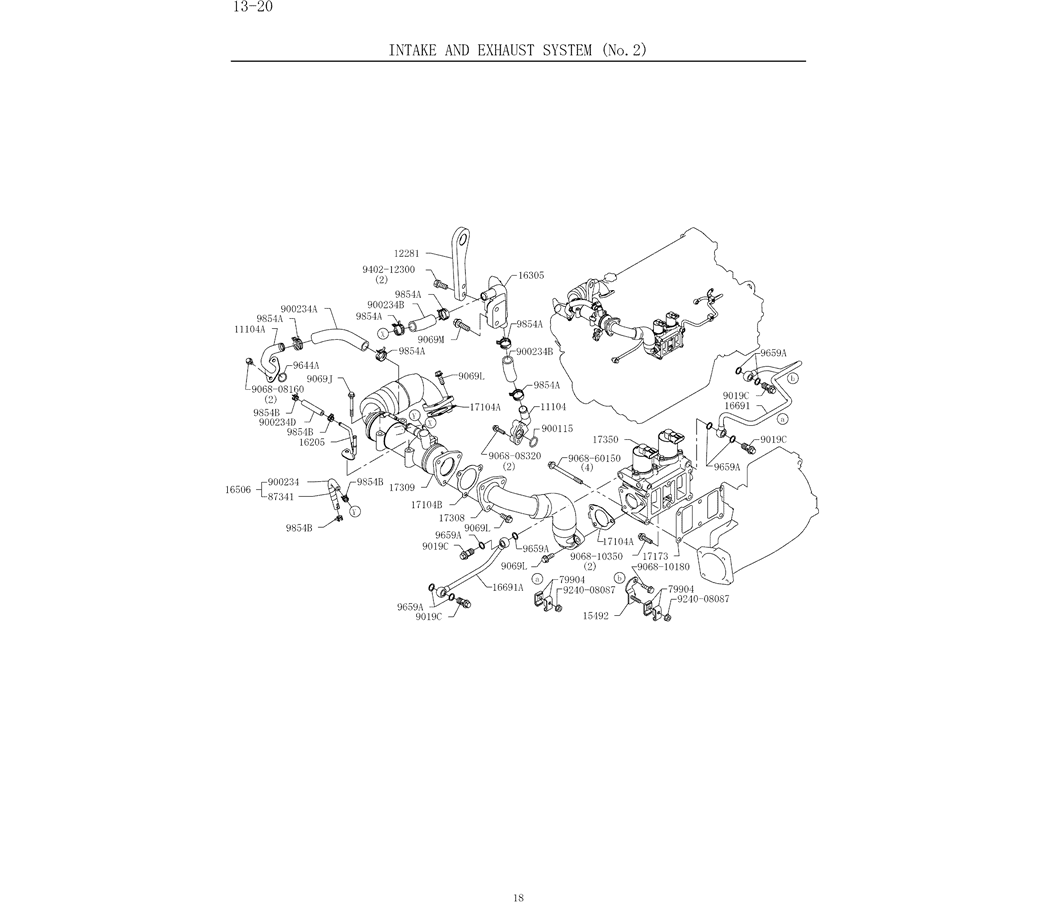

9.010(00) AIR INTAKE AND EXHAUST SYSTEM 13-20-2 (HINO ENGINE TYPE J08ETM-KSDA)

9.010(00) AIR INTAKE AND EXHAUST SYSTEM 13-20-2 (HINO ENGINE TYPE
J08ETM-KSDA)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

9.010(00) AIR INTAKE AND EXHAUST SYSTEM 13-20-2 (HINO ENGINE TYPE  J08ETM-KSDA)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
9.010(00) AIR INTAKE AND EXHAUST SYSTEM 13-20-2 (HINO ENGINE TYPE
J08ETM-KSDA)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

9854B 4 985413112A CLIP
9854A 6 985426103A CLIP
9659A 8 VH965916105B WASHER SOFT
9644A 1 964402135A O-RING
9402-12300 2 940212300A BOLT BOLT, W/WASHER
9359A 2 935910127A STUD
9331-10700 2 933110700A STUD
9321-08300 2 932108300A STUD
9311-08300 7 931108300A STUD
9260-08220 3 926008220A WASHER PLAIN
9241-10107 2 924110107A NUT
9240-08087 2 924008087A NUT
9240-08087 5 924008087A NUT
9209A 18 920910141A NUT
9069R 2 906910176A BOLT FLANGE
9069P 2 906910117A BOLT FLANGE
9069M 2 906912122A BOLT FLANGE
9069L 9 906910175A BOLT FLANGE
9069J 4 906908132A BOLT FLANGE
9068-60400 2 906860400A BOLT FLANGE
9068-60150 4 906860150A BOLT FLANGE
9068-10450 2 906810450A BOLT FLANGE
9068-10350 2 906810350A BOLT FLANGE
9068-10180 1 906810180A BOLT FLANGE
9068-10000 2 906810000A BOLT FLANGE
9068-08550 5 906808550A BOLT FLANGE
9068-08320 2 906808320A BOLT FLANGE
9068-08320 4 906808320A BOLT FLANGE
9068-08160 2 906808160A BOLT FLANGE
9068-08000 5 VH906808000A BOLT FLANGE
9029A 2 VH902910199B BOLT
9019C 4 VH901916340A BOLT
9019A 3 VH901908216A BOLT
900234D 1 VH900234547A HOSE WATER
900234B 2 VH900234545A HOSE WATER
900234A 1 VH900234544A HOSE WATER
900234 1 VH900234543A HOSE WATER
900116 18 VH900116442A SPACER
900115 1 VH900115342A GASKET
87341 1 VH873411421A INSULATOR WATER HOSE
79904 4 VH799042180A CLIP ASSY
17350 1 VH173501250A CONTROL VALVE ASSY, ENGINE
17309 1 VH173091090C CORE-ENGINE COOLER SUB ASSY, ENGINE
17308 1 VH173081310A PIPE SUB ASSY, ENGINE
17173 1 VH171731860B GASKET EXH MFLD
17171A 1 VH171712310A GASKET INTAKE MFLD
17171 1 VH171712200A GASKET INTAKE MFLD
17152 1 VH171522580A BRACKET EXH MFLD
17136 1 VH171365492A BRACKET INTAKE PIPE
17113 1 VH171138490A PIPE INTAKE
17105 1 VH171051150A BRACKET MANIFOLD SUB ASSY, EXHAUST
17104B 1 VH171042000A GASKET SUB ASSY, EXH MFLD
17104A 2 VH171041990A GASKET SUB ASSY, EXH MFLD
17104 6 VH171041610A GASKET SUB ASSY, EXH MFLD
17044 1 VH170444610A INSULATOR SUB ASSY, EXH
17031 1 VH170318024A PIPE SUB ASSY, INTAKE
16691A 1 VH166913750A PIPE COOLANT
16691 1 VH166913322A PIPE COOLANT
16506 1 VH165061561A HOSE SUB ASSY, RAD
16305 1 VH163051050B PIPE SUB ASSY, COOLANT
16205 1 VH162051330B PIPE SUB ASSY, AIR ESCAPE
15492 1 VH154929400A HOLDER CLIP
12281 1 VH122812251B HANGER ENGINE
11104A 1 VH111041110B PIPE SUB ASSY, WATER
11104 1 VH111041101A PIPE SUB ASSY, WATER
NO — VH AIR INTAKE & EXHAUST SYSTEM
17111 1 VH171114632A BRACKET MANIFOLD, INTAKE
