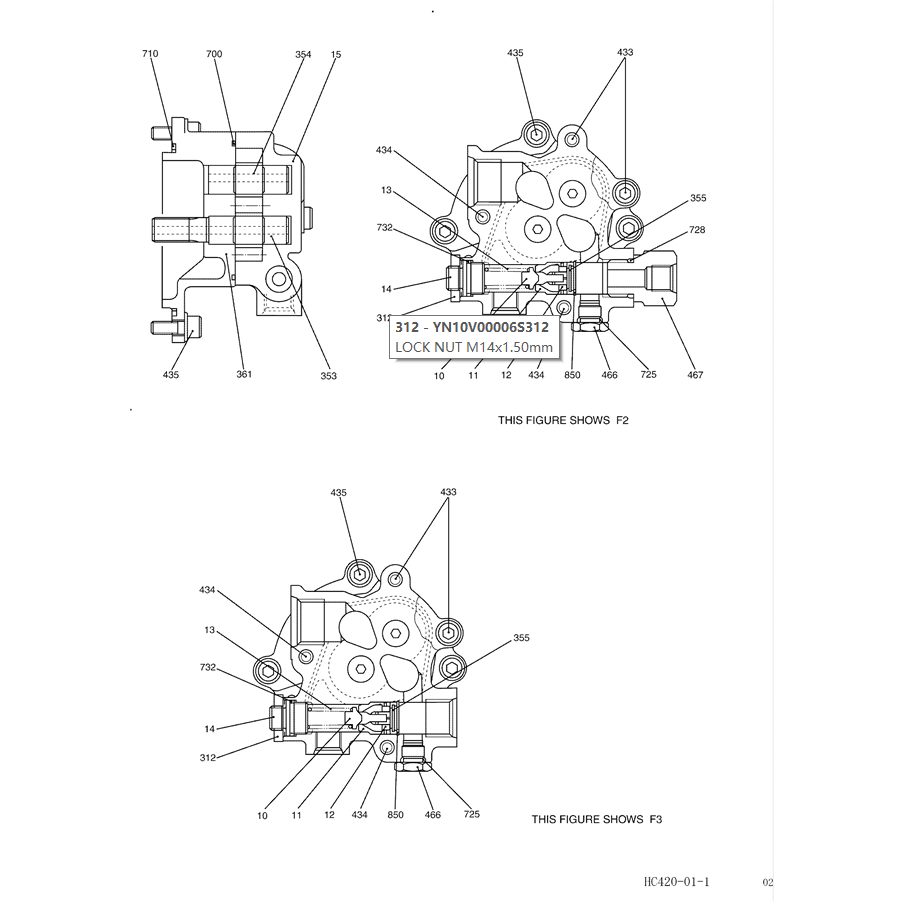

8.019(00) PUMP ASSY, GEAR YN22V00014F1-FB (HC420)

8.019(00) PUMP ASSY, GEAR YN22V00014F1-FB (HC420)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

K 1 YN10V00014R300 REPAIR KIT CONSISTS OF ITEM 10X1, 11X1, 15X1, 353X1, 354X1, 361X1
850 1 ZR26X01800 RING Retaining — ID 18 x OD 19.5 x Th 1.0mm
732 1 ZD12P01600 O-RING ID 15.80 ± 0.20 x OD 20mm
728 1 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm, (F2 Only)
725 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
710 1 ZD12G09500 GASKET O-Ring — ID 94.40 ± 0.81 x OD 100mm
700 1 YN10V00006S700 RING
466 1 2441U667S466 PLUG 1/4″ PF
435 4 YN10V00014S435 BOLT M10
434 2 YN10V00006S434 SOCKET M08
433 2 YN10V00006S433 SOCKET M08
361 1 NSS NOT SERVICED SEPARATELY CASE
355 1 YN10V00006S355 FILTER
354 1 NSS NOT SERVICED SEPARATELY GEAR,DRIVEN
353 1 NSS NOT SERVICED SEPARATELY GEAR,DRIVE
312 1 YN10V00006S312 LOCK NUT M14x1.50mm
15 1 NSS NOT SERVICED SEPARATELY CASE
14 1 YN10V00014S014 SCREW
13 1 YN10V00014S013 SPRING
12 1 YN10V00014S012 RING
11 1 NSS NOT SERVICED SEPARATELY SEAT
10 1 NSS NOT SERVICED SEPARATELY POPPET
YN10V00014F3 PUMP ASSY,GEAR
YN10V00014F2 PUMP ASSY,GEAR
467 1 YN10V00006S467 ADAPTER 1/2″ x 3/8″ PF, (F2 Only)
