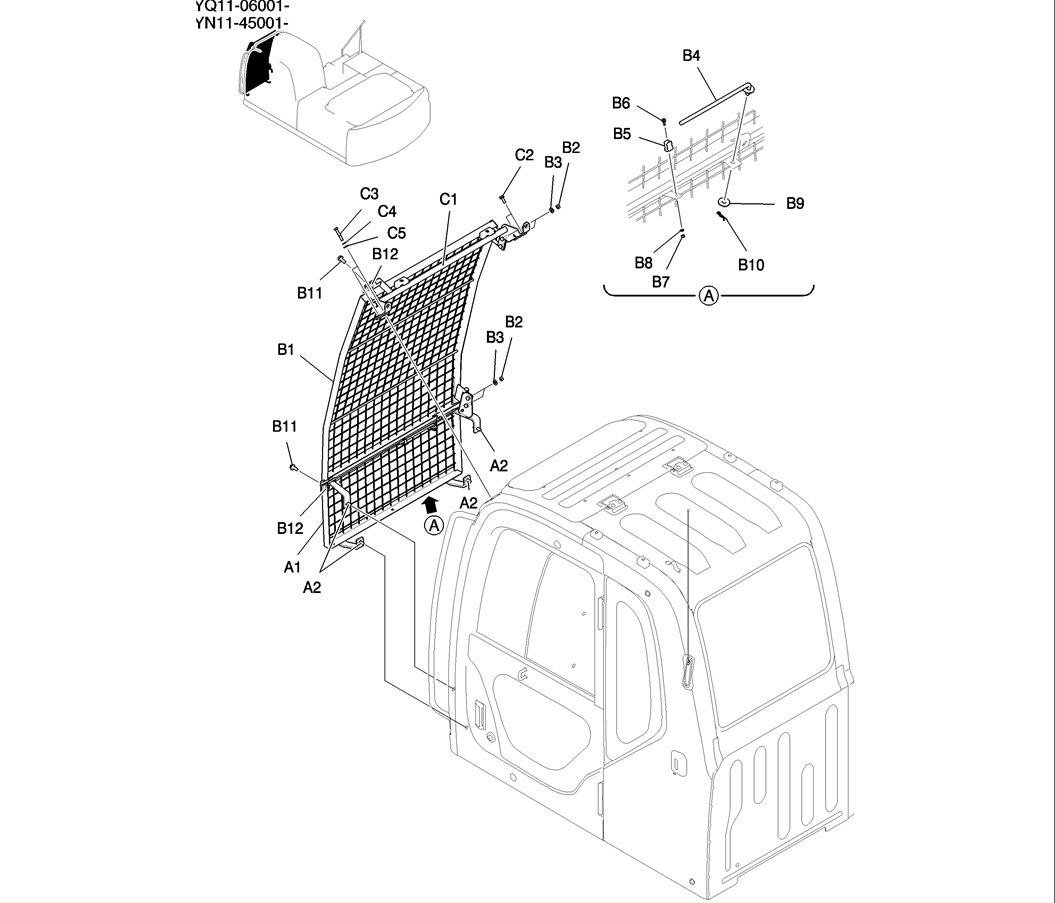

745-02-1 CAB & GUARD ASSY [1, 2 FACES GUARD (WIRE TYPE)]

745-02-1 CAB & GUARD ASSY [1, 2 FACES GUARD (WIRE TYPE)]-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals

745-02-1 CAB & GUARD ASSY [1, 2 FACES GUARD (WIRE TYPE)]-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals
745-02-1 CAB & GUARD ASSY [1, 2 FACES GUARD (WIRE TYPE)]-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals
C5 2 ZW16H10000 WASHER
C4 2 ZW26X10000 LOCK WASHER
C3 2 ZS18C10060 SCREW Cap
C2 2 ZM73C10030 BOLT Sems
1 YN02C03585P2 SUPPORT , ASN YN11-49733
1 YN02C03585P2 SUPPORT , ASN YQ11-06536
C1 1 YN02C03585P2 SUPPORT [ A ], BTW YN11-45001 & YN11-49732
C1 1 YN02C03585P2 SUPPORT [ A ], BTW YQ11-06001 & YQ11-06535
AR YN02C03586F1 BRACKET, SUPPORTING Support Assy
B12 2 YN02C03199P1 NUT
B11 2 ZM73C12030 BOLT Sems
B10 1 2419R9D2 COTTER PIN
B9 1 HY25X10027G1 WASHER
B8 1 ZW16P04000 WASHER
B7 1 ZN16C04003 NUT
B6 1 ZM66C04012 BOLT Sems
B5 1 YN21C01178P1 CLIP
B4 1 YN02C03597P1 ROD
B3 4 ZW16H10000 WASHER
B2 4 ZN18C10008 NUT
B1 1 YN02C03496P1 GUARD
A2 4 ZM73C12030 BOLT Sems
A1 1 YN02C03487P1 GUARD
AR YN02C03518F1 GUARD
AR YN01C00019F1 (Face Guard)
A2 4 ZM73C12030 BOLT Sems
A1 1 YN02C03487P1 GUARD
AR YN02C03518F1 GUARD
AR YN01C00020F1 (Face Guard)
AR YN02C03517F1 GUARD
