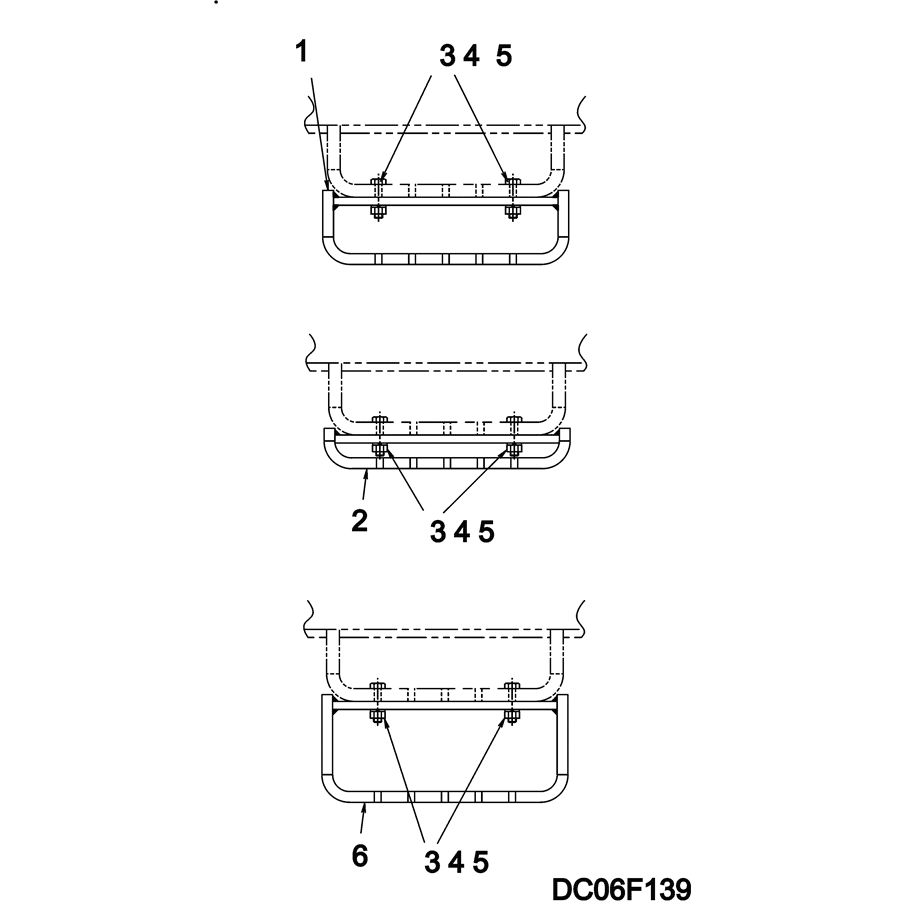

6.016(00) STEP INSTAL YN41CU0002F1-F3

6.016(00) STEP INSTAL YN41CU0002F1-F3-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

6.016(00) STEP INSTAL YN41CU0002F1-F3-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
6.016(00) STEP INSTAL YN41CU0002F1-F3-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

6 4 YN41CU0005P1 STEP 150mm Long (6in)
5 8 ZN18C12010 NUT M12x1.75mm
4 8 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm
2 4 YN41CU0004P1 STEP 50mm Long (2in)
1 4 YN41CU0003P1 STEP 100mm Long (4in)
1 YN41CU0002F3 STEP Installation, 150mm Long (6in) — Incls. Ref. 3, 4, 5, 6
1 YN41CU0002F2 STEP 50mm Long (2in) — Incls. Ref. 2, 3, 4, 5
1 YN41CU0002F1 STEP Installation, 100mm Long (4in) — Incls. Ref. 1, 3, 4, 5
3 8 ZS18C12050 SCREW M12x1.75x50mm
