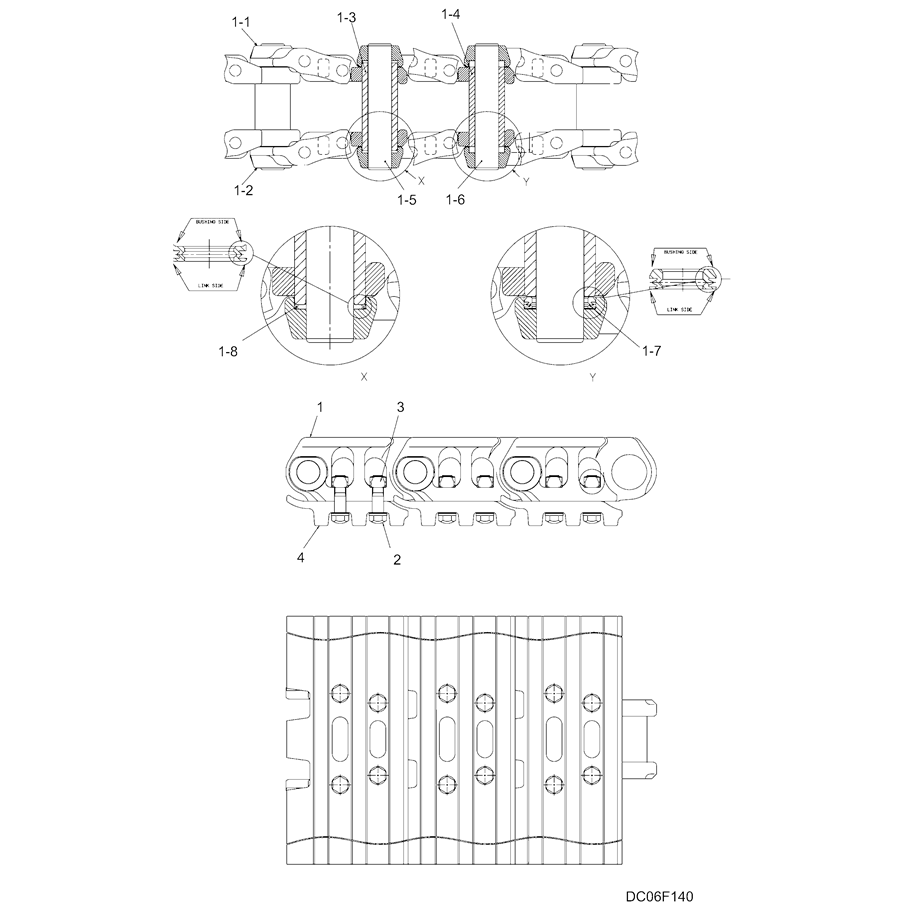

6.013(00) SHOE ASSEMBLY (H & W) 700MM TRIPLE GROUSER LC60DU0010F3

6.013(00) SHOE ASSEMBLY (H & W) 700MM TRIPLE GROUSER LC60DU0010F3-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

6.013(00) SHOE ASSEMBLY (H & W) 700MM TRIPLE GROUSER LC60DU0010F3-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
6.013(00) SHOE ASSEMBLY (H & W) 700MM TRIPLE GROUSER LC60DU0010F3-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

4 49 LC60DU0013P1 SHOE 700mm Long (27-1/2 in)
3 196 LC60DU1002P1 NUT
2 196 LC60DU1001P1 BOLT
1-9 96 LC62DU1006P1 SEAL
1-8 2 LC62DU1005P1 SPACER
1-5 48 LC62DU1003P1 PIN
1-4 1 LC62DU1002P1 BUSHING
1-3 48 LC62DU1001P1 BUSHING
1-2 49 LC62DU0004P1 TRACK ASSY LINK LH
1-1 49 LC62DU0003P1 TRACK ASSY LINK RH
1 1 LC62DU0002F1 TRACK ASSY LINK
LC60DU0010F3 SHOE ASSY, 700mm Long (27-1/2 in)
1-6 1 LC62DU1004P1 PIN
