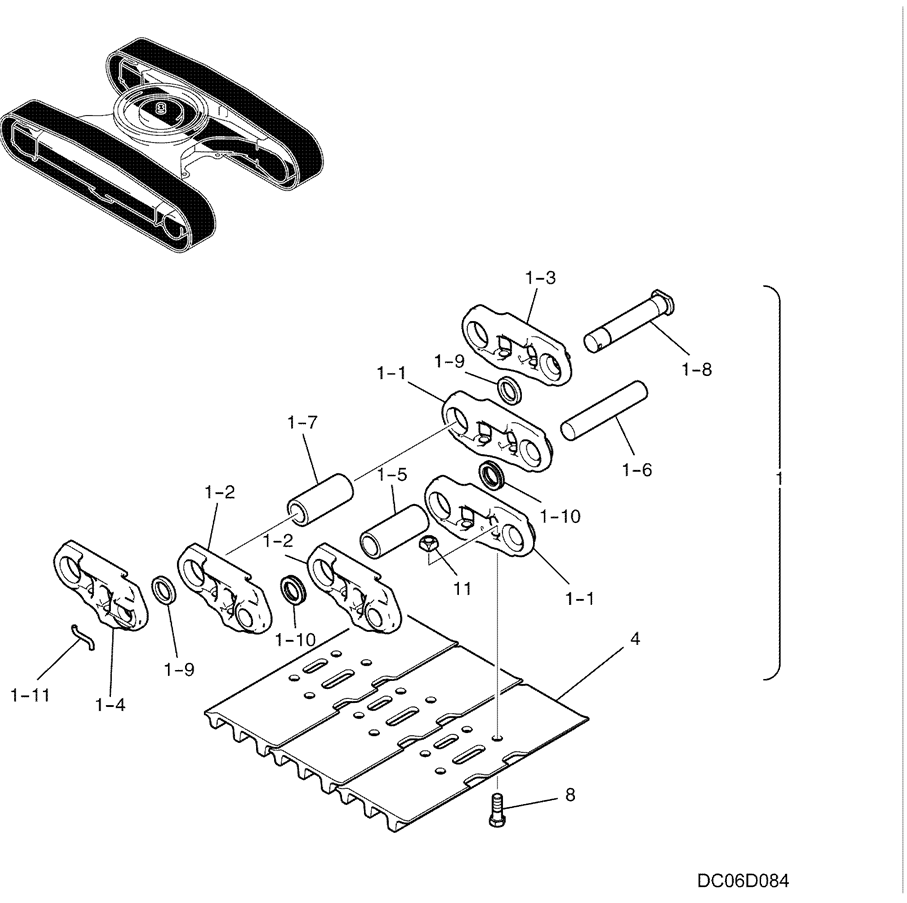

6.006(00) SHOE ASSEMBLY 600MM (HD) LC60D00016F2

6.006(00) SHOE ASSEMBLY 600MM (HD) LC60D00016F2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

6.006(00) SHOE ASSEMBLY 600MM (HD) LC60D00016F2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
6.006(00) SHOE ASSEMBLY 600MM (HD) LC60D00016F2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

11 192 2420Z1414 NUT M22x1.5mm
8 192 LC60D01001P1 BOLT M22x1.5x64mm Long
4 48 2424N224 TRACK SHOE 600 mm (HD)
LC60D00011F2 SHOE ASSY INCL 4, 8, 11
1-10 92 LC62D01005P1 SEAL
1-9 4 2418T23160 COLLAR CLAMP
1-8 2 2419P3560 PIN
1-7 2 2405P520 BUSHING
1-6 46 LC62D01003P1 PIN
1-5 46 LC62D01004P1 BUSHING
1-4 2 LC62D01002P1 LINK LH
1-3 2 LC62D01001P1 LINK RH
1-2 46 LC62D00003P1 LINK LH
1-1 46 LC62D00002P1 LINK RH
1 1 LC62D00004F2 CHAIN
1-11 2 2419T6765 PIN
