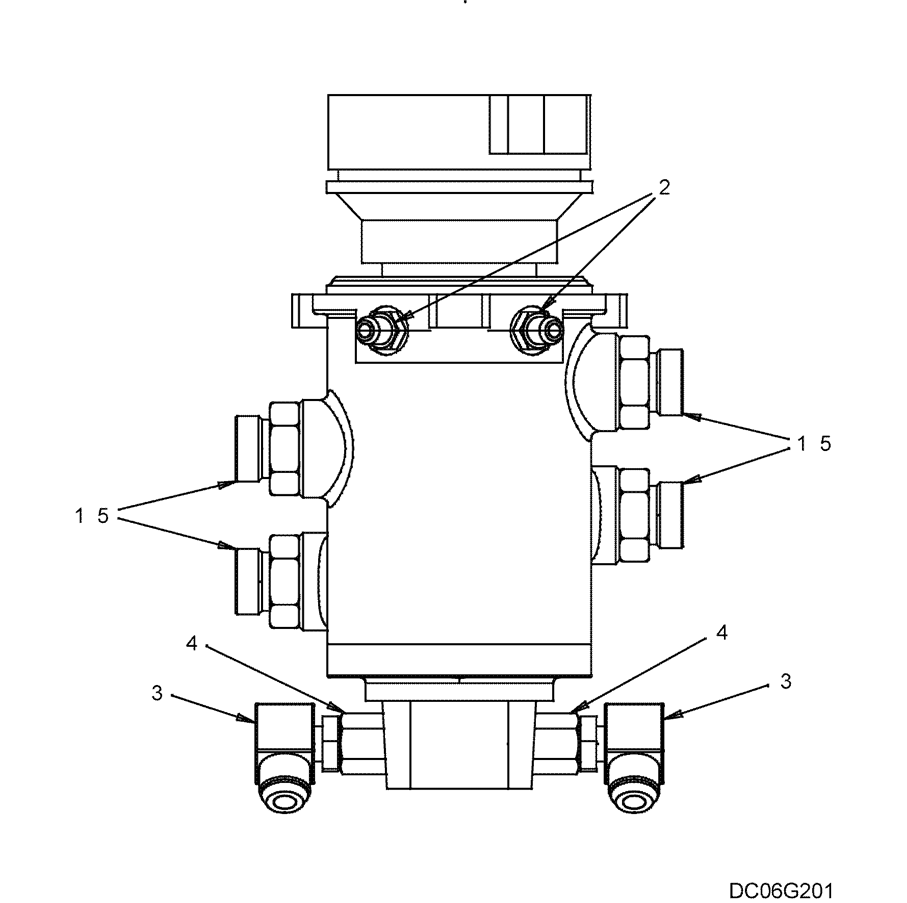

5.036(00) HYD LINES, SWIVEL (H & W) LC19HU0001F1
5.036(00) HYD LINES, SWIVEL (H & W) LC19HU0001F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
5 4 ZD12A02100 O-RING ID 23.52 ± 0.15 x OD 27.08mm
4 2 HH25R08008G8 HYD CONNECTOR (Incls. O-Ring ZD12P01800)
2 2 ZH22X04000 HYD CONNECTOR 1/4″PFx36mm Long (Incls. O-Ring ZD12P01100)
1 4 ZG23F16016 HYD CONNECTOR 1.0″-1.0″ PT (Incls. O-Ring 237-6016)
3 2 2444R399D3 ELBOW 90° — 3/4″PFx1/2″PFx35.5mm Long (Incls. O-Ring ZD12P01800)
