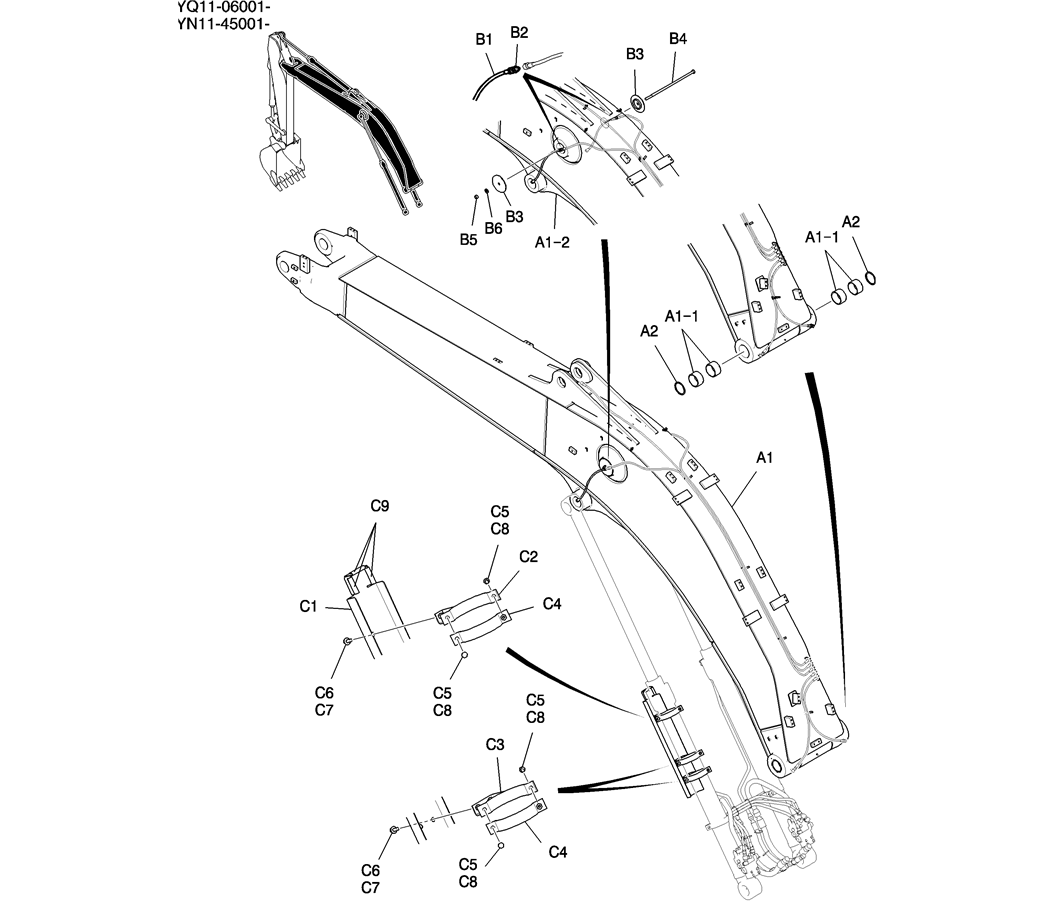

457-02-1 BOOM ASSY, [HD (2 POSITION)]

457-02-1 BOOM ASSY, [HD (2 POSITION)]-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals

C9 3 PY52F01022D7 TRIM PANEL
C8 6 ZW26X10000 LOCK WASHER
C7 5 ZW16H10000 WASHER
C6 5 ZS18C10025 SCREW Cap
C5 6 ZS18C10030 SCREW Cap
C4 3 YX42H01074P2 BAND
C3 2 YN02B02073P1 BAND
C2 1 YN02B02071P1 BAND
C1 1 YN02B02142P1 COVER
AR YN02B00570F1 Group
B6 1 ZW16H16000 WASHER
B5 1 ZN18C16013 NUT
B4 1 HS18C16500G1 CAP screw
B3 2 YN02B01529P1 COVER
B2 2 ZH22F04000 HYD CONNECTOR
B1 2 2420R349D056 FLEXIBLE HOSE
1 YN02B00362F1 Group (See fig no 450)
AR YN02B00468F1 Group
A2 2 2445R138D8 SEAL Dust
A1-2 1 YN02B01868P1
A1-1 4 LB01V01009P1 BUSHING
A1 1 NSS NOT SERVICED SEPARATELY Hoe
AR YN02B00446F1 BOOM hoe
AR YN02B00463F1 Group
