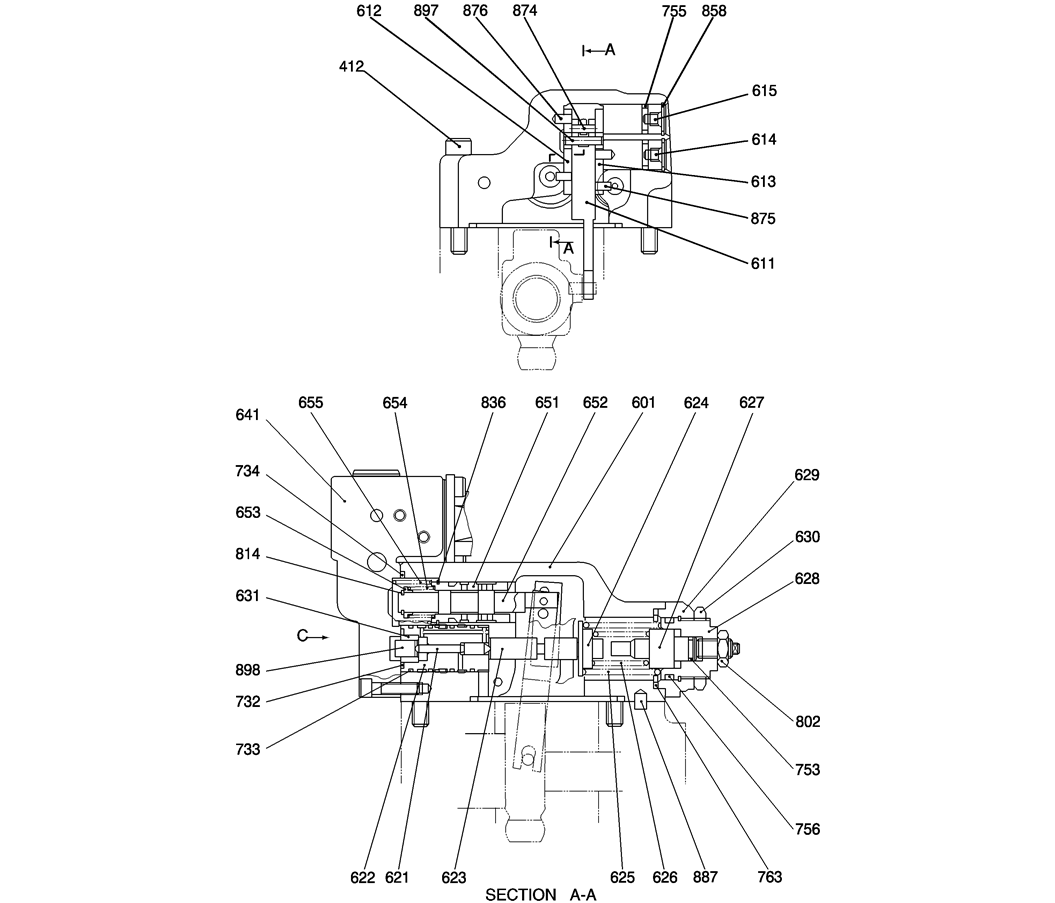

410-01(2) REGULATOR ASSY

410-01(2) REGULATOR ASSY-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals

410-01(2) REGULATOR ASSY-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals
410-01(2) REGULATOR ASSY-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals

K 1 2437U219S41 REPAIR KIT Consists Of Item 541×1, 543×1, 545×1
924 1 2441U722S924 SCREW Set
898 1 NSS NOT SERVICED SEPARATELY Pin
897 1 NSS NOT SERVICED SEPARATELY Pin
887 1 NSS NOT SERVICED SEPARATELY Pin
876 2 NSS NOT SERVICED SEPARATELY Pin
875 2 NSS NOT SERVICED SEPARATELY Pin
874 1 NSS NOT SERVICED SEPARATELY Pin
858 2 ZR26X01500 RING Retaining
836 1 NSS NOT SERVICED SEPARATELY Ring, Retaining
814 1 2436U2455S814 RING Retaining
802 1 NSS NOT SERVICED SEPARATELY Nut
801 1 ZN18C08005 NUT
763 1 YN10V00003S702 GASKET O-ring
757 1 YX10V01001S015 O-RING
756 1 YN10V01006S022 O-RING
755 7 YT10V00003S710 O-RING
753 1 YN10V01006S020 O-RING
734 1 YN10V01006S019 O-RING
733 4 YN10V01009S733 O-RING
732 1 YW10V00003S732 O-RING
730 1 YZ10V00002S732 O-RING
728 1 YT10V00003S708 O-RING
725 1 YN10V01006S013 O-RING
724 8 YX10V00003S015 O-RING
722 3 YN10V01006S011 O-RING
708 1 YX10V01001S010 O-RING
662 1 NSS NOT SERVICED SEPARATELY Spring
656 1 NSS NOT SERVICED SEPARATELY Cover
655 1 NSS NOT SERVICED SEPARATELY Spring
654 1 NSS NOT SERVICED SEPARATELY Spring
653 1 NSS NOT SERVICED SEPARATELY Seat, Spring
652 1 NSS NOT SERVICED SEPARATELY Spool
651 1 NSS NOT SERVICED SEPARATELY Sleeve
646 1 NSS NOT SERVICED SEPARATELY Spring
645 1 NSS NOT SERVICED SEPARATELY Stem
644 1 NSS NOT SERVICED SEPARATELY Seat, Spring
643 1 NSS NOT SERVICED SEPARATELY Piston, Pilot
642 1 NSS NOT SERVICED SEPARATELY Rod
641 1 NSS NOT SERVICED SEPARATELY Cover, Pilot
631 1 NSS NOT SERVICED SEPARATELY Sleeve
630 1 NSS NOT SERVICED SEPARATELY Nut
629 1 NSS NOT SERVICED SEPARATELY Cover
628 1 NSS NOT SERVICED SEPARATELY Screw, Adjust
627 1 NSS NOT SERVICED SEPARATELY Stem
626 1 NSS NOT SERVICED SEPARATELY Spring
625 1 NSS NOT SERVICED SEPARATELY Spring
624 1 NSS NOT SERVICED SEPARATELY Seat, Spring
623 1 NSS NOT SERVICED SEPARATELY Rod
622 1 NSS NOT SERVICED SEPARATELY Case, Piston
621 1 NSS NOT SERVICED SEPARATELY Piston
615 1 NSS NOT SERVICED SEPARATELY Plug
614 1 NSS NOT SERVICED SEPARATELY Plug
613 1 NSS NOT SERVICED SEPARATELY Lever
612 1 NSS NOT SERVICED SEPARATELY Lever
611 1 NSS NOT SERVICED SEPARATELY Lever, Feedback
601 1 NSS NOT SERVICED SEPARATELY Case
545 2 NSS NOT SERVICED SEPARATELY Ball
541 2 NSS NOT SERVICED SEPARATELY Seat
496 18 2441U722S490 PLUG
466 3 2441U667S466 PLUG
439 5 ZS23C06025 SCREW Cap
438 8 ZS28C06020 SCREW Cap
418 2 YX35V00002S171 SCREW Cap
413 2 ZS23C08070 SCREW Cap
412 2 ZS23C08050 CAP Screw
AR YN10V01009F1 SPEED GOVERNOR Regulator Assy
543 2 NSS NOT SERVICED SEPARATELY Stopper
