3.037(01) HYD LINES, BOOM, MASS EXCAVATOR (NIBBLER & BREAKER) (LC42HU0008F1), PAGE 1 OF 2

3.037(01) HYD LINES, BOOM, MASS EXCAVATOR (NIBBLER & BREAKER)
(LC42HU0008F1), PAGE 1 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

3.037(01) HYD LINES, BOOM, MASS EXCAVATOR (NIBBLER & BREAKER)  (LC42HU0008F1), PAGE 1 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
3.037(01) HYD LINES, BOOM, MASS EXCAVATOR (NIBBLER & BREAKER)
(LC42HU0008F1), PAGE 1 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

B3 4 ZM73C12040 BOLT M12x1.75x40mm (Incls. Washer)
B2 1 LC42H01915P1 BRACKET Left Hand
B1 1 LC42H01916P1 BRACKET Right Hand
Mass Excavator Boom Hydraulic Lines (NIBBLER & BREAKER), LC42HU0007F1
A22 6 ZS18C12065 SCREW M12x1.75x65mm
A21 2 LC42H01269P1 CLAMP Single Block — 88x50x32mm
A20 16 ZW26K14000 LOCK WASHER ID 14 x OD 21.8 x Th 3.5mm
A19 8 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm
A18 16 ZS28C14050 SCREW M14x2.0x50mm
A17 2 ZS18C12050 SCREW M12x1.75x50mm
A16 8 ZM73C12035 BOLT M12x1.75x35mm (Incls. Washer)
A15 12 ZM73C12030 BOLT M12x1.75x30mm (Incls. Washer)
A14 4 ZD12P03800 O-RING ID 37.70 ± 0.37 x OD 44.7mm
A12 8 ZE13X20001 CLAMP Half — (Incls. Capscrew & Lockwasher)
A11 16 YN42H02363P1 CLAMP Ø23x65x52mm
A10 8 YN42H02348P1 CLAMP Double — 145.5x65x23.5mm
A9 2 LC42H01914P1 CLAMP
A7 1 LC42H01909P1 BRACKET
1 ZD12P02900 O-RING (Part of YN42H02582P1), ID 28.70 ± 0.29 x OD 35mm, Not Shown
A6 4 YN42H02582P1 PLUG 1″ PFx31mm Long (Incls. O-Ring ZD12P02900)
A5 2 LS42H01021DT HOSE 1380mm Long (54-21/64 in)
A4 1 LC42HU1019P1 HYD. TUBE Tube
A3 1 LC42HU1020P1 HYD. TUBE Tube
A2 1 LC42HU1018P1 HYD. TUBE Tube
A1 1 LC42HU1017P1 HYD. TUBE Tube

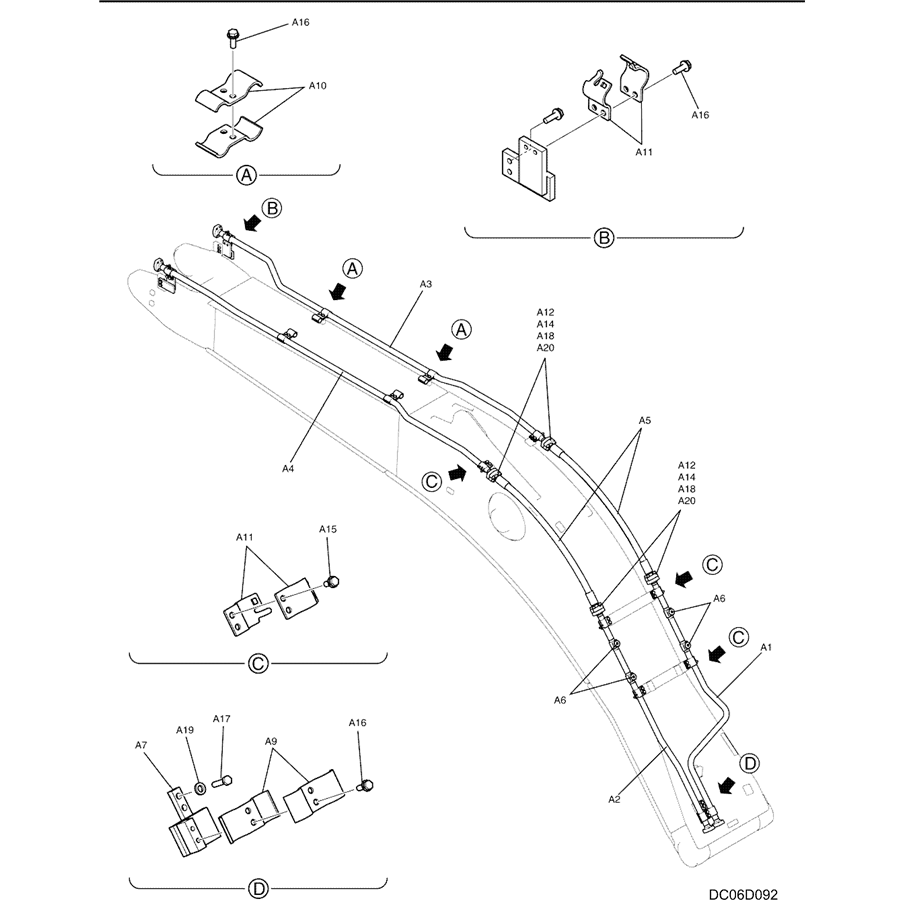

Mass Excavator Boom Hydraulic Lines (NIBBLER & BREAKER), LC42HU0008F1, Page 1 of 2
Mass Excavator Boom Hydraulic Lines (NIBBLER & BREAKER), LC42HU0006F1
