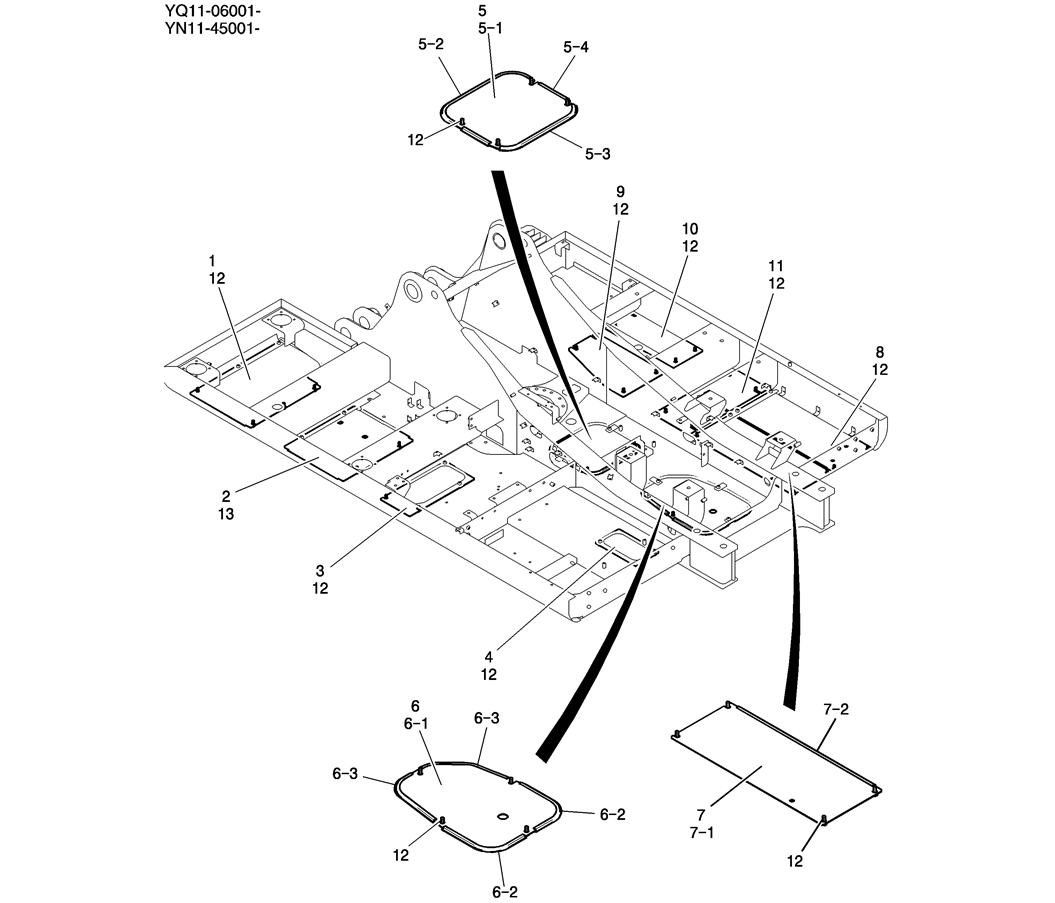

250-02-1 COVER ASSY, UNDER [HD (DISMANTLE)]

250-02-1 COVER ASSY, UNDER [HD (DISMANTLE)]-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals

13 4 ZM73C12035 BOLT Sems
12 42 ZM73C12030 BOLT Sems
11 1 YN24C01308P1 PLATE
10 1 YN24C01306P1 PLATE
9 1 YN24C01304P1 PLATE
8 1 YN24C01302P1 PLATE
7-2 1 LS21C01093DL TRIM PANEL
7-1 1 YN24C01300P1 PLATE
7 1 YN24C01334F1 PLATE
6-3 2 LS21C01093D4 TRIM
6-2 2 LS21C01093DJ TRIM PANEL
6-1 1 YN24C01298P1 PLATE
6 1 YN24C01333F1 PLATE
5-4 2 LS21C01093DH TRIM
5-3 1 LS21C01093D5 TRIM
5-2 1 LS21C01093DK TRIM PANEL Trim
5-1 1 YN24C01296P1 PLATE
4 1 YN24C01294P1 PLATE
3 1 LC24C01105P1 PLATE
2 1 YN24C01292P1 PLATE
1 1 YN24C01290P1 PLATE
AR YN24C00034F1 COVER ASSY Under
5 1 YN24C01332F1 PLATE
