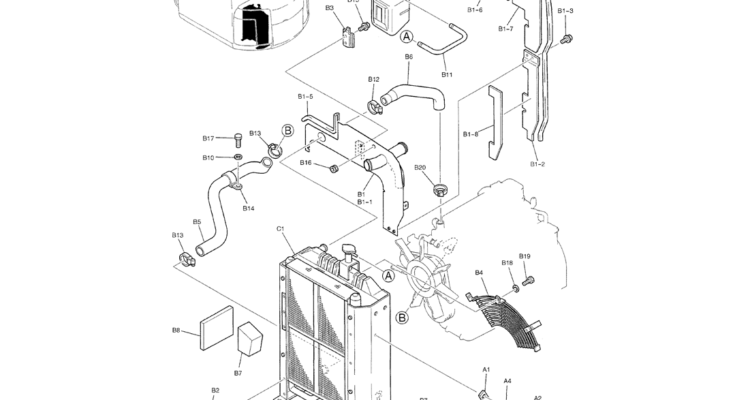

01-010 RADIATOR INSTAL-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals C1 1 YT05P00009F5 RADIATOR SEE FIGURE 01-012 B20 1 ZC16X05000 CLIP Clamp, Hose -- Min 44 x Max 57mm B19 3 ZS18C08016 SCREW M08x1.25x16mm B18 7…

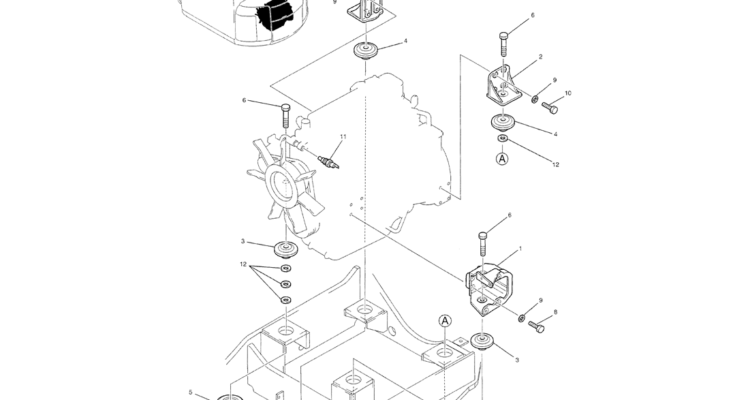

01-009 ENGINE INSTAL-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals 12 4 YW02P01005D1 SHIM (1.0) 11 1 YT52S00001P1 SENSOR Coolant Temperature (Thermo) 10 8 ZS18C10035 SCREW M10x1.50x35mm 9 12 ZW16H10000 WASHER ID 11 x OD 24 x…

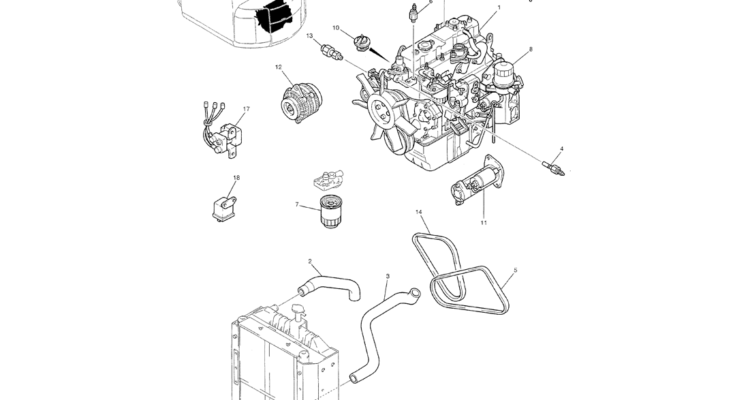

01-007 ENGINE ASSEMBLY-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals VI8944233140 GLOW PLUG ISUZU ENGINE PARTS 18 1 2451U340S4 GLOW RELAY VI1825530391 RELAY ISUZU ENGINE PARTS 17 1 YT02P00007S002 RELAY SAFETY RELAY VI8970161010 GASKET ISUZU ENGINE…

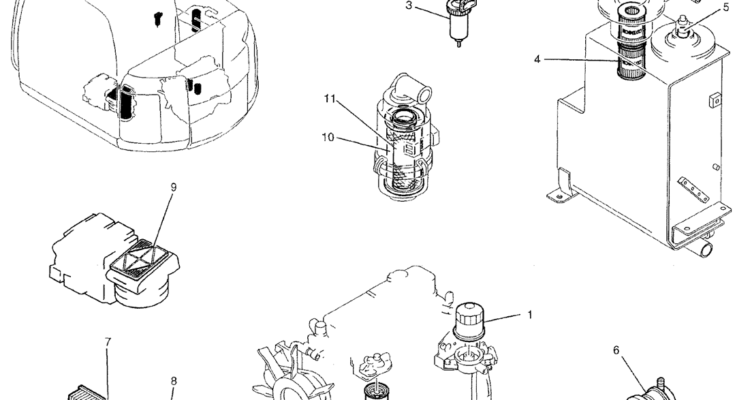

00-001 FILTER LIST-Kobelco SK70SR-1E SK70SR-2 SK70 Excavator Parts Number Electronic Catalog EPC Manuals 11 1 LE11P01016P1 FILTER AIR-CLEANER, ELEMENT (INNER) 10 1 LE11P00002S002 ELEMENT AIR-CLEANER, (OUTER) 9 1 YT20M00004S050 ELEMENT AIR-CON, (INNER) (not HEPA) 8 1 YT50V01001S002 CAB FILTER…
