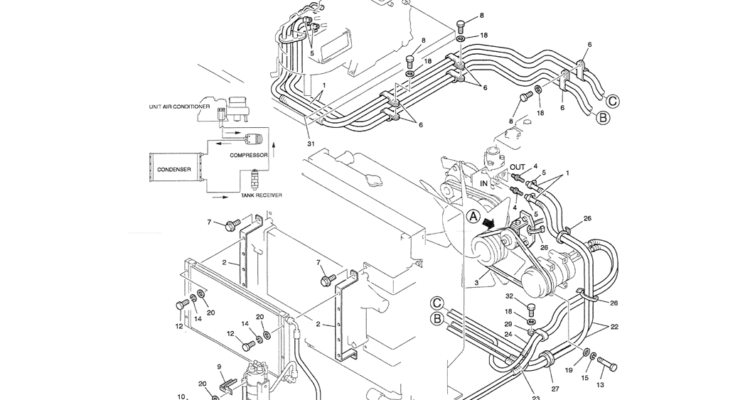

01-073 AIR CONDITIONER-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 32 1 ZS18C10020 SCREW M10x1.50x20mm 31 1 HX81X25045DX TUBE TUBE 30 1 YN20M01301P1 BRACKET BRACKET 29 1 2432R226D13 CLIP Clamp, Double -- ID 28 x 82mm…

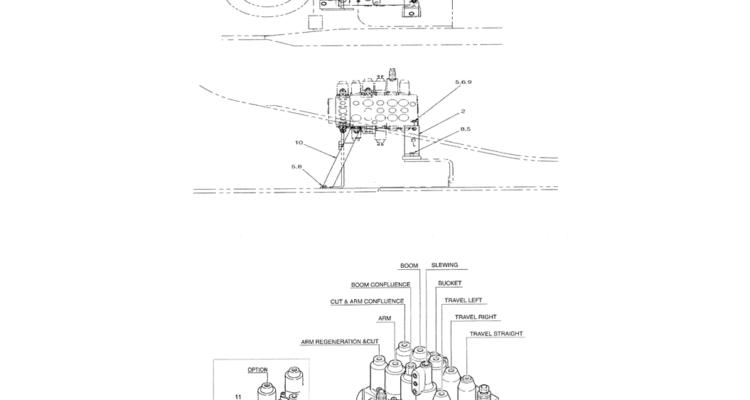

01-072 VALVE INSTALLATION-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 12 4 ZS23C12100 SCREW M12x1.75x100mm 11 1 YN30V00084F1 CONTROL VALVE VALVE CONTROL YN64H00143F1 VALVE VELVE SECTION CONTROL (N&B) 10 1 YN64H01214P1 U-BRACKET BRACKET 8 4 ZS18C12040…
01-071 FLASHING LAMP ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 13 1 NA NOT SERVICED Body, Right Hand 12 1 NA NOT SERVICED Body, Left Hand 11 4 YN80S00015S011 SCREW M06x40mm 10 2 YN80S00015S010 SCREW…

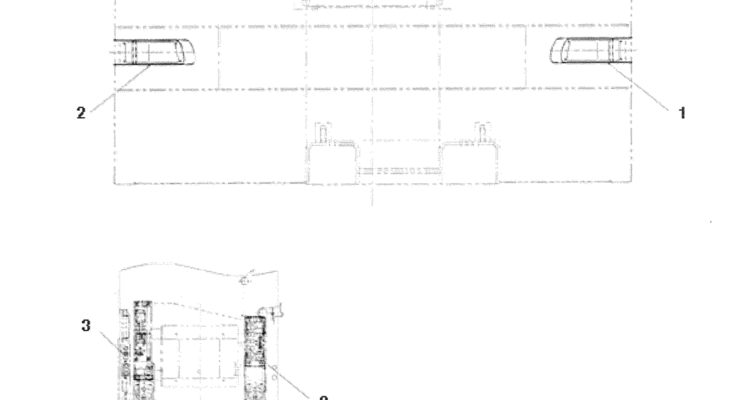

01-070 LAMP INSTALLATION-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 3 1 2479U1190F9 SWITCH 1 1 YM80S00001F2 LAMP Flashing -- See Figure 01-071 YM80E00003F1 Tail Lamp Installation 2 1 YM80S00001F1 LAMP Flashing -- See Figure 01-071…
01-069(07) UPPER HARNESS ASSEMBLY (LOGGER OPTION) -SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals OP YN14EU1001D4 HARNESS HARNESS EXTENTION (L=6000mm) (10ft. Riser), Remarks: See 266-10-5 OP YN14EU1001D3 HARNESS HARNESS EXTENTION (L=4800mm) (6ft. Riser), Remarks: See 266-10-5…
