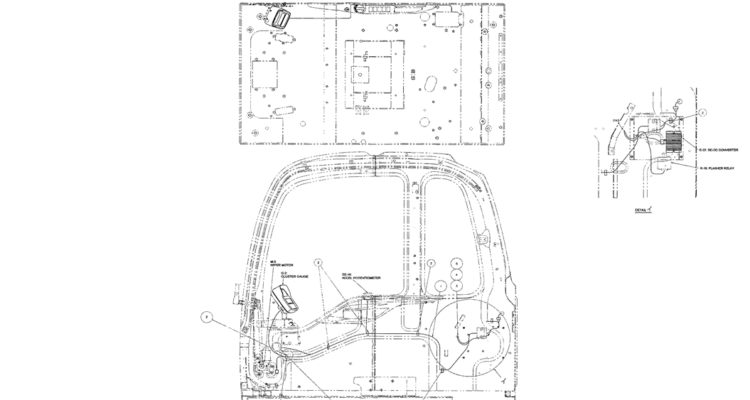

01-064(01) HARNESS ASSEMBLY (CAB)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 1 ZW16X06000 WASHER ID 06 x OD 12.5 x Th 1.6mm 3 1 ZS18C06016 SCREW M06x1.0x16mm 2 6 YN03E01001D5 CLIP 195mm Long (7-43/64 in)…

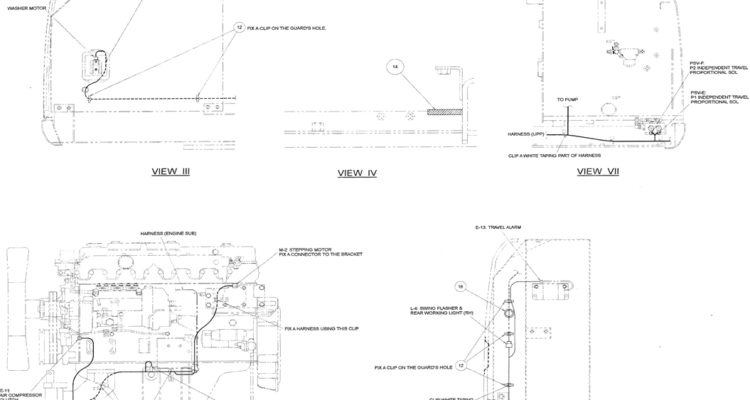

01-063(06) UPPER HARNESS ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals NSS NOT SERVICED SEPARATELY SCHEMATIC, ELECTRICAL, Remarks: (NOT SERVICABLE) 21 1 ZN18C10008 NUT M10x1.50mm 20 1 ZW16X10000 WASHER ID 10 x OD 21 x Th…

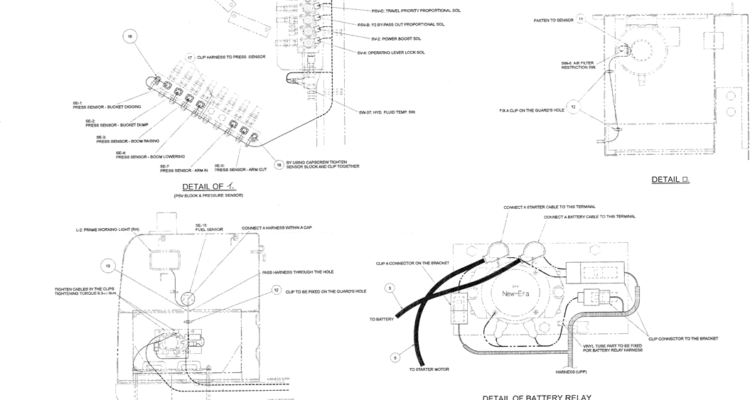

01-063(05) UPPER HARNESS ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals NSS NOT SERVICED SEPARATELY SCHEMATIC, ELECTRICAL, Remarks: (NOT SERVICABLE) 21 1 ZN18C10008 NUT M10x1.50mm 20 1 ZW16X10000 WASHER ID 10 x OD 21 x Th…

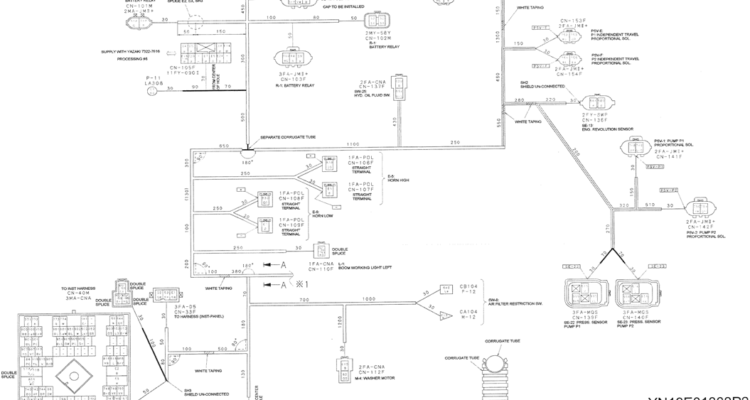

01-063(04) UPPER HARNESS ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals NSS NOT SERVICED SEPARATELY SCHEMATIC, ELECTRICAL, Remarks: (NOT SERVICABLE) 21 1 ZN18C10008 NUT M10x1.50mm 20 1 ZW16X10000 WASHER ID 10 x OD 21 x Th…

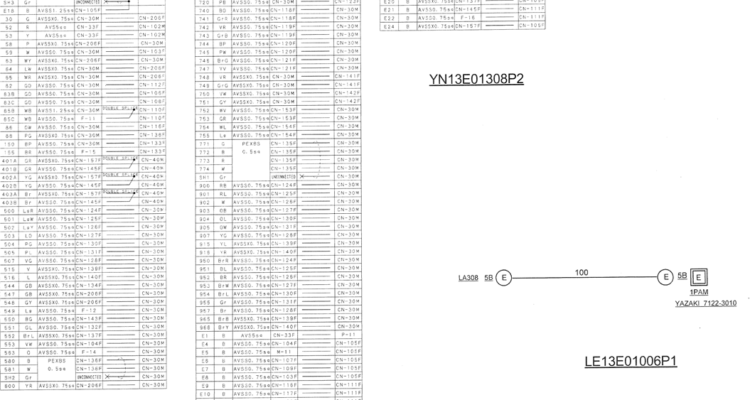

01-063(03) UPPER HARNESS ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals NSS NOT SERVICED SEPARATELY SCHEMATIC, ELECTRICAL, Remarks: (NOT SERVICABLE) 21 1 ZN18C10008 NUT M10x1.50mm 20 1 ZW16X10000 WASHER ID 10 x OD 21 x Th…

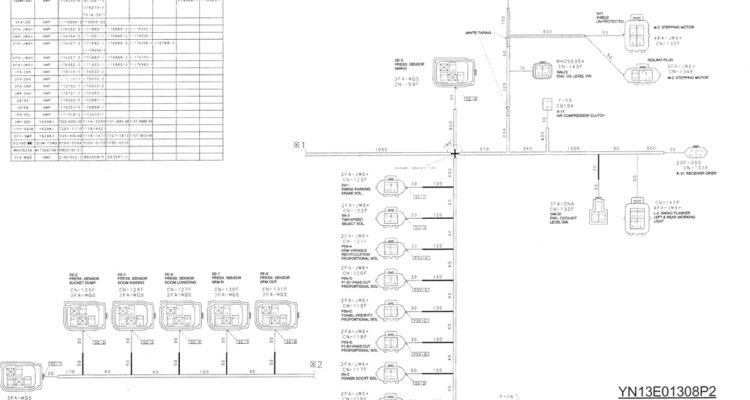

01-063(02) UPPER HARNESS ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals NSS NOT SERVICED SEPARATELY SCHEMATIC, ELECTRICAL, Remarks: (NOT SERVICABLE) 21 1 ZN18C10008 NUT M10x1.50mm 20 1 ZW16X10000 WASHER ID 10 x OD 21 x Th…

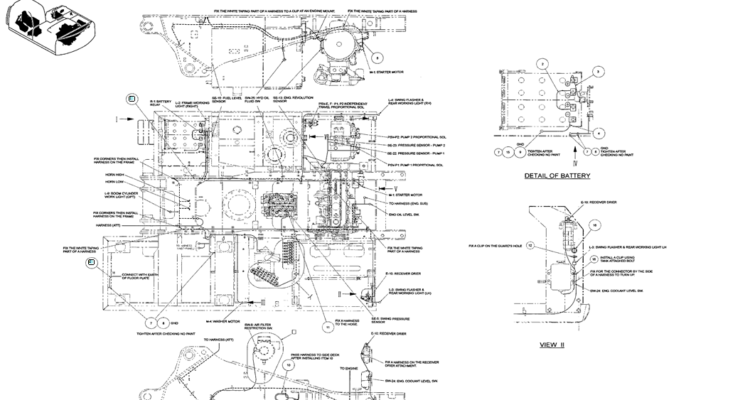

01-063(01) UPPER HARNESS ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals NSS NOT SERVICED SEPARATELY SCHEMATIC, ELECTRICAL, Remarks: (NOT SERVICABLE) 21 1 ZN18C10008 NUT M10x1.50mm 20 1 ZW16X10000 WASHER ID 10 x OD 21 x Th…

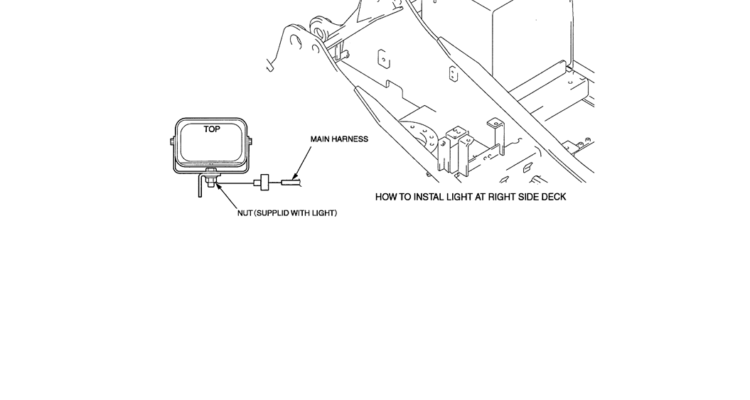

01-062 LIGHT INSTALL-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals YN80E00025F1 LIGHT INSTL, UPPER 1 1 2456R248 LIGHT Kobelco Part Number Information parts manager pro is the electronic parts Catalog Kobelco EPC…

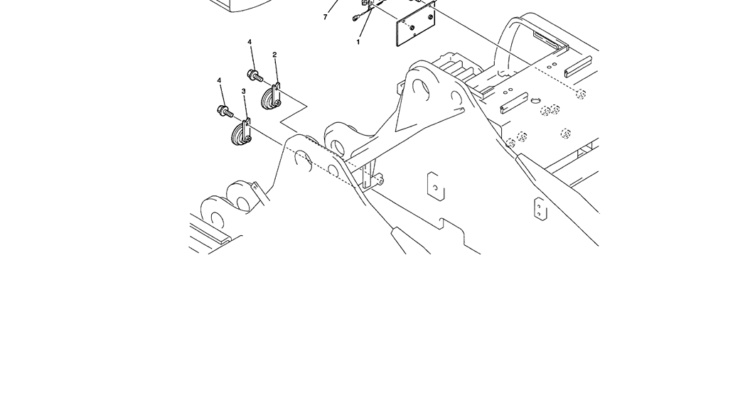

01-061 UPPER ELECTRICAL ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 7 2 ZM22C08030 BOLT M08x1.25x30mm (Incls. Washer & Lockwasher) 6 1 YN03E01014P1 BRACKET 5 3 ZM22C08020 BOLT M08x1.25x20mm (Incls. Washer & Lockwasher) 3 1 2479U1009F2…

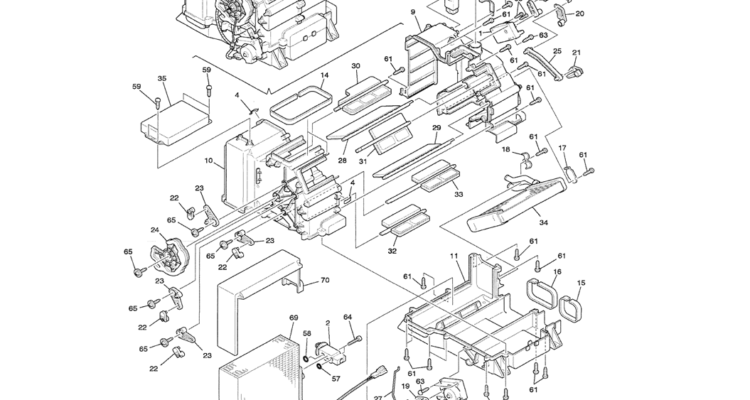

01-060(02) AIR CONDITIONER ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals K 1 YT20M00004R100 REPAIR KIT CONSISTS OF ITEM 69, 70, 71 71 1 YT20M00004S070 ADAPTER ADIABATIC 70 1 YT20M00004S069 ADAPTER ADIABATIC 69 1 YT20M00004S068 EVAPORATOR…
