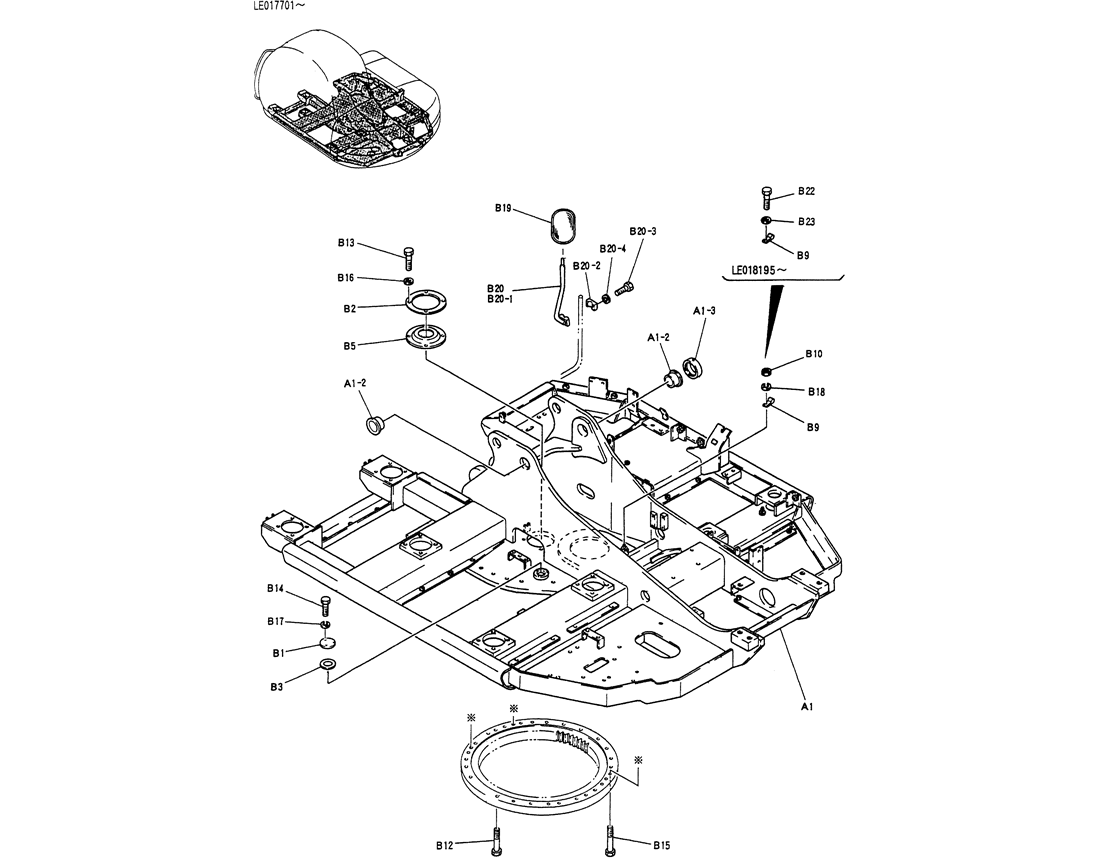

01-003 FRAME ASSY, UPP

01-003 FRAME ASSY, UPP-Kobelco SK60-3 SK60-5 SK60 Excavator Parts Number Electronic Catalog EPC Manuals

B23 1 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm, ASN LE018195
B22 1 ZS18C10020 SCREW M10x1.50x20mm, ASN LE018195
B20-4 2 ZW26X08000 WASHER Lock — ID 08 x OD 15 x Th 2.0mm
B20-3 2 ZS18C08045 SCREW M08x1.25x45mm
B20-2 1 2432T4254 CLAMP
B20-1 1 YW52F01061P1 STAY
B20 1 YW52F00015F1 STAY ASSY
B19 1 2456Z253 MIRROR BACK MIRROR
B18 1 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm, BTW LE017701 & LE018194
B17 3 ZW26X06000 LOCK WASHER ID 06 x OD 07 x Th 1.5mm
B16 4 ZW16X08000 WASHER ID 08 x OD 17 x Th 1.6mm
B15 3 2420T3453D2 SCREW
B14 3 ZS18C06012 SCREW M06x1.0x12mm
B13 4 ZS18C08025 SCREW M08x1.25x25mm
B12 22 ZS13C16090 SCREW M16x2.0x90mm
B10 1 ZN18C10008 NUT M10x1.50mm, BTW LE017701 & LE018194
B9 1 2432R225D7 CLIP CLIP
B5 1 LE52F01026P1 COVER SEAL,DUST
B3 1 2416Z633 PACKING, RUBBER
B2 1 2414T1919 CATALOG COVER COVER
B1 1 2414T4675 COVER
AR LE52F00011F1 FRAME GROUP, UPP
A1-3 1 LE52F01001P2 BOSS
A1-2 2 LE52F01053P1 BUSHING
A1 1 LE52F00012P1 FRAME,UPP
FRAME ASSY, UPP
