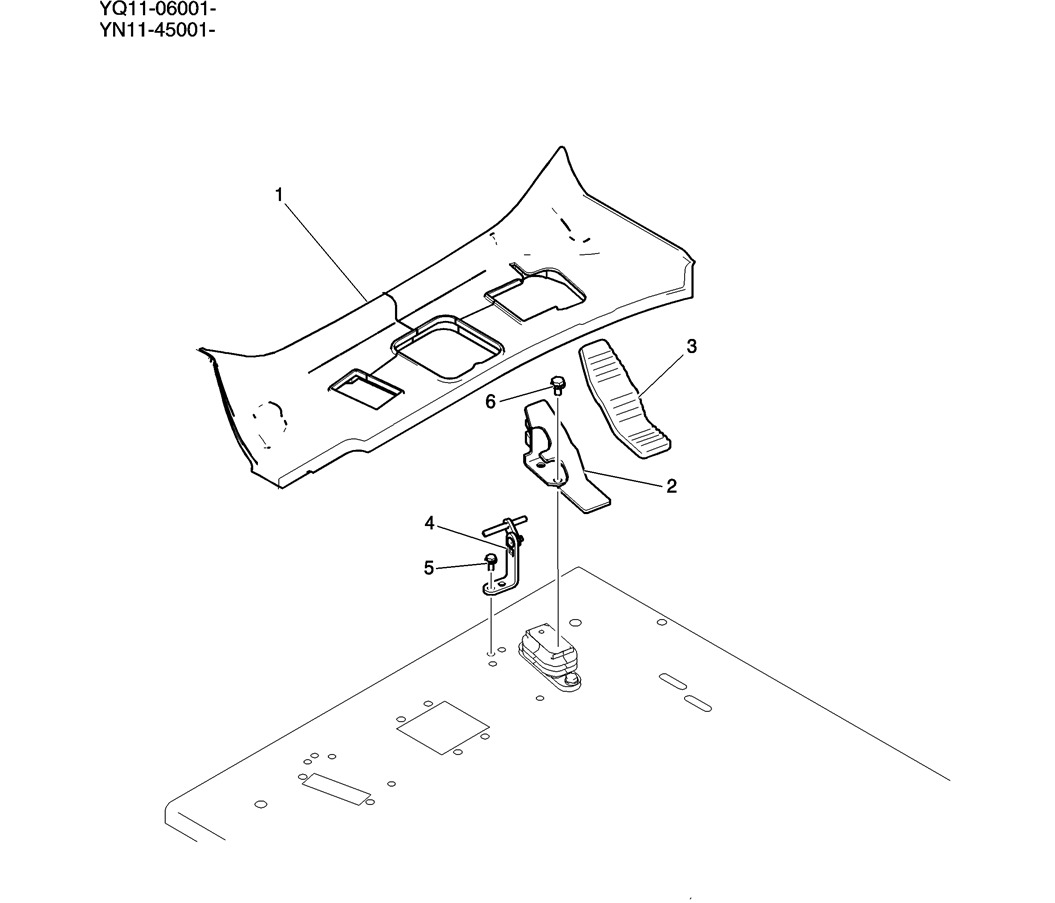

120-60-1 CONTROLS, OPERATORS (NIBBLER & BREAKER)
120-60-1 CONTROLS, OPERATORS (NIBBLER & BREAKER)-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals
6 2 YN55M00004F1 PEDAL Sems-Bolt
5 2 YN26M00066P1 FOOT BOARD Sems-Bolt
4 1 YN03M01852P1 PEDAL Lock Assy
3 1 YN03M01858P1 RUBBER PEDAL PAD
2 1 YN03M01684P1 BRACKET Pedal
1 1 ZM73C08020 BOLT Mat, Floor
1 ZM73C10020 BOLT Pedal Assy (See Fig No. 132)
1 YN25M01180F1 ARMREST Arm Rest (See Fig No. 132)
1 YN12P01163F1 CLAMP Clamp Assy (See Fig No. 129)
1 YN54E00006F1 Radio Instal (See Fig No. 138)
1 YN50M00013F1 CONTROL LEVER Lever Assy,Propel (See Fig No. 129)
1 YN03M01870F1 GRIP Assy (See Fig No. 129)
1 YN03M00138F1 CONTROL ox Assy (See Fig No. 127)
1 YN03M00137F1 Controls,Operators (See Fig No. 125)
AR YN03M00135F1 Controls,Operators (See Fig No. 120)
1 YN50E00018F1 Switch Instal (See Fig No. 138)
