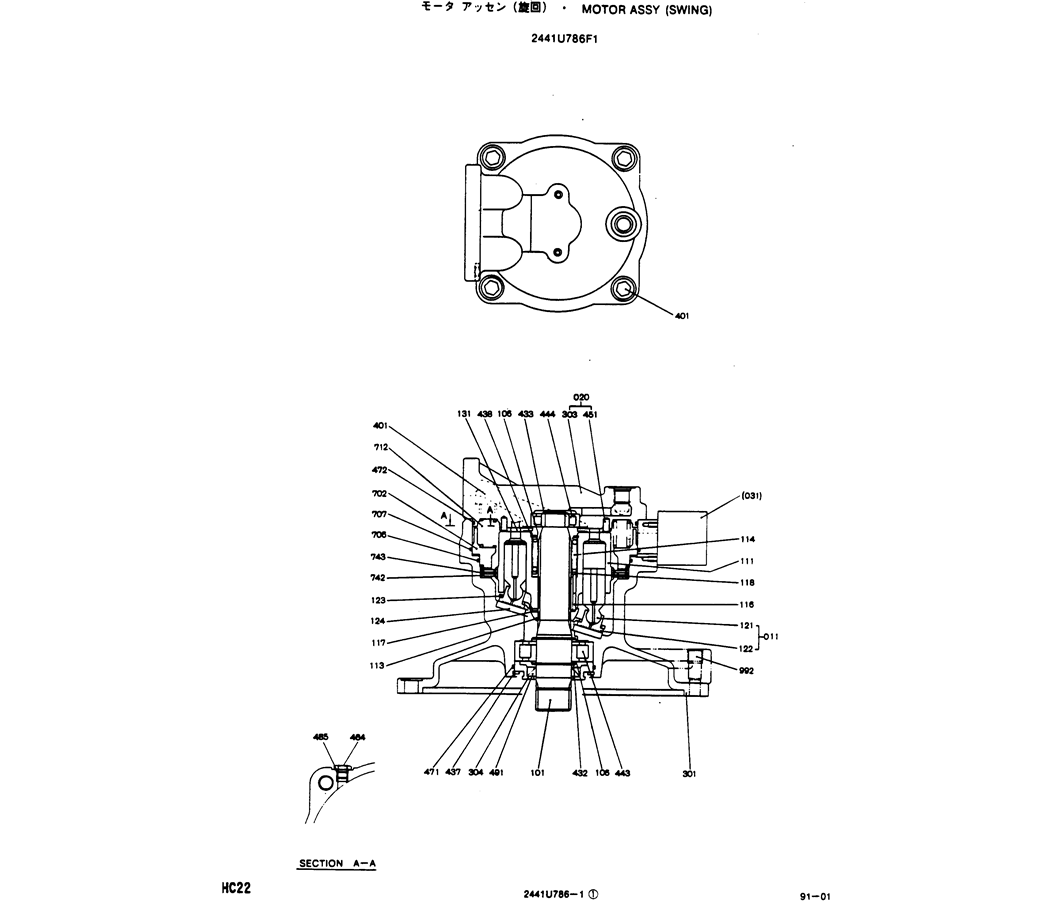

12-015 MOTOR ASSY, (SWING)
12-015 MOTOR ASSY, (SWING)-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals
992 2 ZE82T08000 PLUG 1/2″ PT
743 3 2441U785S743 PLATE SEPARATE
742 2 2441U785S742 PLATE FRICTION
712 20 2441U784S712 SPRING
707 1 2441U741S706 GASKET
706 1 2441U785S706 GASKET
702 1 2441U785S702 PISTON
491 1 2441U556S491 OIL SEAL
485 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
472 1 2415U188S725 O-RING
471 1 ZD12G10000 O-RING ID 99.40 ± 0.85 x OD 105mm
464 1 2441U667S466 PLUG 1/4″ PF
451 2 ZP26D08016 ROLL PIN
444 1 2441U784S444 ROLLER BEARING ROLLER
443 1 2441U736S443 BEARING ROLLER
438 1 ZR26X05800 SEAL RETAINER
437 1 ZR26X10000 RING
433 1 ZR16X02500 RING Retaining — ID 23.2 x OD 25 x Th 1.2mm
432 2 ZR16X04500 RING Retaining — ID 45 x OD 58 x Th 1.8mm
401 4 ZS23C20045 CAP Screw — M20x2.5x45mm
304 1 2441U785S304 COVER
303 1 NSS NOT SERVICED SEPARATELY COVER
301 1 2441U786S301 BOX
131 1 2441U785S131 PLATE VALVE
124 1 2441U785S124 PLATE
123 1 2441U785S123 PLATE
122 9 NSS NOT SERVICED SEPARATELY SHOE
121 9 NSS NOT SERVICED SEPARATELY PISTON
118 1 2441U785S118 SPACER
116 12 2441U785S116 ROD
114 1 2441U785S114 SPRING
113 1 2441U785S113 HUB
111 1 2441U785S111 CYLINDER
106 3 2441U785S106 SPACER
101 1 2441U786S101 SHAFT
031 1 2436U1283F1 PRESSURE RELIEF VALVE , SEE FIGURE 2436U1283-1
020 AR 2441U785S20 COVER CONSISTS OF ITEM 303, 451
011 AR 2441U785S11 PISTON CONSISTS OF ITEM 121, 122
AR 2441U786F1 MOTOR
117 1 2441U785S117 SPACER
