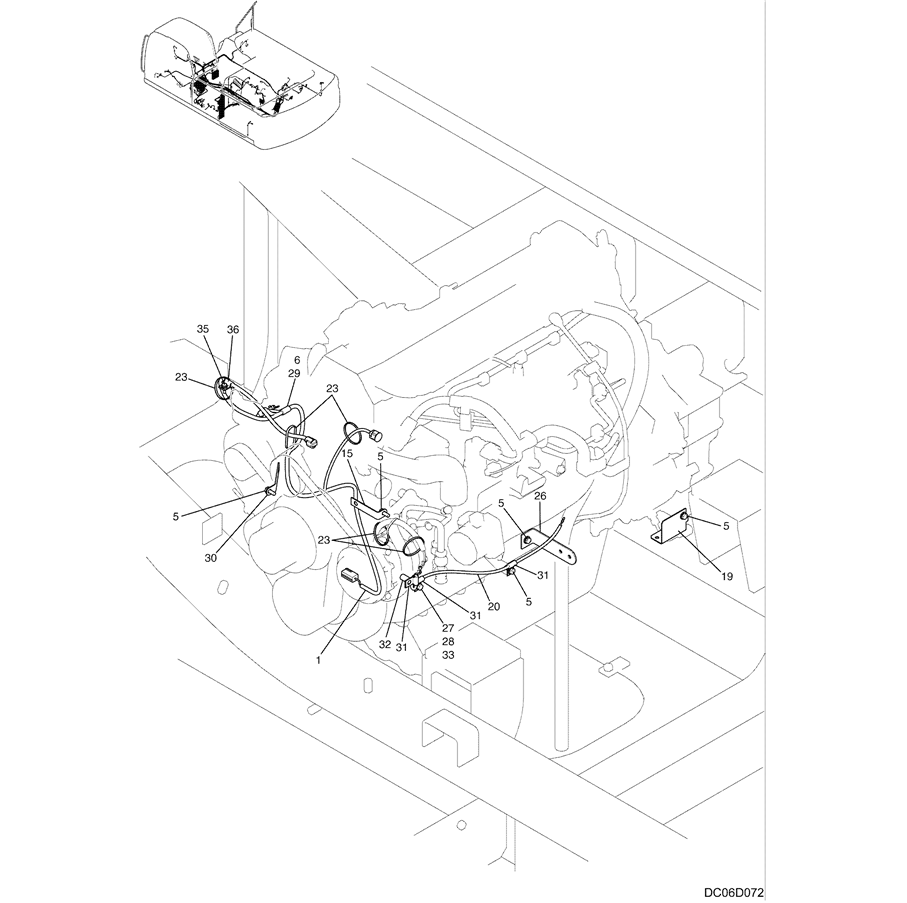

1.091(00) HARNESS ASSEMBLY ENGINE LC16E00010F1

1.091(00) HARNESS ASSEMBLY ENGINE LC16E00010F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

1.091(00) HARNESS ASSEMBLY ENGINE LC16E00010F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
1.091(00) HARNESS ASSEMBLY ENGINE LC16E00010F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

35 1 ZM73C10020 BOLT M10x1.50x20mm (Incls. Washer)
33 1 ZS18C08065 SCREW M08x1.25x65mm
31 4 EW02E01015D2 CLIP Ø06.4x18mm Long
29 1 EW02E01016D3 CLIP Clamp, Single — Ø08x16mm Long
28 1 ZW26X08000 WASHER Lock — ID 08 x OD 15 x Th 2.0mm
27 2 ZW16P08000 WASHER ID 08 x OD 17 x Th 1.6mm
26 1 LC16E01030P1 PLATE
23 3 PY01P01043D4 CLIP Wire Ties — 249mm Long
20 1 LC16E01028P1 WIRE HARNESS
19 1 LC16E01026P1 BRACKET
15 1 YN13E01365P1 PLATE
6 1 ZW16P06000 WASHER ID 06 x OD 11.5 x Th 1.6mm
5 4 ZM73C08020 BOLT M08x1.25x20mm (Incls. Washer)
32 1 ZY26X04050 TERMINAL SPACER
