1.006(00) RADIATOR INSTALLATION

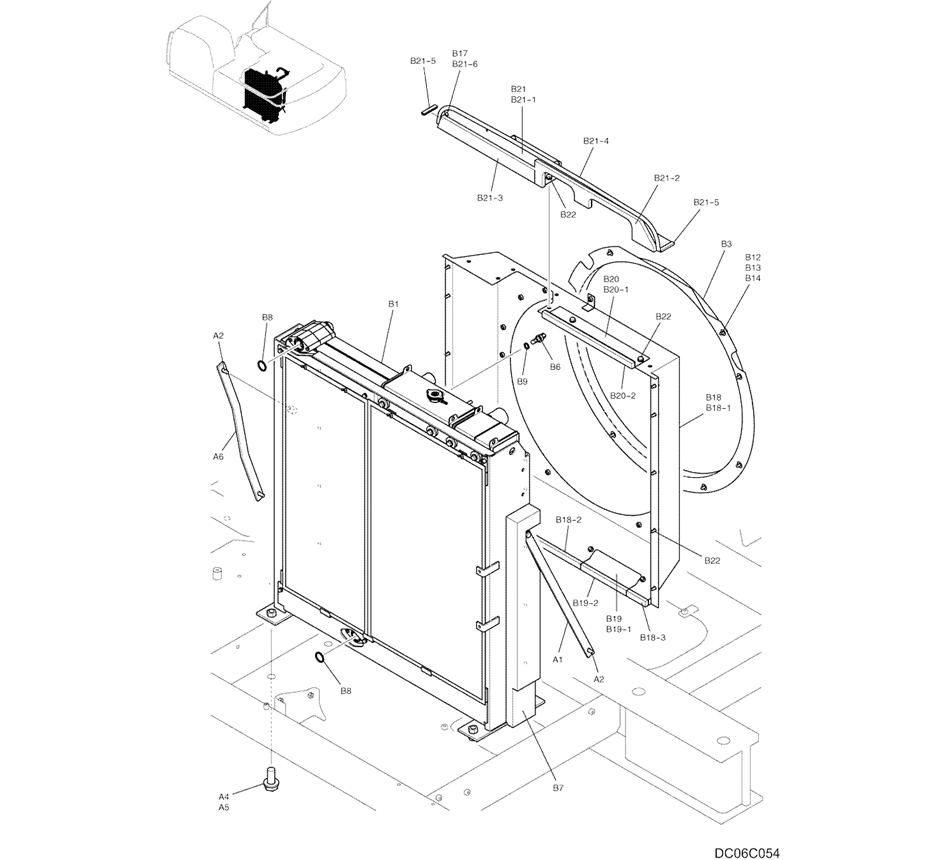

1.006(00) RADIATOR INSTALLATION, (LC05P00042F1)

1.006(00) RADIATOR INSTALLATION, (LC05P00042F1)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

1.006(00) RADIATOR INSTALLATION, (LC05P00042F1)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

, (LC05P00042F1)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals



B22 20 ZM73C10020 BOLT M10x1.50x20mm (Incls. Washer)
B21-6 1 YR20M01035P1 GROMMET
B21-5 2 YJ21C01146D7 STRIP Trim — 70mm Long (2-3/4 in)
B21-4 1 LS22C01024D6 SEAL Trim — 1315mm Long (51-49/64 in)
B21-3 1 LC05P01439P1 FOAM INSULATION
B21-2 1 LC05P01438P1 FOAM INSULATION
B21-1 1 LC05P01458P1 PLATE
B21 1 LC05P01457F1 PLATE ASSY
B20-2 1 LC05P01435P1 FOAM INSULATION
B20-1 1 LC05P01460P1 PLATE
B20 1 LC05P01459F1 PLATE ASSY
B19-2 1 LC05P01487P1 FOAM INSULATION
B19-1 1 LC05P01484P1 PLATE
B19 1 LC05P01488F1 PLATE ASSY
B18-3 1 LC05P01411P1 FOAM INSULATION
B18-2 1 LC05P01485P1 FOAM INSULATION
B18-1 1 LC05P01482P1 SHROUD
B18 1 LC05P01481F1 SHROUD ASSY
B17 1 YR20M01035P1 GROMMET
B14 7 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm
B13 7 2418T12346 WASHER ID 11 x OD 30 x Th 3.2mm
B12 7 ZS18C10020 SCREW M10x1.50x20mm
B8 2 YN05P01355P1 O-RING ID 44.7 ± 0.25 x OD 51.7mm
B7 1 LC05P01471P1 FOAM INSULATION
B3 1 LC05P01478P1 RETAINER RING
B1 1 LC05P00043F1 RADIATOR ASSEMBLY SEE 1.006.01
LC05P00037F1 RADIATOR ASSEMBLY
A6 1 LC05P01421P1 STAY STAY
A5 4 ZW16H20000 WASHER ID 21 x OD 40 x Th 4.5mm
A4 4 ZS18C20045 SCREW M20x2.50x45mm
A1 1 LC05P01380P1 STAY STAY
1 LC05P00035F1 RADIATOR INSTALLATION
A2 4 ZM73C12035 BOLT M12x1.75x35mm (Incls. Washer)
