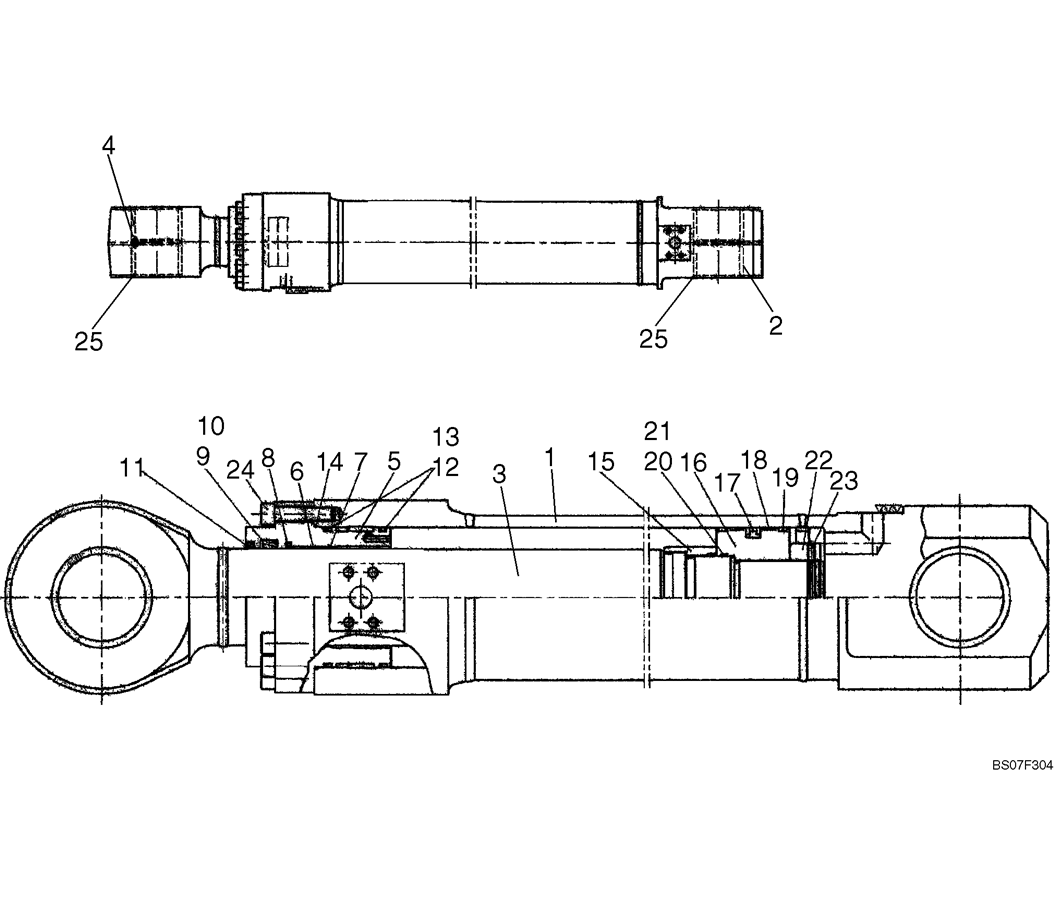

08-22(00) CYLINDER ASSEMBLY, BUCKET (LS01V00057F1)

08-22(00) CYLINDER ASSEMBLY, BUCKET (LS01V00057F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

08-22(00) CYLINDER ASSEMBLY, BUCKET (LS01V00057F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
08-22(00) CYLINDER ASSEMBLY, BUCKET (LS01V00057F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

K 1 LS01V00057R500 REPAIR KIT Kit, Repair (Contains Items 2, 3 & 25)
K 1 LS01V00057R400 REPAIR KIT Kit, Repair (Contains Items 1, 2 & 25)
K 1 LS01V00057R300 REPAIR KIT Kit, Repair (Contains Items 8 – 14 & 17 – 21)
K 1 LS01V00057R200 REPAIR KIT Kit, Repair (Contains Items 17 – 21)
K 1 LS01V00057R100 REPAIR KIT Kit, Repair (Contains Items 8 – 14)
25 4 LS01V00057S025 SEAL Seal
24 16 LS01V00055S024 SCREW Screw, Cap
23 1 LS01V00055S023 SCREW Screw, Set
22 1 LS01V00057S022 NUT Nut
21 2 LS01V00057S021 RING Ring, Back-Up
20 1 ZD12G09500 GASKET O-Ring — ID 94.40 ± 0.81 x OD 100mm
19 2 LS01V00057S019 RING Ring
18 2 LS01V00057S018 WEAR RING Ring, Wear
17 1 LS01V00057S017 SEAL Seal, Piston
16 1 LS01V00057S016 PISTON Piston
15 1 LS01V00057S015 RING Ring
14 1 LS01V00057S014 O-RING O-Ring
13 2 LS01V00057S013 RING Ring, Back-Up
12 2 ZD12G15000 O-RING ID 149.30 ± 1.19 x OD 160mm
11 1 LS01V00057S011 SEAL Seal, Dust
10 1 LS01V00057S010 RING Ring, Back-Up
9 1 LS01V00057S009 SEAL Seal
7 1 LS01V00057S007 RING Ring, Retainer
6 1 LS01V00057S006 BUSHING Bushing
5 1 LS01V00057S005 COVER Cover
3 1 NA NOT SERVICED Rod, Cylinder
2 4 LS01V01022P1 BUSHING Bushing
1 4 NA NOT SERVICED Tube, Cylinder
1 LS01V00057F1 CYLINDER Bucket Cylinder Assembly
8 1 LS01V00057S008 SEAL Seal
