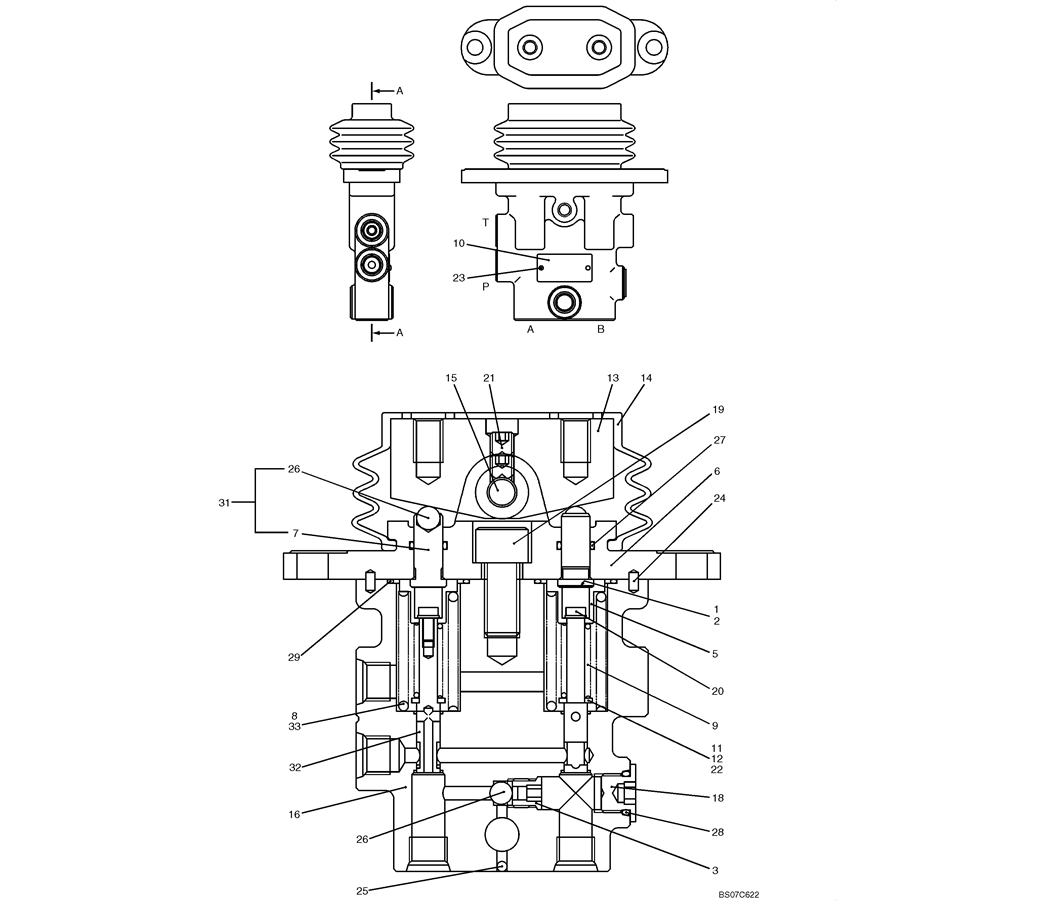

08-18(00) VALVE ASSEMBLY, PILOT (YN30V00080F1)
08-18(00) VALVE ASSEMBLY, PILOT (YN30V00080F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
K 1 YN30V00080R200 REPAIR KIT Contains Items 16X1, 25X1, 32X2
33
32 2 NA NOT SERVICED Spool
31 2 2436U1354S26 REPAIR KIT
29 2 YN30V00080S029 O-RING
28 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
27 2 ZD11P01000 O-RING ID 9.8 ± 0.17 x OD 13.6mm
26 3 2436U1487S37 BALL
25 1 NA NOT SERVICED Ball
24 2 2436U2888S24 PIN
23 2 YN30V00080S023 SCREW #2×4.8mm
22 2 2436U1354S16 WASHER
21 2 ZS83C08008 SCREW Set — M08x1.25x08mm
20 2 2436U1354S15 BOLT
19 1 ZS23C12025 SCREW M12x1.75x25mm
18 1 2436U2412S26 PLUG 1/4″PF
16 1 NA NOT SERVICED Body
15 1 YN30V00022S017 PIN
14 1 YN30V00022S016 BOOT
13 1 YN30V00022S015 CAM
12 1 YR30V00013S012 SHIM (0.1)
11 2 2436U1354S25 SHIM (0.2)
10 1 NA NOT SERVICED Name Plate
8 1 YR30V00004S012 SPRING
7 2 NA NOT SERVICED Piston
6 1 2436U1354S6 COVER
5 2 2436U1354S5 SLEEVE
3 1 2436U2755S4 SEAT
2 2 2436U1487S7 SHIM (0.2)
1 2 2436U1142S13 SHIM (0.1)
1 YN30V00080F1 VALVE Assembly, Pilot
9 2 YR30V00013S009 SPRING
