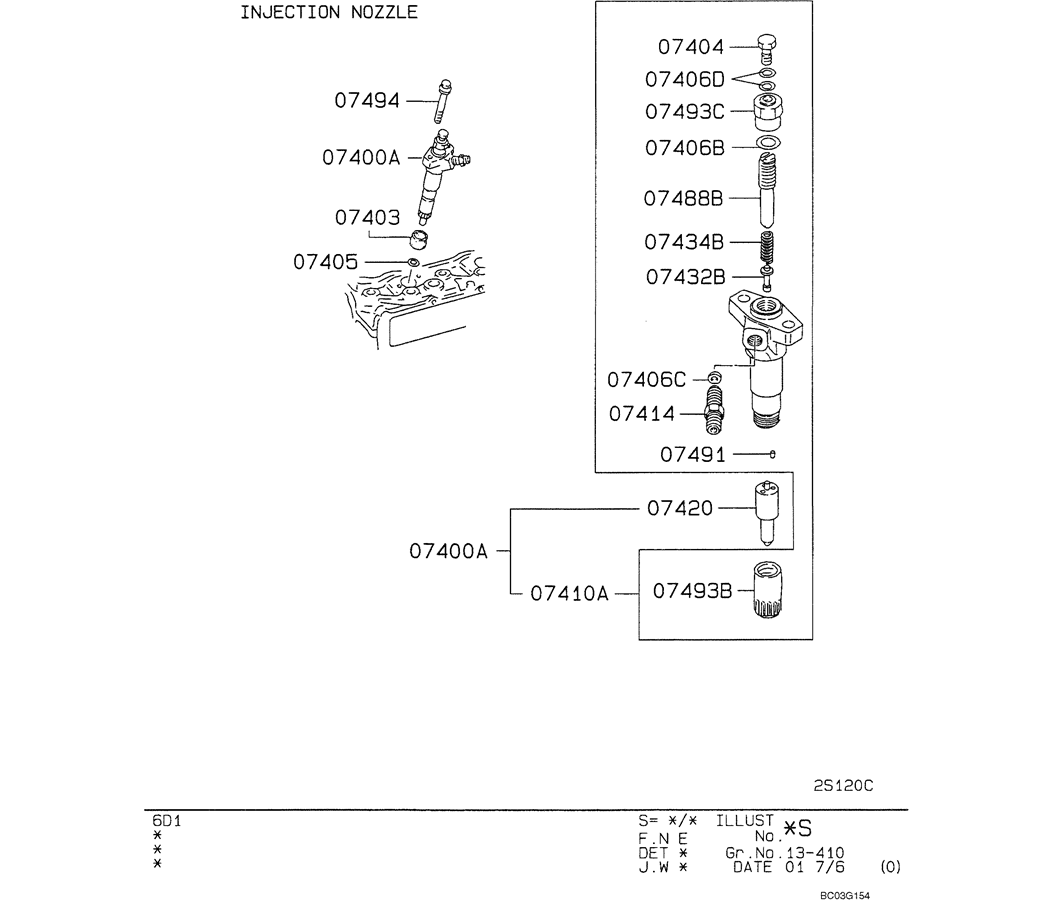

08-026(02) INJECTION PIPE AND NOZZLE

08-026(02) INJECTION PIPE AND NOZZLE-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

08-026(02) INJECTION PIPE AND NOZZLE-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
08-026(02) INJECTION PIPE AND NOZZLE-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

07499 5 VAMF240032 BOLT BOLT, FUEL INJECTION TUBE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: WASHER ASSEMBLED 6X32
07498J 1 VAMH020296 CLAMP CLAMP, FUEL INJECTION TUBE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: D=6X3
07498H 1 VAMH020295 CLAMP CLAMP, FUEL INJECTION TUBE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: D=6X3
07498C 3 VAMH020294 CLAMP CLAMP, FUEL INJECTION TUBE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: D=6X2
07498B 7 VAMH020293 CLAMP CLAMP, FUEL INJECTION TUBE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: D=6X2
07497 2 VAMF434103 NUT NUT, FUEL INJECTION TUBE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 6
07494 12 VAMH001516 BOLT BOLT, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 8X64
07493C 6 VAME705403 NUT NUT, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07493B 6 VAME748013 NUT NUT, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07491 12 VAME705407 PIN PIN, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07488B 6 VAME705408 SCREW SCREW, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07434B 6 VAME705409 SPRING SPRING, FUEL INJECTION NOZZLE HOLDER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07432B 6 VAME738087 PUSH ROD, FUEL INJECTION NOZZLE HOLDER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07429 1 VAME078566 INJECTION PIPE TUBE, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 6.35X2.0X470 NO. 6
07429 1 VAME440045 TUBE TUBE, INJECTION FUEL, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 6.35X2.0X470 NO. 5
07429 1 VAME440044 TUBE TUBE, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 6.35X2.0X470 NO. 4
07429 1 VAME440043 TUBE TUBE, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 6.35X2.0X470 NO. 3
07429 1 VAME440042 TUBE TUBE, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 6.35X2.0X470 NO. 2
07429 1 VAME440041 TUBE TUBE, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 6.35X2.0X470 NO. 1
07420 6 VAME748723 FUEL SYSTEM INJECTOR NOZZLE, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07414 6 VAME705426 HYD CONNECTOR JOINT, FUEL INJECTION NOZZLE HOLDER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07410A 6 VAME740838 NOZZLE HOLDER HOLDER ASSY, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07406D 12 VAME705389 PACKING GASKET, FUEL INJECTION NOZZLE INR, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07406C 6 VAME705425 GASKET GASKET, FUEL INJECTION NOZZLE INR, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07405 6 VA3096102300 O-RING GASKET, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07404 6 VAME705400 SCREW EYEBOLT, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07403 6 VAME036562 DUST CAP DUST SEAL, FUEL INJECTION NOZZLE HOLDER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07400A 6 VAME440071 NOZZLE NOZZLE & HOLDER ASSY, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: ZEXEL
07406B 6 VAME705391 GASKET GASKET, FUEL INJECTION NOZZLE INR, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
