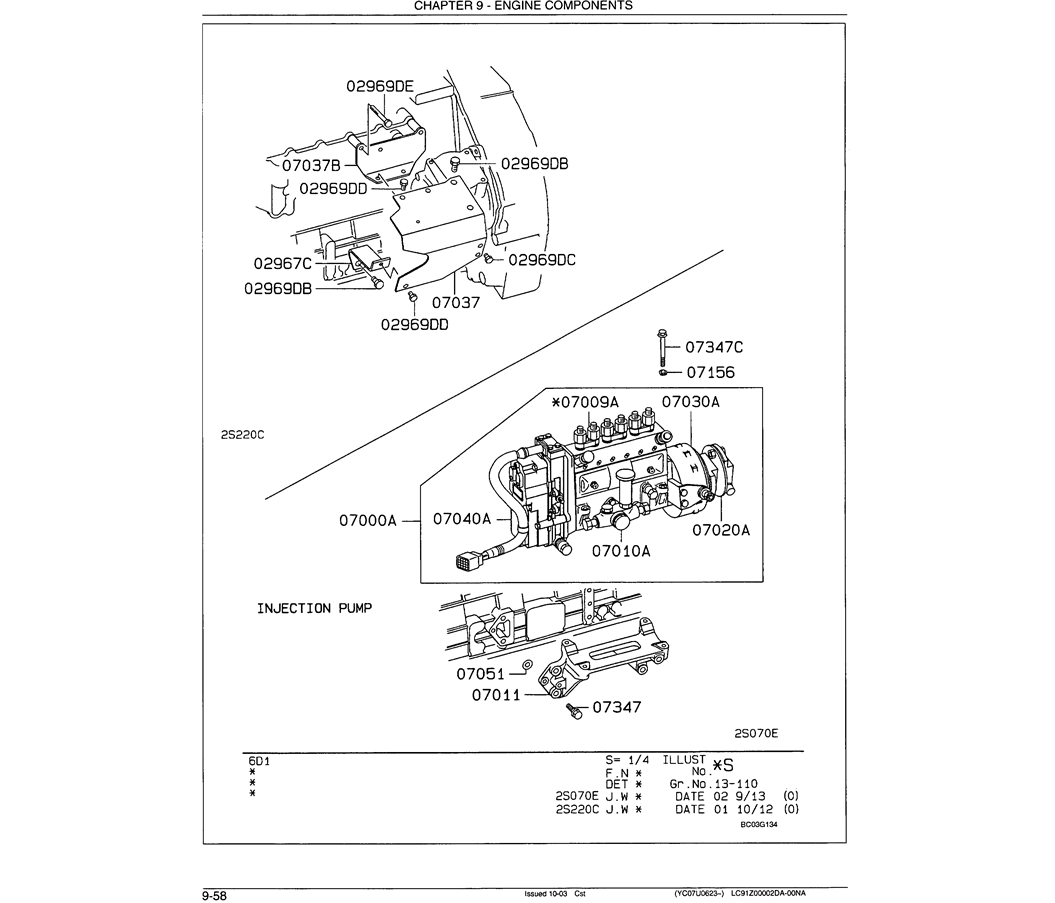

08-020(01) FUEL INJECTION PUMP Mitsubishi 6D16 Engine

08-020(01) FUEL INJECTION PUMP Mitsubishi 6D16 Engine-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

08-020(01) FUEL INJECTION PUMP Mitsubishi 6D16 Engine-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
08-020(01) FUEL INJECTION PUMP Mitsubishi 6D16 Engine-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

07397 1 VAME713319 O-RING O-RING, INJECTION PUMP DRIVE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07362 1 VAME077638 GEAR, INJECTION PUMP TIMER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: N=52
07347DB 2 VAMS146012 BOLT BOLT, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X40
07347CB 1 VAMS146006 BOLT BOLT, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X25
07347C 4 VAMF140240 BOLT BOLT, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 8X75
07347BE 4 VAME713384 BOLT BOLT, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 8X22
07347BB 1 VAMF140429 BOLT, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 8X30
07347 1 VAMS146012 BOLT BOLT, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X40
07347 2 VAMS146008 BOLT BOLT, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X30
07347 1 VAMS146029 BOLT, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X115
07339CB 1 VAME713247 NUT, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 22
07339BB 2 VAMF434105 NUT NUT, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10
07338B 1 VAMF520423 O-RING O-RING, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 135
07331B 2 VAMF406296 BOLT STUD, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 10X60
07156 4 VA3006101501 WASHER WASHER, INJECTION PUMP BODY, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: PLAIN, 8
07075 1 VAME713246 LOCK WASHER WASHER, INJECTION PUMP DRIVE CASE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07051 AR VA3016101200 SHIM SHIM, INJECTION PUMP BRACKET, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: T=0.1
07049 1 VAME713409 SLEEVE COLLAR, INJECTIN PUMP DRIVE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07047 1 VAME737092 SHAFT SHAFT, INJECTION PUMP DRIVE GEAR, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07040A 1 VAME755606 GOVERNOR GOVERNOR ASSY, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: ECG
07037B 1 VAME441174 COVER, INJECTION PUMP DRIVE SHAFT, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07037 1 VAME441171 COVER COVER, INJECTION PUMP DRIVE SHAFT, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07030A 1 VAME755607 TIMER TIMER ASSY, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07028 1 VAME713397 HOLDER HOLDER, INJECTION PUMP DRIVE CASE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07027 1 VAME476220 KEY, INJECTION PUMP CAMSHAFT DRIVE GEAR, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: WOODRUFF, 6X25
07024 1 VAME713408 OIL SEAL OIL SEAL, INJECTION PUMP DRIVE SHAFT, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07020A 1 VAME755444 COUPLING COUPLING ASSY, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07019B 1 VAME713403 COUPLING, INJECTION PUMP DRIVE CASE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07013A 1 VAME078549 CASE CASE ASSY, INJECTION PUMP DRIVE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07011 1 VAME075760 BRACKET, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07010A 1 VAME738673 PUMP PUMP ASSY, INJECTION PUMP FUEL FEED, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07009A 1 NSS NOT SERVICED SEPARATELY BODY ASSY, INJECTION PUMP, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 1 NS (ME755605)
07008 2 VAME713396 BEARING BEARING, INJECTION PUMP DRIVE GEAR, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07000A 1 VAME440455 PUMP PUMP ASSY, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 1 ZEXEL
02969DE 2 VAMF140239 BOLT, ENG SAFETY COVER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 8X70
02969DD 3 VAMF140223 BOLT BOLT, ENG SAFETY COVER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 8X16
02969DC 2 VAMF140223 BOLT BOLT, ENG SAFETY COVER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 8X16
02967C 1 VAME078881 COVER STAY, ENG SAFETY COVER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
02969DB 3 VAMS146004 BOLT BOLT, ENG SAFETY COVER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X20
